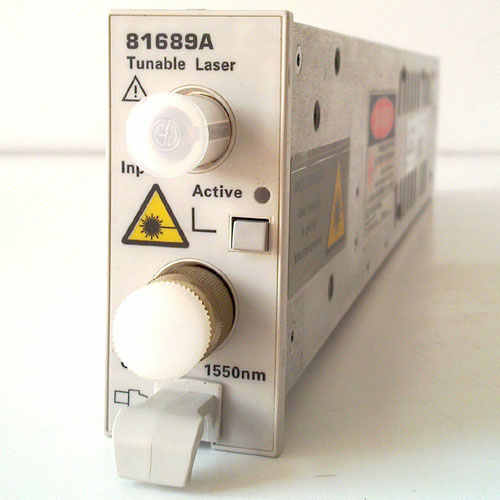

The HP Agilent 81689A compact tunable laser is specially designed for the C- Band. It allows you to add more flexibility to your test system for DWDM passive component test.
● Specially designed for the C-Band
● Saturating optical amplifiers for dense-WDM transmission systems
● Configuring multi-channel test beds for DWDM transmission systems
● Continuous sweep through full wavelength range
● Output equipped with either standard single-mode fiber or Panda type
polarization maintaining fiber
Key Specifications:
● Wavelength Range: 1525nm to 1570nm
● Output Power: >/= 6dBm
● Power Stability: ±0.03dB over 1 hour at constant temp
