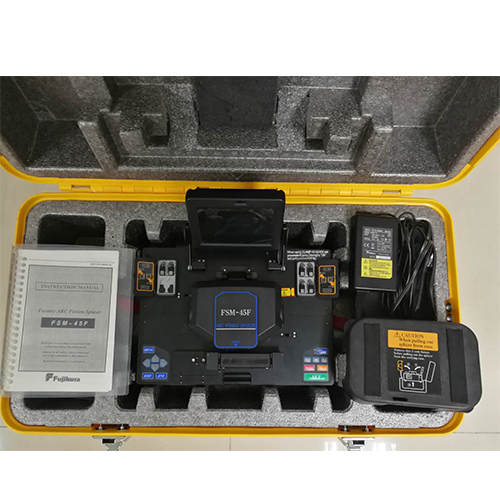

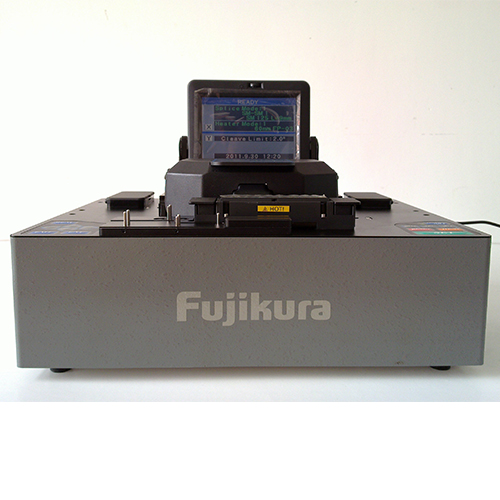

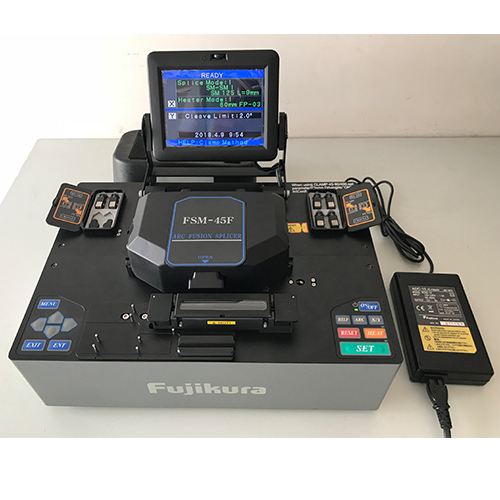

SPECIFICATIONS |
|
Applicable fibers |
SM, MM, NZDS, DS, CS, ED,Large diameter fiber, Reduced cladding fiber |
|
Fiber count |
Single |
|
Cladding diameter |
80mm to 250mm |
|
Coating diameter |
100mm to 1,000mm |
|
Fiber cleaved length |
8mm to 10mm (standard), 3mm to 5mm (short cleaved length) |
|
Actual average splice loss |
0.02dB with SM, 0.01dB with MM, 0.04dB with DS |
|
Splice time |
20sec with SM |
|
Return loss |
>>60dB |
|
Splicing modes |
40 user programmeble modes and
120 database area (factory predetermined setting) |
|
Splice loss estimate |
Available |
|
Attenuation splice function |
0.1dB to 25dB |
|
Storage of splice result |
The last 1,200 splices to be stored in the internal memory |
|
Fiber display |
X/Y, or X and Y simultaneously |
|
Magnification |
270x for single X or Y view, or 135x for X and Y view |
|
Viewing method |
Two CCD cameras and 5 inch TFT color LCD monitor |
|
Operating condition |
0 to 3,500m above sea level
0 to 95%RH and 0 to 40 degree C respectively |
|
Mechanical proof test |
2.45N |
|
Tube heater |
Built-in tube heater with 10 heating modes and 20 database area |
|
Tube heat time |
Typical 100sec with FP-03 protection sleeve
Typical 70sec with series of micro sleeves |
|
Applicable protection
sleeve length |
60mm, 40mm, and a series of micro sleeves |
|
Power supply |
Auto voltage selection from 100 to 240Va.c. with ADC-10 |
|
Terminals |
USB 1.1 (type B) and RS232C for PC communication
GP-IB port for power monitor feedback alignment
Video terminal RCA video jack / NTSC |
|
Wind protection |
Max. wind velocity of 5m/s |
|
Dimensions |
311W x 218D x 234H (mm) in operation |
|
Weight |
5.5kg without AC adapter |
