Home Fusion Splicer & Accessories >> Fusion Splicer >> Fujikura FSM-45F Specialty Fiber Fusion Splicer
Fusion Splicer

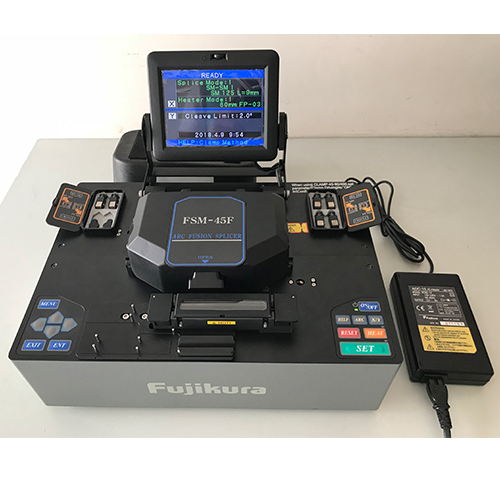

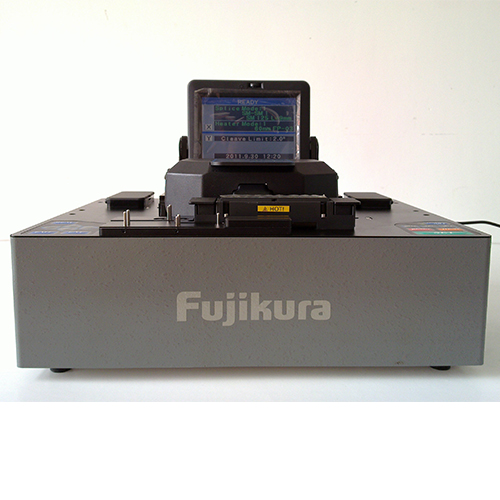

Fujikura FSM-45F Specialty Fiber Fusion Splicer
Manufacturer:
  Fujikura
Model:
  FSM-45F
Condition:
  Used
Availability:
  Yes
Price:
  $16,500.00
Qty:
Description:

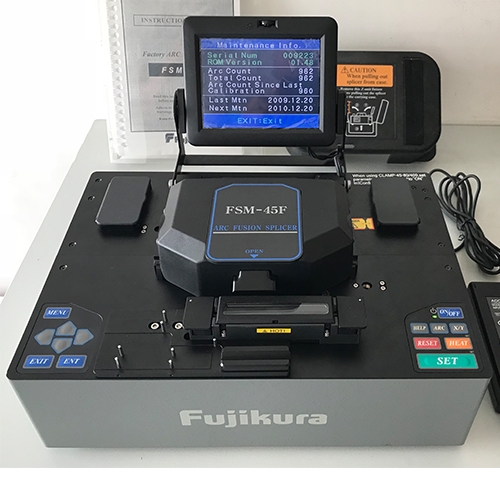

Very Clean like new,Serial Number:9223, Total Count:961 Splicer. 90 days warranty!

   Feature
The FSM-45F is designed for splicing of single optical fibers for factory use.

The FSM-45F has PAS (Profile Alignment System) technology for core-to-core fiber alignment. Some unique functions are available, which enable splicing of various fibers such as dissimilar fiber, large diameter fiber,attenuation splicing and short cleaved length splicing.
The fiber holder system, which is exclusively designed for FSM-45F, provides easy handling of fiber during a series of splicing processes.

Features:
● Core-to-core fiber alignment system with PAS technology.
● Universal Fiber Clamp for the fiber with the diameter of 80mm to 400mm
● V- groove Driving System for various kinds of splicing work.
● Short cleaved length splicing capability.
● Splice loss estimation function.
● Sweep arc function for various kinds of dissimilar fiber splicing.
● Power monitor feedback alignment capability with GP-IB interface.
● USB terminal and serial port for PC communication.

SPECIFICATIONS
Applicable fibers
SM, MM, NZDS, DS, CS, ED,Large diameter fiber, Reduced cladding fiber
 Fiber count
Single
 Cladding diameter
80mm to 400mm
Coating diameter
100mm to 1,000mm
Fiber cleaved length
 8mm to 10mm (standard), 3mm to 5mm (short cleaved length)
Actual average splice loss
0.02dB with SM, 0.01dB with MM, 0.04dB with DS
Splice time
20sec with SM
Return loss
>>60dB
Splicing modes
40 user programmeble modes and
120 database area (factory predetermined setting)
Splice loss estimate
Available
Attenuation splice function
0.1dB to 25dB
Storage of splice result
The last 1,200 splices to be stored in the internal memory
Fiber display
X/Y, or X and Y simultaneously
Magnification
270x for single X or Y view, or 135x for X and Y view
Viewing method
Two CCD cameras and 5 inch TFT color LCD monitor
Operating condition
0 to 3,500m above sea level
0 to 95%RH and 0 to 40 degree C respectively
Mechanical proof test
2.45N
Tube heater
Built-in tube heater with 10 heating modes and 20 database area
Tube heat time
Typical 100sec with FP-03 protection sleeve
Typical 70sec with series of micro sleeves
Applicable protection
sleeve length
60mm, 40mm, and a series of micro sleeves
Power supply
Auto voltage selection from 100 to 240Va.c. with ADC-10
Terminals
USB 1.1 (type B) and RS232C for PC communication
GP-IB port for power monitor feedback alignment
Video terminal RCA video jack / NTSC
Wind protection
Max. wind velocity of 5m/s
Dimensions
311W x 218D x 234H (mm) in operation
Weight
5.5kg without AC adapter

   Details

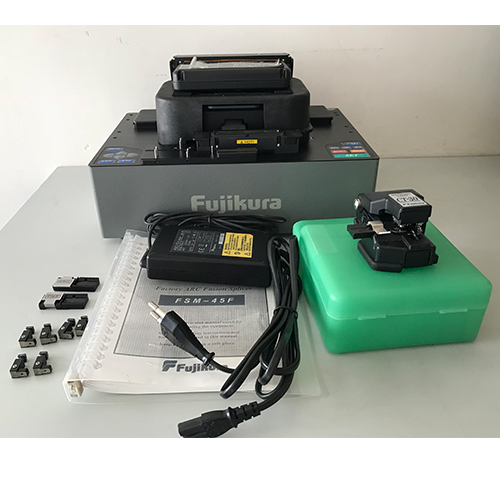

Including:

Description
Model No.
Q'ty
Arc fusion splicer
FSM-45F
1pc
Fiber holder
FH-40-250
1pair
Fiber clamp
CLAMP 400-80um
1pair
Fiber clamp
CLAMP 125um
1pair
Fiber clamp
CLAMP 250um
1pair
Fiber clamp
CLAMP 400um
1pair
Spare electrode
ELCT1-25
1pair
Fiber cleaver
CT-30
1pc
AC adapter
ADC-10
1pc
AC power cord
ACC-08~12
1pc
Top plate rubber cap
CAP-01
1pc
Instruction manual
-
1pc

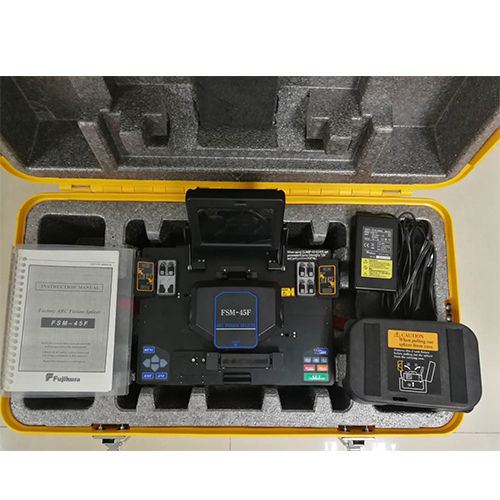

Carrying Case
--
1pc
