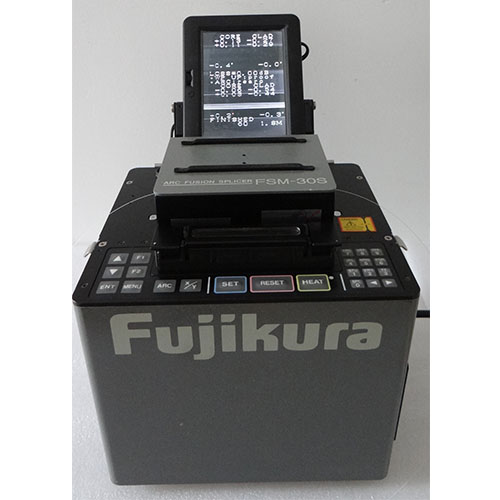

Fujikura FSM-30S Fusion Splicer
Manufacturer:
  Fujikura
Model:
  FSM-30S
Condition:
  Used
Availability:
  Contact us for availability
Price:
  $.00
Description:
.

   Feature

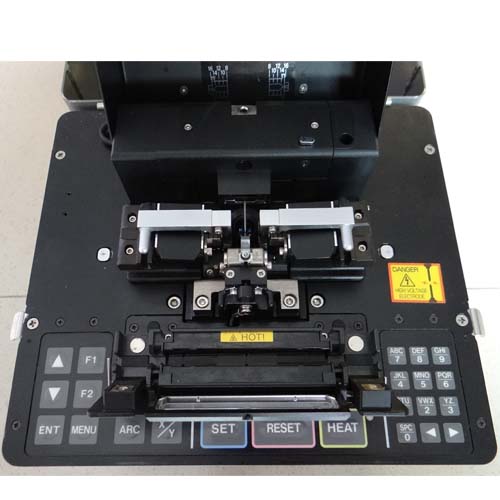

The Fujikura FSM-30S fusion splicer is an generation automatic core alignment splicer. The FSM-30S utilizes the direct core monitoring Profile Alignment System (PAS) to achieve ultra low loss and very accurate splice loss estimation, regardless of fiber quality. While smaller and lighter than previous models, the FSM-30S has increased capabilities and more operating modes. The FSM-30S optical system and microprocessor automatically align the fibers and inspect cleave quality. By using the Eccentricity Correction Function (ECF), the splicer determines the fiber core/cladding eccentricity and automatically compensates for in order to assure precise core alignment of the completed splice. The field proven performance and reliability of Fujikura core alignment PAS splicers are improved with the new FSM-30S.

Features and Benefits:
● Automatic core-to-core low loss splicing regardless of fiber quality or age.
● Automatic compensation for atmospheric pressure, temperature and humidity variation.
● Arc power is optimized automatically, splice-by-splice, by special arc power analysis software.
● Splicing modes added for cutoff wavelength shifted (CS) fiber in addition to SM,DS and MM fiber.
● Built-in tube heater has programmable sleeve length and heating profile.
● Operating modes provided to create an in-line attenuator
● Mode field diameter compensation program(i.e., to splice Erbium-doped fiber to SM)
● Menu driven for all functions including maintenance, tube heater programmability, and other options.
● Optional PCMCIA card slot to increase data storage.

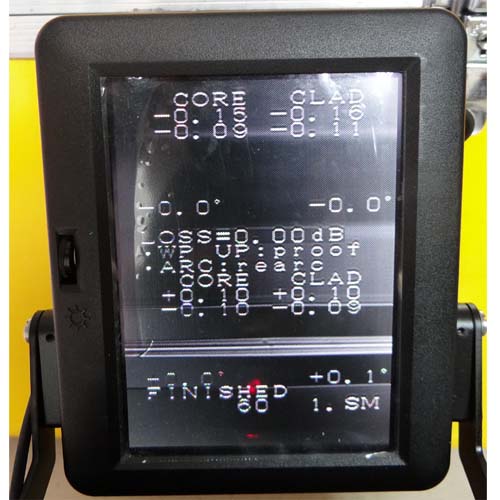

● The 5” LCD monitor provides excellent visibility even in bright sunlight

Specifications:
Fiber Splicing Capability
SM, MM, NZ-DS(non–zero dispersion-shifted), DS,CS(cutoff shifted), Erbium Doped fiber
Splice Loss
0.02dB with SM, 0.01dB with MM, 0.03dB with NZ-DS
Return Loss
60dB
Cleaved Fiber End Angle Alarm
Programmable up to 5º
Splice Sleeve Compatibility
Both 60mm and 40mm sleeves, as well as micro sleeves
Altitude Compensation Function
Fully automatic up to 3500 meter (11500 feet)
Temperature & Humidity Compensation
Fully automatic
Viewing Method
CCD Camera with high resolution
5" LCD monitor with excellent viewability in direct sunlight
Operating Temperature
-10℃ to +50 ℃
Storage Temperature
-40 ℃ to +80 ℃
Power Supply
85 to 265 VAC (50/60 Hz) & 10 TO 15 VDC
Dimensions (W x D x H)
210mm x 187mm x 173mm
Weight
8.0KG (17.6 lbs)
Attenuation Capability
Programmable from 1dB up to 15dB
Splice Date Storage
100-splice data sets with internal memory
   Details

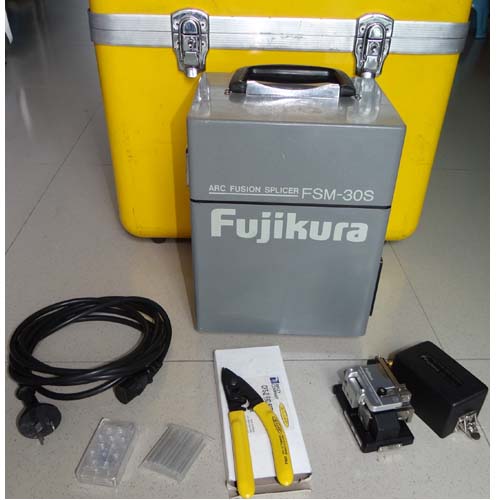

Used Fujikura FSM-30S core alignment fusion splicer kit including:

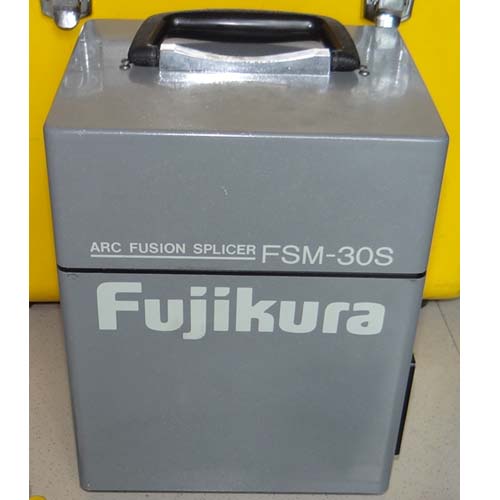

a)  FSM-30S main body - 1 pc;
b)  AC power cord Model: ACC-XX - 1 pc;
c)  Spare electrode Model: ELCT1-25 -2 pairs;
d)  Yellow carrying case  - 1pc;
e)  High precision fiber cleaver Model:CT-04B - 1 pc;
f)  Top cover -1pc
g)  Miller Fiber Stripper Model:CFS-2- 1 pc
