Home Optical Laser Source >> HP/Agilent 81689A-Opt 021 Compact Tunable Laser Source
Optical Laser Source

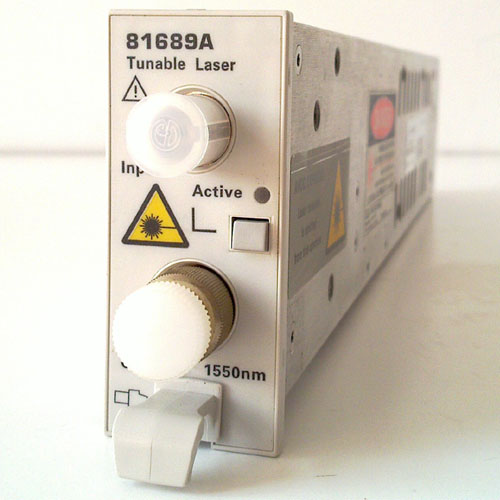

HP/Agilent 81689A-Opt 021 Compact Tunable Laser Source
Manufacturer:
  HP/Agilent
Model:
  81689A
Condition:
  Used
Availability:
  Contact us for availability
Price:
  $.00
Qty:
Description:

   Feature
The Agilent 81689A compact tunable laser is specially designed for the C- Band. It allows you to add more flexibility to your test system for DWDM passive component test.

● Specially designed for the C-Band
● Saturating optical amplifiers for dense-WDM transmission systems
● Configuring multi-channel test beds for DWDM transmission systems
● Continuous sweep through full wavelength range
● Output equipped with either standard single-mode fiber or Panda type
    polarization maintaining fiber

Key Specifications:
● Wavelength Range: 1525nm to 1570nm
● Output Power: >/= 6dBm
● Power Stability: ±0.03dB over 1 hour at constant temp
●Wavelength Range:1525nm to 1570nm
● Absolute wavelength accuracy:±0.3nm
● Relative wavelength accuracy:±0.03nm
● Wavelength Repeatability:±0.05 nm
● Wavelength Stability: ±0.02nm
● Tuning Speed:< 10 s/ 50nm
● Output power: ≥6 dBm (1525~1575nm)
● Minimum output power:-3 dBm;
● Power Stability: ±0.03 dB, over 1 hour

   Details
