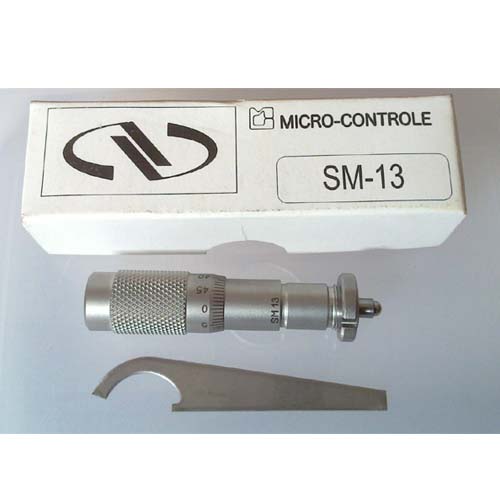

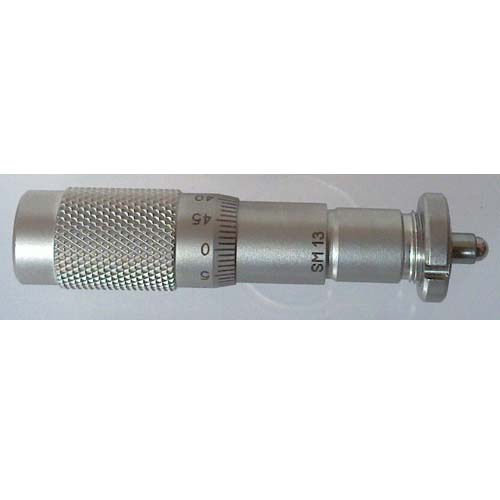

Newport SM-13 Vernier Micrometers
Manufacturer:
  Newport
Model:
  SM-13
Condition:
  New
Availability:
  Contact us for availability
Price:
  $70.00
Qty:
Description:

   Feature
The SM-13 Series vernier Micrometers, which are standard drives for most Newport stages, are ourmost popular manual actuators and are available in travel ranges from 6 to 50 mm. These micrometers have 0.5 mm pitch (50.8 TPI) threads and read directly in increments of 10 μm, with vernier reading of 1 μm. A left handed version is also available. Left-hand threaded versions are preferred when the micrometer is mounted on the moving platform of a stage so that turning the micrometer moves the stage in the direction of the micrometer travel. The SM-13 is compatible with 461/462 , 561/562, 423/433, 426/436, 460P, 460A, 401/406, RS and GON Series Stages as well as many modular optical mounts.

• Exceptionally smooth movement
• Vernier scale allows positioning to 1 μm increments
• Compatible with most Newport translation stages and mounts
• Available in travel ranges from 6 to 50 mm

   Details
Specifications:

Thread Pitch (mm)
0.5
Graduations (μm)
10
Vernier Graduations* (μm)
1
Sensitivity (μm)
1
※ SM-06 does not have a vernier scale.


Dimensions [in. (mm)]

Model
A
B
Min
B
Max
C
Min
C
Max
D
E
SM-13
SM-13LH
2.36 (59.9)
1.18 (30)
1.69 (43)
0.05 (1.3)
0.56 (14.2)
0.157 (4.0)
0.51 (12.9)
SM-25
3.83 (97.3)
1.98 (50.2)
2.96 (75.2)
0.26 (6.6)
1.23 (31.2)
0.276 (7.0)
0.625 (15.9)
SM-50
5.70 (144.8)
2.95 (74.9)
4.92 (125)
0.157 (4.0)
2.13 (54.1)
0.276 (7.0)
0.625 (15.9)
