Home Manual Linear Stages >> Newport 561D-XYZ Precision Fiber Optic Linear Stages
Manual Linear Stages

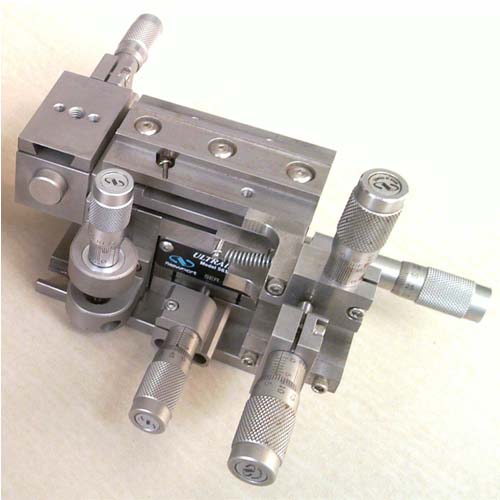

Newport 561D-XYZ Precision Fiber Optic Linear Stages
Manufacturer:
  Newport
Model:
  561D-XYZ
Condition:
  Used
Availability:
  2 pcs
Price:
  $1,650.00
Qty:
Description:
Newport 561D-XYZ+561-TILT+561-GON+SM13(5pcs),2pcs in stock.

   Feature
The M-561D-XYZ-LH ULTRAlign™ Metric Linear 3 Axis Stage features stainless steel construction for superior long-term stability, with thermally matched, hardened steel crossed roller bearings for unsurpassed performance in a left-handed version. The crossed roller bearings and precision-manufactured bearing reference surfaces provide exceptionally straight 6mm linear travel in X and Z, with angular deviation better than 100 µrad about any axis. The Y axis provides 13 mm of travel. We measure each stage on a six-axis interferometer to ensure performance. 561 Series Stages have been specifically designed for precision fiber alignment. A top-mounted rail permits precise and secure attachment of an array of fiber and device holders. A tilt platform can be attached for two-axis tip/tilt alignment of fibers to devices. And a goniometer is available to provide rotation about the fiber axis. With up to six degrees of freedom, high-performance ULTRAlign stages offer a superior fiber optic alignment solution. Three actuators are required and are not included.

● Stainless steel construction for the ultimate long-term stability
● Hardened steel, crossed roller bearings for high rigidity and precision motion
●Angular deviation better than 100 µrad about any axis — guaranteed
● Compatible with Newport manual and motorized actuators
● Right and left-handed configurations

   Details
