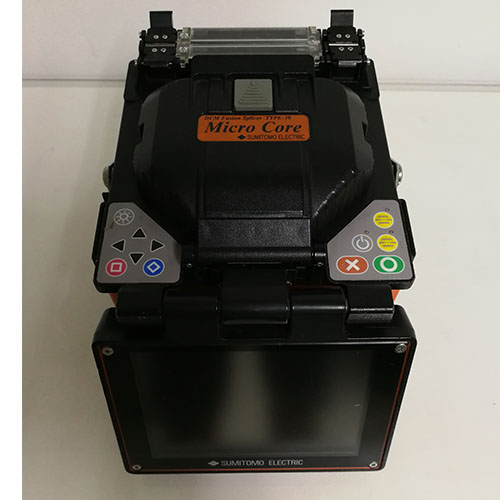

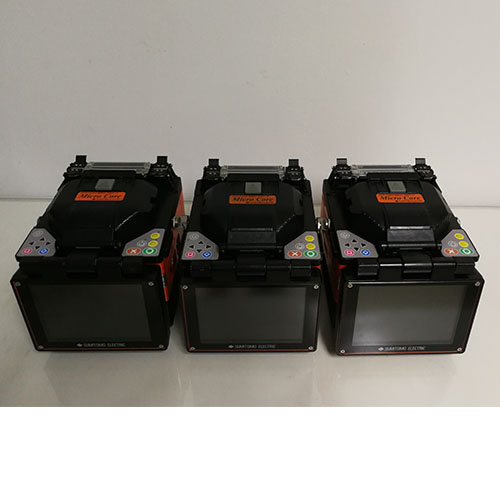

Sumitomo Type-39 Fusion Splicer
Manufacturer:
  Sumitomo
Model:
  Type-39
Condition:
  New
Availability:
  Contact us for availability
Price:
  $.00
Qty:
Description:
Sumitomo's Type- 39 FastCat™ Core Alignment Fusion splicer is the industry's first splicer to feature a Dual-Automatic Heater System featuring Auto Start Heater and Auto Start Splice functions — making the FastCat the fastest splicer available today....

   Feature

Features:
● RoHS Compliant
● Dual Independent Splice Protection Heaters
● 5.6” Switchable Color Monitor for Front to Back or Back to Front Operation
● Automatic Splice Start
● Automatic Heater Start
● Automatic Fiber Profiling Detection
● Complete Splice in Less than 40 Seconds
● Built-In LED for V-Groove Illumination
● User-Friendly Menu Selection System
● 24-Hour Technical Support via 888-SPLICER

TYPE-39
Optical fiber
requirements
Material
Silica Glass
Profile types
SMF,MMF,DSF,NZDSF
Fiber diameter
80 to 150 μm
Fiber coating diameter
0.25mm
Non-0.25mm
Cleave length
8~16mm
16mm
Standard
performance
Splice loss (typical)
SMF: 0.02dB, MMF:0.01dB, DSF:0.04 dB,
NZ-DSF: 0.04dB (With Sumitomo identical fibers)
Splice cycle time
Approx. 9 seconds (Quick Mode)
Heat cycle time
25 seconds 40mm sleeve,30 seconds 60mm sleeve
Splice & heat cycles per battery
Approx. 100 (with BU-66S), Approx. 200 (with BU-66L)
Programs
Splice programs
Max.48
Heating programs
Max.20
Functions
Loss estimation
Provided
Splice data storage
10000 splices
Proof test
1.96N(200gf)
Automatic arc test
Provided
V-groove white LED illumination
Provided
Size/Weight
Size
150(W) x 150(D) x 150(H) mm
Weight
2.9kg (including PS-66)
Monitor
5.6” TFT color monitor
Power supply
Power requirement
AC operation, Battery operation, Car battery operation (option)
Battery module
NiMH (10.5 ~15V)
AC Input
100V ~ 240V (50/60Hz)
DC Input
DC12V [for PC-V66 (option)]
Terminals
DC output terminal
DC-12V ( for JR-5/JR-5B)
USB port
USB 1.1 type-B
Video output terminal
RCA jack NTSC
Operating temperature
-10℃ ~ +50℃

   Details
Standard package
Part name
Part No.
Quantity
Main unit
Type-39
1pc
AC adapter and battery recharger
PS-66
1pc
Power cord
-
1pc
Battery Charger Cable
BCC-66
1pc
Cooling tray
-
1pc
Spare electrodes
ER-10
1 pair
Operation manual
-
1pc
Carrying case
-
1pc
Monitor cover
-
1pc

Optional accessories

Part name
Part No.
Description
Optional accessories
Battery module
BU-66S
Standard battery (NiMH)
BU-66L
Extended battery (NiMH)
Power supply module
PS-66
AC adapter and battery recharger
Car battery cable
PC-V66
For car battery operation
Electrodes
ER-10
Electrodes for TYPE-39/66
V-groove cleaning brush
Vgt-1

Other accessories
Dispenser
HR-3
Dispenser for alcohol
Fiber cleaver
FC-7R-S
Handheld fiber cleaver for single fiber
FC-6S-C
Fiber cleaver for single fiber
Jacket remover
JR-M03
Jacket remover for single fiber
Fiber protection sleeves
FPS-1
For single fiber/60mm, Diameter ¢4mm
FPS-40
For single fiber/40mm, Diameter ¢4mm
FPS-S-40
For single fiber/40mm, Diameter ¢3mm
