Home Optical Attenuator >> Keysight / Agilent 81570A Variable Optical Attenuator Module
Optical Attenuator

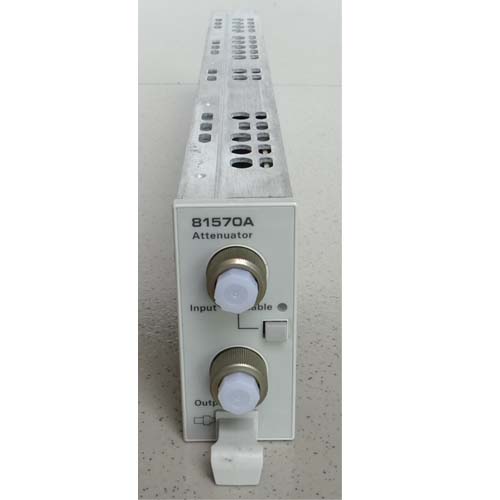

Keysight / Agilent 81570A Variable Optical Attenuator Module
Manufacturer:
  Keysight / Agilent
Model:
  81570A
Condition:
  Used
Availability:
  Contact us for availability
Price:
  $.00
Qty:
Description:
.

   Feature
Agilent 81570A Variable Optical Attenuator Module
Key Features:
● High Input Power Level: 2W
● Wavelength Flatness: < 0.05dB
● High Attenuation Accuracy < 0.1dB
● Repeatability < 10mdB

Description:
The Agilent 81570A variable optical attenuator features lowest insertion loss and excellent wavelength flatness over a complete attenuation range of 60 dB, for characterizing optical network components for telecomunication and data communication in systems.

Features:
● Low Signal Distortion due to low PDL, PMD, CD
● Wavelength Flatness: < 0.05dB
● Wide Wavelength Range: 1200nm to 1700nm (SM)
● Built-in Shutter for Power Meter Zeroing
● Built-in Calibration Capability

Benefits:
● The high optical performance enables testing of transmission systems and
   components with minimal impact on the input signal.
● Unique combination of optical performance parameters gives you the flexibility
   to use and reuse the modular attenuator in different setups and applications.
● The integrated shutter protects test equipment and simplifies referencing and
   power meter zeroing without changes in the setup.
● Enhanced internal calibration feature reduces uncertainties and speeds up
   calibration in multi wavelength applications.
   Details
