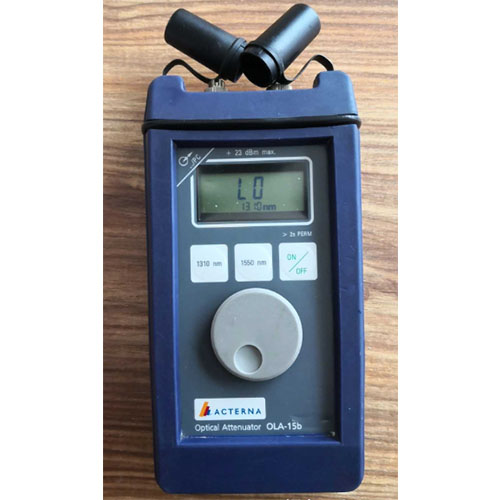

WWG OLA-15B Optical Attenuator

Manufacturer:

WWG

Model:

OLA-15B

Condition:

Used

Availability:

Price:

$.00

Qty:

Description:

Feature

The WWG OLA-15B is a handy-sized, rugged optical attenuator for single mode applications from 1260 to 1625 nm. Applications include bit error rate tests, determination of system
margin and receiver sensitivity, and calibrationf optical power meters.

Wide measurement range, simple operation
OLA-15B has a large rotary control on the front panel which makes setting
of the attenuation quick and easy.
Attenuation can be setwithin a wide range from 3 to 60 dB.

For high-return loss applications – for example, CATVsystems – both optical
connectors can be provided with an APC (angled physical contact) interface as an option.

Rugged field instrumentation
OLA-15B can be operated with AC, dry or rechargeable batteries. It is supplied in a robust housing, with splash-proof foil keypad and protectors for the optical connectors, to
ensure reliable operation even in harsh field conditions.

Highlights
– Multiple applications in optical system verification, installation and maintenance
– Ideal for optimization of DWDM systems
– Wide attenuation range
– Simple, reliable operation
– Rugged, compact and lightweight
– Three year recalibration period

Details

Wavelength

– Range of use 1260 to 1625 nm

– Calibrated at 1310 and 1550 nm

Attenuation setting

– Attenuation range(1) 3 to 60 dB

– Minimum insertion loss(1) ²3 dB

– Linearity ±0.2 dB

– Repeatability of attenuation setting(2) ±0.1 dB

– Total attenuation uncertainty(1) ±0.8 dB

– Setting type continuous over the entire range

– Function bidirectional

Attenuation display 4 digit liquid crystal display

– Displayed value(1)

absolute attenuation including connector

– Resolution 0.05 dB

Optical input/output Physical Connector (PC) or Angled Physical Connector (APC)

Interchangeable test adapters of BN 2060/00.XX series BN 2060/00.X e.g. DIN, FC, SC, ST, E2000

– Fiber type single-mode 9/125mm

– Return loss at input/output(3) >40 dB (PC) Or >60 dB (APC)

– Maximum input level + 23 dBm
