Home Optical Laser Source >> EXFO FLS-135A SingleMode Light Source
Optical Laser Source
EXFO FLS-135A SingleMode Light Source
Manufacturer:
  EXFO
Model:
  FLS-135A
Condition:
  Used
Availability:
  2 pcs
Price:
  $280.00
Qty:
Description:

   Feature
The FOS-120A Light Source and FLS-130A Laser Source deliver excellent stability. They are compatible with the FOT-10A and FOT-20A Power Meters, which are suitable for a variety of testing applications including continuity and end-to-end testing.

Versatility
The FOS-120A Light Source and FLS-130A Laser Source feature single- and dual-wavelength sources from single or double ports.
The units deliver continuous wave (CW) signals for power/loss measurements and 2-kHz signal generation for fiber identification.
Certain FOS-120A models and all FLS-130A models are equipped with EXFO's Universal Interface.
Unit Powering
Powering options include a 9 V battery and a standard AC adapter.
The battery life offers a minimum of seven hours of continuous operation.
An auto-off function with a 10-minute timer is included to preserve battery life.

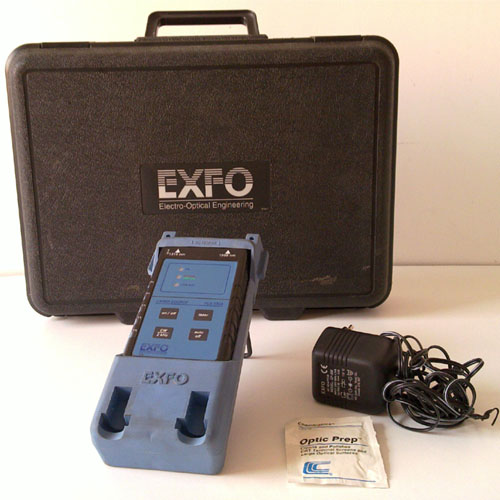

Accessories
Each unit comes complete with a rigid carrying case, a shockproof PVC
holster with strap, as well as SC, ST and FC connectors.

Key Features
● Single- or dual-wavelength configuration
● 2-kHz signal generation for fiber identification
● Dual powering: 9 V battery and AC adapter/charger
● Auto-off function
● Rigid carrying case and shockproof holster with strap
● Equipped with EXFO’s Universal Interface, except for certain FOS-120A models
   Details
Specifications—FLS-130A Laser Source (Laser)
Models
FLS-132A
FLS-133A
FLS-135A
FLS-136A
Wavelength1 (nm)
1310 ± 20
1550 ± 20
1310 ± 20
1550 ± 20
1310 ± 20
1550 ± 20
Spectral width5 (nm)
5
5
5/5
5/5
Launch power3 (dBm)

9/125 μm
-7
-7
-7/-7
-8/-8
50/125 μm
-7
-7
-7/-7
-8/-8
62.5/125 μm
-7
-7
-7/-7
-8/-8
Power stability4 (dB)

1 h
± 0.06
± 0.08
± 0.06/± 0.08
± 0.06/± 0.08
8 h
± 0.10
± 0.12
± 0.10/± 0.12
± 0.10/± 0.12
Output ports
1
1
2
1
