Home Power Meter & Heads >> EXFO FOT-22A Handheld Power Meters
Power Meter & Heads
EXFO FOT-22A Handheld Power Meters
Manufacturer:
  EXFO
Model:
  FOT-22A
Condition:
  Used
Availability:
  1 pc
Price:
  $150.00
Qty:
Description:

   Feature
Versatility in the Field
The FOT-10A and FOT-20A Power Meters are compact, accurate,
rugged and easy-to-use instruments for both power and loss testing. Like all of EXFO's handheld power meters, the FOT-10A and FOT-20A can be calibrated to a custom wavelength, free of charge.

Key Features
● Direct loss measurement in dB
● Five electronically calibrated wavelengths
● Shockproof holster also acts as storage compartment for fiberoptic
   adapters and replacement battery
● Auto-off function
● FOT-10A: power measurements in dBm
● FOT-20A: power measurements in dB, dBm and W

Performance
The FOT-10A and FOT-20A incorporate EXFO's linear amplification technology and are traceable to NIST. They offer five calibrated wavelengths, and perform 2 kHz signal detection for fiber identification. Unit configurations are available with germanium or high-power germanium detectors. An electrical offset nulling
feature makes the FOT-10A and FOT-20A ideal for operation in extreme temperature conditions.

Ruggedness
The FOT-10A and FOT-20A Power Meters meet Telcordia's strict drop-test requirements. A holster is included for added durability and portability of connector and battery accessories. A complete range of EXFO fiber-optic adapters is available for connector interface. A single 9 V battery powers these units for over 14 hours.
Custom Calibration
Like all EXFO power meters, the FOT-10A and FOT-20A can be calibrated at a custom wavelength.

Applications
● Transmitter power measurements (dBm and W)
● Fiber-link loss testing (dB)
● Component insertion-loss testing (dB)
● Fiber identification with 2 kHz signals
● LAN installation and maintenance applications
   Details
Models
FOT-22A
FOT-22AX
Detector type
Ge (2 mm)
GeX (2 mm)
Standard calibrated wavelengths (nm)
780, 850, 1300,
1310, 1550
780, 850, 1300,
 1310, 1550
Measurement range (dBm)
6 to -60
21 to -50
Resolution (dB)
0.05
0.05
Uncertainty (%)
± 5
± 5
General Specifications
Size (H × W × D)
22.2 cm × 10.3 cm × 5.9 cm (8 3/4 in × 4 1/16 in × 2 1/4 in)
Weight
unit 0.56 kg (1.25 lb)
shipping 1.8 kg (4 lb)
Operating Temperature
-10 °C to 40 °C (14 °F to 104 °F)

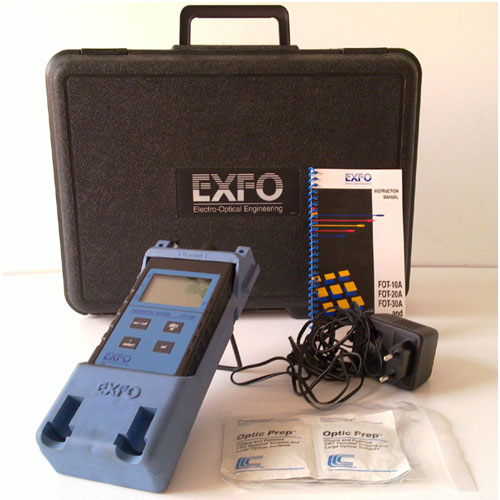

Standard Accessories
User Guide, carrying case, 9 V alkaline battery, AC adapter, connector adapter, protective holster, shoulder strap and Certificate of Calibration.
