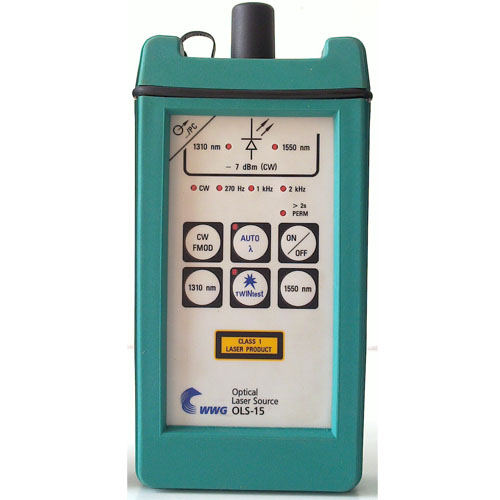

WWG OLS-15 Optical Laser Source

Manufacturer:

WWG/Acterna

Model:

OLS-15

Condition:

Used

Availability:

1 pc

Price:

$450.00

Qty:

Description:

WWG/Acterna OLS-15 is high performance single port dual laser source.

Feature

high power singlemode laser source

OLS-15 is a high power singlemode laser source designed for use with all Acterna’s high performance and pocket-sized optical power meters.

High performance

The power and stability of the OLS-15 source make it ideal for use with singlemode fibers and for accurate monitoring of long distance links.

Universal adapters provide reliable,reproduceable connection to all common fiber optic connector types.

Twintest and auto wavelength detection

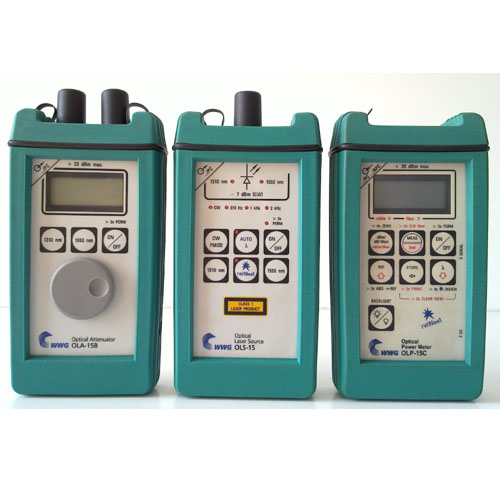

OLS-15 can be used with an Acterna OLP (optical power meter) for Twintest and auto wavelength detection.

The actual used wavelength is automatically detected by the OLP which then switches to the rightwavelength range. TwinTest provides two wavelength lossmeasurements automatically. Both functions help to avoid errors during the measurement procedure.

A single port provides connection for 1310 and 1550 nm testing. This saves connect/disconnect time as well as reducing cleaning procedures and connector abrasion.

Highlights

– Rugged, compact and lightweight

– Ideal for networkswith singlemode fibers and long distance links

– Three year recalibration period

– One port for dualwavelength

– Auto-l and Twintest

– Simple, reliable operation

– PCand APC versions

Automatic identification of individual fibers

OLS-15 can be used with an Acterna OLP to detect the modulation frequency of the fiber to be measured,for identification purposes.

Rugged field instrumentation

OLS-15 can be operated with AC, dry or rechargeable batteries. It is supplied in a robust housing, with splash-proof foil keypad and protectors for the optical connectors, to ensure reliable operation even in harsh field conditions.

Details

Specifications(1)

– Optical source type： Dual FP laser

– Wavelength： 1310 ±20 nm/1550 ±20 nm

– FWHM spectral width： <5 nm /<5 nm

– Output power (CW) ：into 9/125 mm

– Class 1 laser as per IEC 825： -7 dBm

– Output level reduction

In Twintest mode, AUTO-l and FMOD： 3 dB

Total output power uncertainty(5)

in range -10 to +55°C： ±1 dB

Output signal stability

(valid for CW and modulated signals)

– Short-term： (15 min, -10 to +55°C,ÆT = ±0.3K) ±0.02 dB typ.

– Long-term： (8h, -10 to +55°C, ÆT = ±3 K) ±0.2 dB

Modes

– CW： continuous wave output signal

– TWIN： Test alternating output signal with 1310 or 1550 nm identifiers

– AUTO-λ：output signal has 1310 or 1550 nm identifier

– FMOD ：square wave modulation (270 Hz, 1 kHz or 2 kHz, selectable)

Optical connector

Physical Contact (PC) or Angled Physical Contact (APC)

– Interchangeable test adapters for

BN 2060/00.XX series （e.g., DIN, FC, SC, LC, E2000 and others）

General specifications

– Power supply

Dry batteries：2 x Mignon (AA size), 1.5 V

Rechargeable batteries：NiCd cells 2 x Mignon (AA size), 1.2 V

– Operating time

Dry batteries： typical 28 hours

NiCds typical： 9 hours

– Battery/NiCd power saving

The instrument switches off automatically after approx. 20 min (function can be disabled)

– AC ：separate AC adapter

– Battery charging
internally using AC adapter externally with charger unit

– Electromagnetic compatibility

corresponds to EN standards 50 081-1 and 50 082-1 (CE conformance)

– Recommended calibration： interval 3 years

– Ambient temperature： -10 to +55°C

– Storage and transport： -40 to +70°C

– Dimensions (w x h x d)：approx. 95 x 49 x 195 mm

– Weight (including batteries/NiCds)：approx. 500 g
