Home Optical Attenuator >> EXFO FVA-600 Variable Attenuator
Optical Attenuator

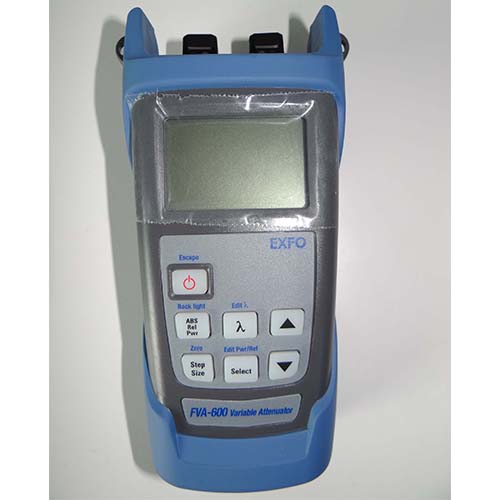

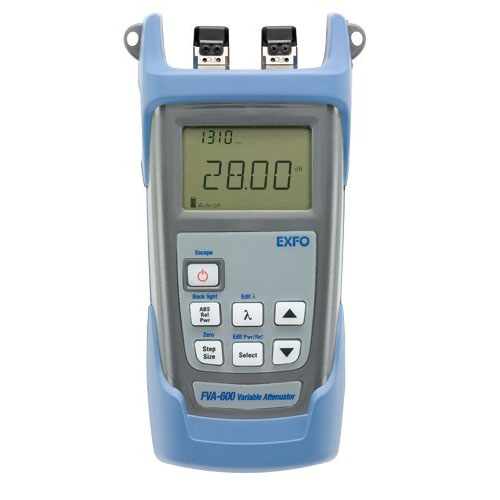

EXFO FVA-600 Variable Attenuator
Manufacturer:
  EXFO
Model:
  FVA-600
Condition:
  New
Availability:
  5 pcs
Price:
  $2,650.00
Qty:
Description:
Delivers the highest performance within handheld optical attenuators on the market.

   Feature
KEY FEATURES:
• Most compact and rugged portable attenuator on the market
• Low cost of ownership:three-year warranty and recommended calibration interval
• Three operating modes: Absolute, Relative and Power
• Backlit display, optimized for dim environments
• USB-based remote control capability, for easy test routine integration
• Rechargeable Li-ion battery

APPLICATIONS:
• Handles high power up to 24 dBm, suiting any application,including CATV and telco
• BER testing-ready: high optical resolution of 0.01 dB
• FTTx-ready: standard 1310, 1490, 1550 and 1625 nm wavelengths
   Details

SPECIFICATIONS
Fiber type (μm)
9/125
Calibration wavelengths (nm)
1310/1550
Wavelength range (nm)
1250 to 1625
Wavelength increment (nm)
1
Maximum attenuation (dB)
65
IL (dB)
≤1.5
Resolution (dB)
0.01
Linearity (dB)
±0.1
Repeatability 2σ (dB)
±0.1
Optical return loss (dB)
>50
Max. input power (dBm)
24
Battery life (hours)
>300
Warranty and recommended calibration interval (years)
3



GENERAL SPECIFICATIONS
Size (H x W x D)
190 mm x 100 mm x 62 mm
Weight
0.6 kg (1.3 lb)
Operating Temperature
—10 °C to 50 °C(14 °F to 122 °F)
Storage Temperature
—40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity
0 % to 95 % non-condensing
Power
AC adapter and rechargeable Li-ion battery

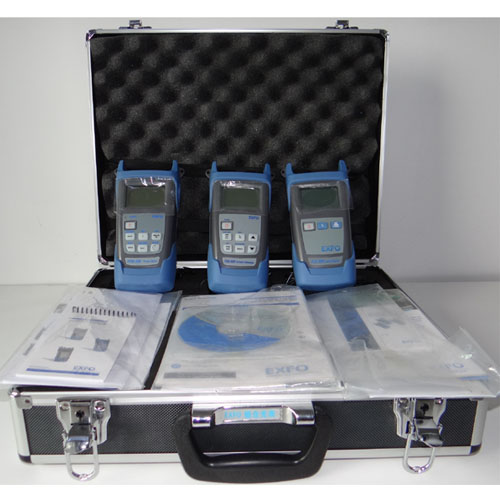

Standard Accessories:
User guide, Certificate of Calibration, quick reference sticker in five languages,AC adapter/charger, connector adapter (EUI-XX), lithium ion battery, shoulder strap,carrying bag, USB cable, instruction manual on CD
