--Handheld Power Meter--EXFO FPM-602X Optical Power Meter,-55~+26dBm,with FOA-22 FC Connector

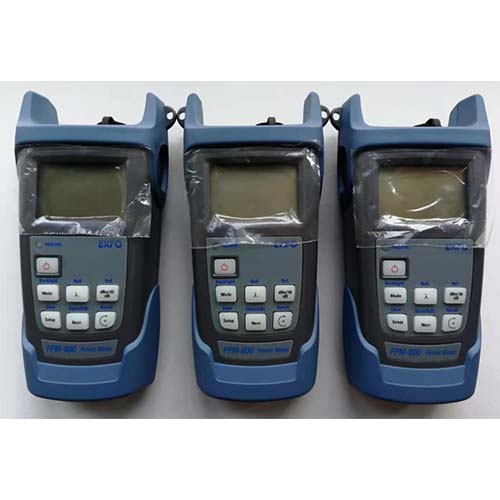

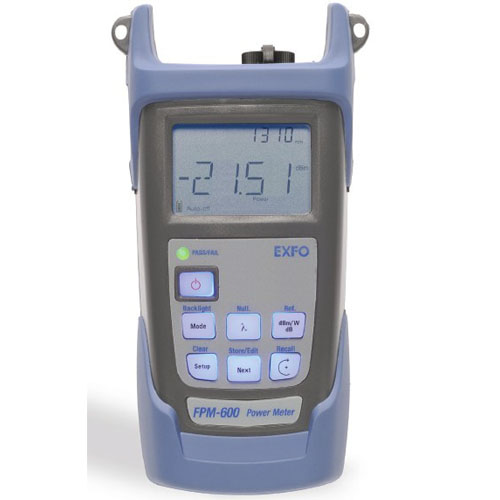

EXFO FPM-602X Optical Power Meter,-55~+26dBm,with FOA-22 FC Connector

Manufacturer:

EXFO

Model:

FPM-602X

Condition:

New

Availability:

3 pcs

Price:

$800.00

Qty:

Description:

Feature

The highly versatile FPM-600 Power Meter is the ideal tool for link and system qualification. Thanks to its memory capacity of 1000 data items and converter software, it facilitates data management and enables data transfer to a PC via USB connection. The FPM-600 features a green/red LED indicator that gives you a pass or fail test verdict according to the thresholds you have defined.

Features:
● High accuracy, wide dynamic range and high power measurement capability (up to 26 dBm)
● Memory capacity of 1000 data items; enables data transfer to a PC via USB connection
● User-configurable pass/fail thresholds with LED indicator
● Over 40 calibrated wavelengths, and Hold Min/Max Power function
● Rechargeable batteries
●Error-free, time-saving test features: automatic wavelength switching,no offset nulling
● Low cost of ownership: three-year warranty and recommended calibration interval

Details

SPECIFICATIONS
Model	FPM-602	FPM-602X
Detector	Ge	GeX
Power range (dBm)	10 to –70	26 to –55
Wavelength range (nm)	800 to 1650	800 to 1650
Calibrated wavelengths (nm)	800, 820, 830, 840, 850, 860, 870, 880, 910, 980, 1270, 1280, 1290, 1300, 1310, 1320, 1330, 1340, 1350, 1370, 1390, 1410, 1430, 1450, 1460, 1470, 1480, 1490, 1500, 1510,1520, 1530, 1540, 1550, 1560, 1570, 1580,1590, 1600, 1610, 1620, 1630, 1640, 1650 (FPM-602X plus 1060)
Power uncertainty	±5 % ± 0.1 nW	±5 % ± 3 nW
Resolution (dB)	±0.01 (10 dBm to –60 dBm)	±0.01 (26 dBm to –45 dBm)
Automatic offset nulling	Yes	Yes
Display units	dB, dBm, W	dB, dBm, W
Tone detection	270 Hz, 1 kHz and 2 kHz	270 Hz, 1 kHz and 2 kHz
Auto-switching	Yes	Yes
Warm-up period (min)	0	0
Data storage (items)	more than 1000	more than 1000
Battery life (hours) (typical)	72	72
Warranty and recommended recalibration interval (years)	3	3

GENERAL SPECIFICATIONS
Size (H x W x D)	190 mm x 100 mm x 62 mm
Weight	0.48 kg (1.1 lb)
Operating Temperature	–10 °C to 50 °C
Storage Temperature	–40 °C to 70 °C
Relative humidity	0 % to 95 % non-condensing

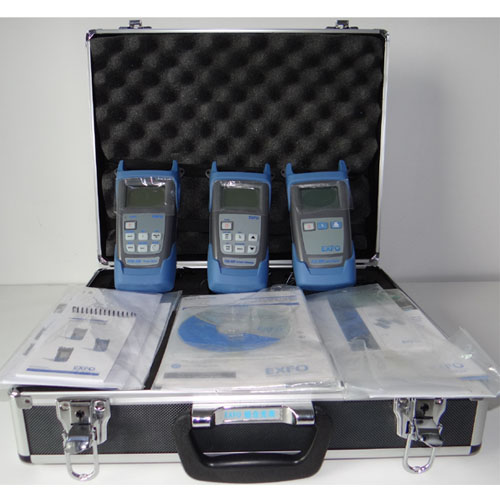

STANDARD ACCESSORIES:

User guide, Certificate of Calibration, instrument stickers in six languages, AC adapter/charger, lithium ion battery, shoulder strap, hard carrying case, USB cable.
