Home Fiber Cleaver & Stripper >> Cleaver >> Fujikura CT-07BS High Precision Fiber Cleaver
Fiber Cleaver & Stripper

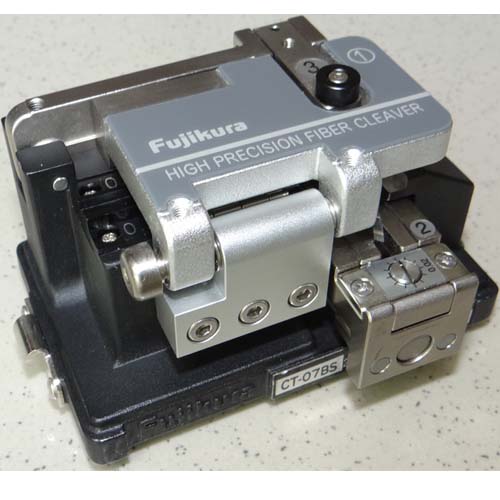

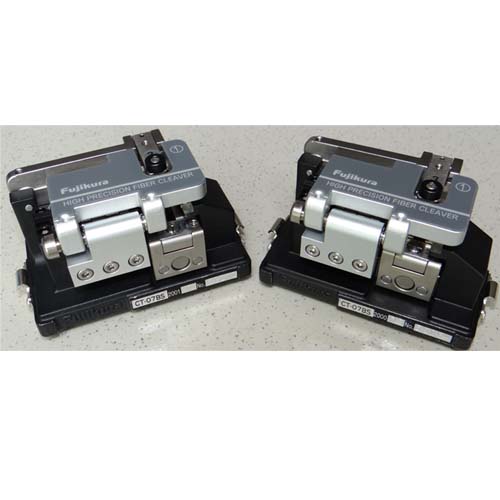

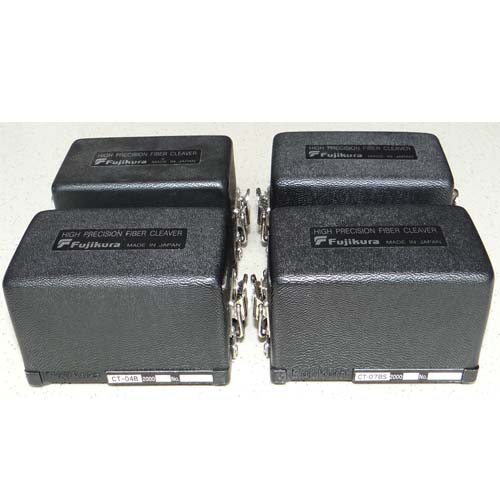

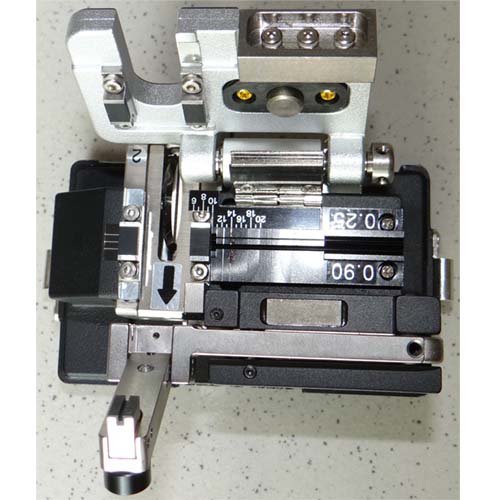

Fujikura CT-07BS High Precision Fiber Cleaver
Manufacturer:
  Fujikura
Model:
  CT-07
Condition:
  Used
Availability:
  Yes
Price:
  $350.00
Qty:
Description:
Working condition very excellence.

   Feature
The Fujikura CT-07 & CT-04 precision fibre optic cleaver is exceptionally easy to use and offers consistently excellent results, providing in excess of 24,000 cleaves per circular blade.
The CT-07 & CT-04 is a rugged, self-contained unit designed to offer consistently reliable and accurate cleaves which cannot be affected by operator skill.
Features:
The Fujikura CT-07 & CT-04 fiber cleaver is used for cleaving both single-mode and multi-mode fibers. It has two v-grooves, one for 250 micronod. coating over 125 micron bare fiber, and the other is for 900 micronod. coating over 125 micron bare fiber. This cleaver delivers consistent splices of less than 0.5dB loss.

Specification
Applicable optical fibres
Conventional silica optical fibre
Fiber count
Up to 12
Fiber plate
AD-07
Bare fibre diameter
125mm
Cleave length
6-20mm (single fibre), 10mm (ribbon fibre)
Cleaving angle
0.5° (single fibre)
Minimum blade life
12,000 fibres
Blade position
1 height , 12 rotational settings
Dimension(mm)
90x55x55mm
Weight(g)
500g

   Details
