Sumitomo Type-36 Fusion Splicer

Manufacturer:

Sumitomo

Model:

Type-36

Condition:

Used

Availability:

Yes

Price:

$.00

Qty:

Description:

Feature

Features：
● As HDCH is installed and automatically aligns and splices fiber, it is possible to obtain high quality fibers as well as stable splicing regardless of operator's skill.
● Sumitomo remote interactive maintenance [S-RIM] system provides remote diagnosis and maintenance.
● Improved driving mechanism enables high speed splicing with in 25 seconds.
● Compact,light weight and field-friendly.
● Detachable 5.6 inch color monitor.
● Optical system with no mirror gives you much easier cleaning and maintenance.
● Automatic arc test insures an optimum arc is achieved for various environmental conditions, as well as splicing different manufactures fiber.
● Capable of high strength splicing.

Specifications:

■ Applicable fiber
Materia	Silica glass
Fiber type	SMF, MMF, DSF
Fiber diameter	125um
Coating diameter	0.25~0.9mm
Cleave length	8~16mm
■ Standard performance (Typical)
Splice loss (Identical fibers)	SMF:0.02dB,MMF:0.01dB,DSF:0.05dB
Data memory	1,000 splicing (Factory installed standard memory)
	16,000 splicing (With optional 2MB memory card)
Splice cycle time	Approx. 25 seconds
Splice programs	35 (max.)
Heating programs	4 (max.)
■ Functions
- HDCM (SM, DSF)
- Automatic/Manual splicing
- Remote maintenance/diagnostic function with S-RIM*1
-Splice data storage (1,000 splicing), up to 16,000 splicing with optional memory card
-Fiber condition data storage
-Screening of spliced portion (tension 1.96N(200gf))
-Built-in heater for thermal protection (Applicable for 40, 60mm sleeve)
-Arc test (Adjustable to environmental condition)
■ Dimensions
Size	190(W) x 190(D) x 175(H)mm
Weight	Approx. 6.9kg
Monitor display	5.6 inch TFT color monitor
Power supply	AC 100-240V, (50/60Hz); DC 12V

Details

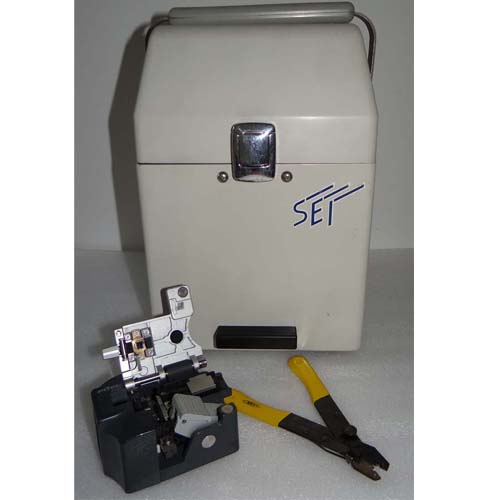

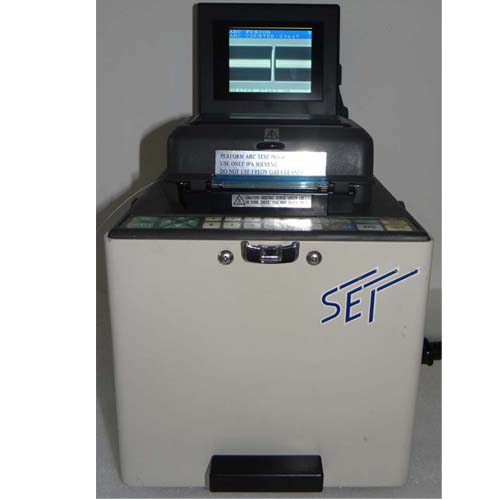

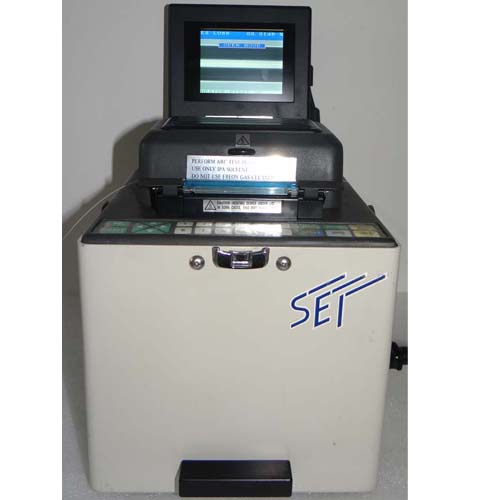

Used Sumitomo Type-36 fusion splicer lncluding:
a) Arc Fusion Splicer Model: Type-36 -1pc
b) AC power cord Model: ACC-XX -1cp
c) Spare electrodes -1pairs
d) High precision fiber cleaver Model: CT-30- 1 pc
e) Miller Fiber Stripper Model:FO 103S- 1 pc
