Home Fusion Splicer & Accessories >> Fusion Splicer >> Sumitomo Type-65 Ribbon Fusion Splicer
Fusion Splicer & Accessories

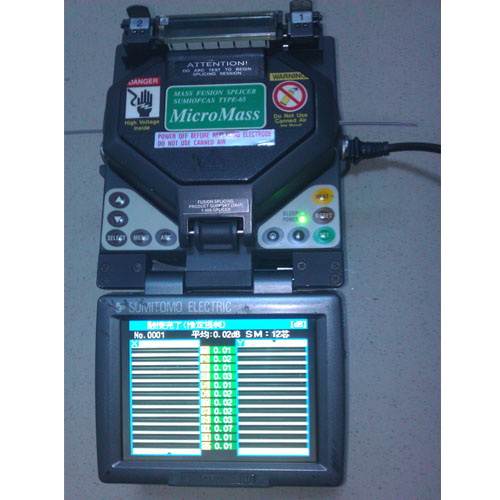

Sumitomo Type-65 Ribbon Fusion Splicer
Manufacturer:
  Sumitomo
Model:
  Type-65
Condition:
  Used
Availability:
  2
Price:
  $3,900.00
Qty:
Description:

   Feature
The New Type-65 Micro-Mass is FAST and designed for complete portability: with battery peration, wind protection and compact size it can go anywhere. The Type-65 offers unprecedented speed and protability in a rugged, user-friendly machine.

Utilizing precision v-groove alignment, the TYPE-65 can be used for all types of ribbon and single splicing with an optimum arrangement for ease of use in aerial and taut-sheath applications. The fiber viewing system provides simultaneous focussing of up to 12 fibers at a time and maintains equal resoulution across all fibers for improved accuracy of splice loss estimations. The high speed, high resolution image processing system automtically evaluates the fibers in two planes (X and Y axis) for cleave end face quality, cleave length irregularity and fiber offset to screen out most likely causes in high loss splices.

Features:
● Both power sources, AC adapter and battery, are available.
● The portable capability of the T-65 has been improved using the slot-in AC adapter/battery.
● Newly developed FFES optical system provides high speed splicing and clear fiber image, which allows visual check.
● Newly developed heater is capable of high speed heating operation.
● 30 consecutive splicing/heating operation with one fully charge battery.
● The mounting of a large wind protector enables splicing operation in 15m/s strong wind.
● 5.6 inch large TFT color monitor provides clear fiber image even in direct sunlight.
● Protection glass attached to mirror gives you much easier cleaning and maintenance.
● White LED illumination enables identification of a ribbon color and fiber loading even at dark places.
● Automatic arc test insures an optimum arc is achieved for various environmental conditions, as well as splicing different manufactures fiber.

Applicable fiber
Material
Silica glass
Fiber type
Single mode (SMF), Multi-mode (MMF),Dispersion shifted (DSF),Non-zero dispersion shifted (NZ-DSF)
Fiber diameter
125um
Cleave length
10mm
Number of fibers
Single fiber (0.25mm, 0.9mm), 2~12 fiber ribbon
Standard performance (Typical)
Splice loss (Identical fibers)
SMF:0.05dB ,MMF: 0.03dB,DSF : 0.07dB,NZ-DSF: 0.05dB
Splice cycle time
30 sec (12-fiber ribbon)
Heater cycle time
75 sec (8-fiber ribbon)
Splice cycle per full charge of battery
20 cycles (12-fiber ribbon, including heater, using JR-5)
Splice programs
48 (max.)
Heating Programs
10 (max.)
Functions
- Splice loss estimation
- Splice data storage (250 splicing)
- Fiber condition data storage
- Screening of spliced portion (Tension 1.96N(200gf))
- Built-in high speed heater for thermal protection (Applicable for 40, 60mm sleeve)
- Arc test (With environmental effect compensation function)
- V-groove guide
Dimensions
Size
150(W) x 150(D) x 150(H) mm
Weight
Approx. 3kg
Monitor display
5.6-inch large TFT color monitor
Power supply
AC 100-240V, (50/60Hz)
DC 12V

   Details
Used Sumitomo Type-65M12 ribbon fiber fusion splicer Including:
a) Arc Fusion Splicer main unit Model: Type-65M12 -1pc
b) AC adapter / Battery charger / DC inlet Model: PS-65 - 1pc
c) Hard carrying case  -1pc
d)  AC power cord Model: PC-AC4 - 1pc
e) Spare electrodes Model: ER-7 - 1pair
f)  Instruction manual - 1pc
g) High precision fiber cleaver Model: CT-07BS - 1 pc
h) Detachable battery pack Model: BU-65 -1 pc
i)  Battery charge cord - 1pc
j)  Thermal jacket stripper kit Model: Fitel S218R/S944/S952 - 1unit
k)  Fiber holders Model: FH-12 - 1pair
