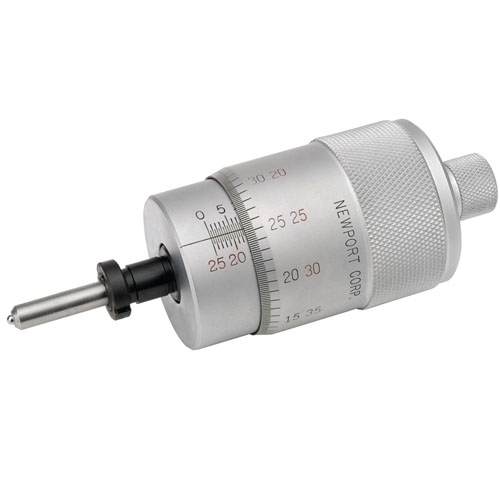

Newport HR-1 Long-Travel High-Resolution Micrometer Head
Manufacturer:
  Newport
Model:
  HR-1
Condition:
  Used
Availability:
  Yes
Price:
  $160.00
Qty:
Description:

   Feature
The HR-1 Long-Travel High-Resolution Micrometer Head has a sensitivity that is 4X better than most standard micrometer heads. Its engraved scale reads directly in units of 2 µm, and its large knob allows exceptionally sensitive position adjustment. This micrometer is compatible with all axes of any 462 stage configuration except for side-driven configurations.

Model
HR-1
Actuator Type
Micrometer
Travel
1.00 in. (25.4 mm)
Load Capacity
11 lb (49 N)
Graduations
2 µm
Minimum Incremental Motion
0.25 µm
Sensitivity
0.1 µm
Travel, Fine
25.4 mm
   Details
