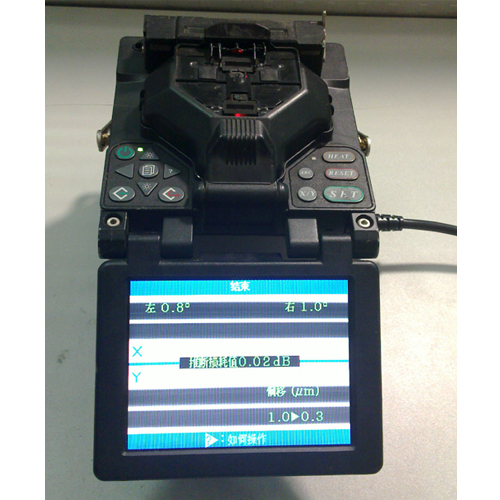

SPECIFICATION.. |
|
Model |
Fiber coating clamp model |
|
Applicable fibers |
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU -T G.653), NZDS (ITU-T G.655) |
|
Fiber Count |
Single |
|
Cladding diameter |
125um |
|
Coating diameter |
250um to 1000um |
|
Fiber cleaved length
|
8 to 16mm with coating diameter of 250um or less.
16mm with coating diameter of 250um to 1000um. |
|
Actual average splice loss |
0.05dB with SM, 0.02dB with MM, 0.08dB with DS, 0.08dB with NZDS. Measured by cut-back method relevant to ITU-T and IEC standards |
|
Splicing time |
Typical 11seconds with standard SM fiber |
|
Return loss |
>>60dB |
|
Splicing modes |
40 user programmable modes and up to 60 modes for reference (factory predetermined setting). |
|
Splice loss estimate |
Available |
|
Storage of splice result |
The last 2000 results to be stored in the internal memory |
|
Fiber display |
X / Y, or both X and Y simultaneously |
|
Magnification |
316x for single X or Y view, or 158x for X and Y view. |
|
Viewing method |
Two CMOS cameras and 5.6inch color LCD monitor. |
|
Operating condition |
0 to 5,000m above sea level, 0 to 95%RH and -10 to 50 respectively. |
|
Mechanical proof test |
2N |
|
Tube heater |
Built-in tube heater with 10 heating modes and up to 20 modes for reference |
|
Tube heating time |
Typical 35seconds with FP-03 protection sleeve. |
|
Protection sleeve length |
60mm and 40mm |
|
No.of splice/heat with battery |
Typical 80 cycles with BTR-06(S) / Typical 160 cycles with BTR-06(L). |
|
Power supply |
Auto voltage selection from 100 to 240V AC or 10 to 15V DC with ADC-11. 13.2V DC with BTR-06(S)/(L). |
|
Terminals |
USB 1.1 (USB-B type) for PC communication. Video terminal RCA video jack / NTSC |
|
Wind protection |
Max. wind velocity of 15m/s |
|
Dimensions |
150W X 150D X 150H (mm) |
|
Weight |
2.1 kg (2.6kg including AC adapter ADC-11) |
