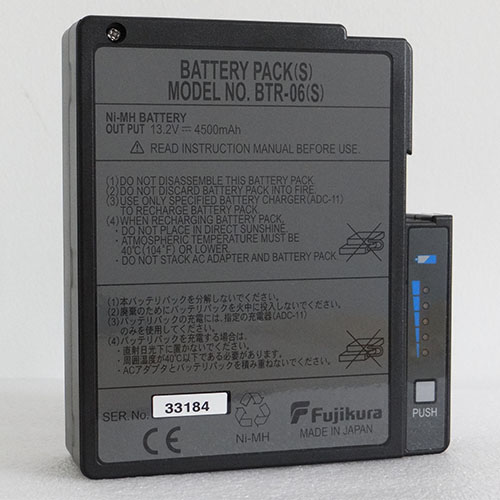

The Detachable Battery Pack, BTR-06 Series is used exclusively for Fujikura Arc Fusion Splicer,
FSM-50S, FSM-50R, FSM-17S, FSM-17S-FH,and FSM-17R.
Standard capacity model,BTR-06(S) and large capacity model,BTR-06(L) are available.
The battery is rechargeable, and to be charged by ADC-11, AC adaptor and DCC-10, charge cord.
SPECIFICATIONS
Model: BTR-06(S)
Type: NiMH (Nickel Metal Hydride)
Output voltage: 13.2V
Battery capacity: 4.5Ah
Battery charger: Exclusive Battery charger, ADC-11 Battery charge cord, DCC-10
Expected battery cycle life: Max. 500 cycles
Battery capacity indicator: Available with 5-step LED
Operating condition: -10 to +50 degree C / Non dew
Dimension, Weight: 150W x 130D x 39H (mm), 0.75kg
Use for: FSM-50S, FSM-50R, FSM-17S,FSM-17S-FH,FSM-17R
