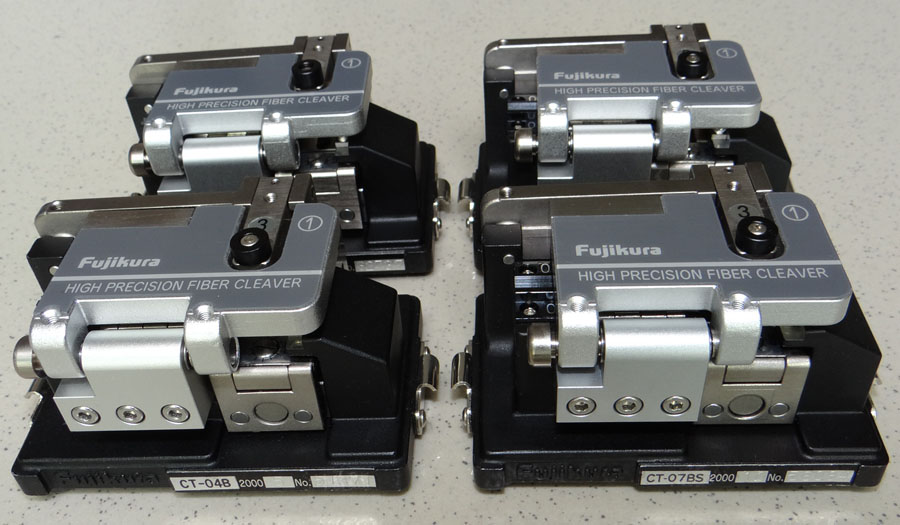

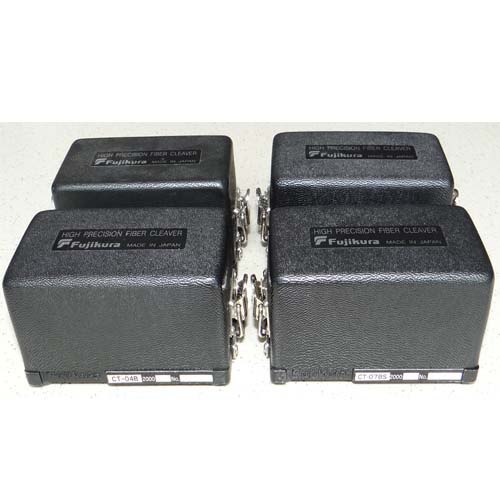

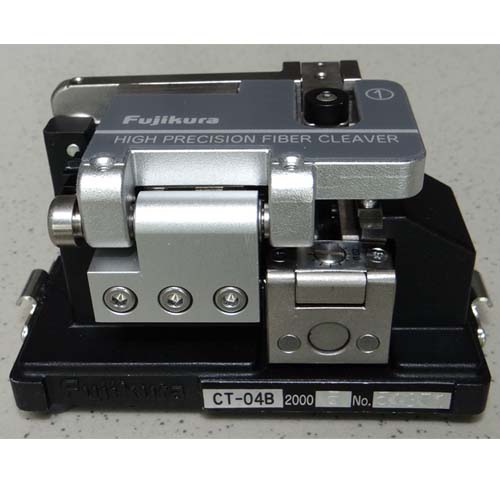

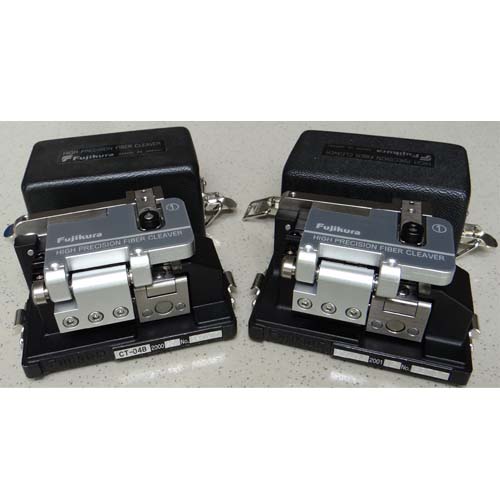

The Fujikura CT-07 & CT-04 precision fibre optic cleaver is exceptionally easy to use and offers consistently excellent results, providing in excess of 24,000 cleaves per circular blade.
The CT-07 & CT-04 is a rugged, self-contained unit designed to offer consistently reliable and accurate cleaves which cannot be affected by operator skill.
Features:

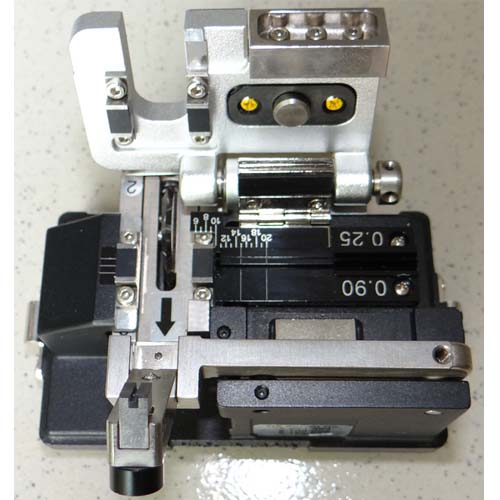

The Fujikura CT-07 & CT-04 fiber cleaver is used for cleaving both single-mode and multi-mode fibers. It has two v-grooves, one for 250 micronod. coating over 125 micron bare fiber, and the other is for 900 micronod. coating over 125 micron bare fiber. This cleaver delivers consistent splices of less than 0.5dB loss.
|
Specification |
|
Applicable optical fibres |
Conventional silica optical fibre |
|
Fiber count |
Up to 12 |
|
Fiber plate |
AD-07 |
|
Bare fibre diameter |
125mm |
|
Cleave length |
6-20mm (single fibre), 10mm (ribbon fibre) |
|
Cleaving angle |
0.5° (single fibre) |
|
Minimum blade life |
12,000 fibres |
|
Blade position |
1 height , 12 rotational settings |
|
Dimension(mm) |
90x55x55mm |
|
Weight(g) |
500g | |
