Home Manual Linear Stages >> Newport 462-XYZ ULTRAlign™ Integrated Crossed-Roller Bearing Linear Stage
Manual Linear Stages

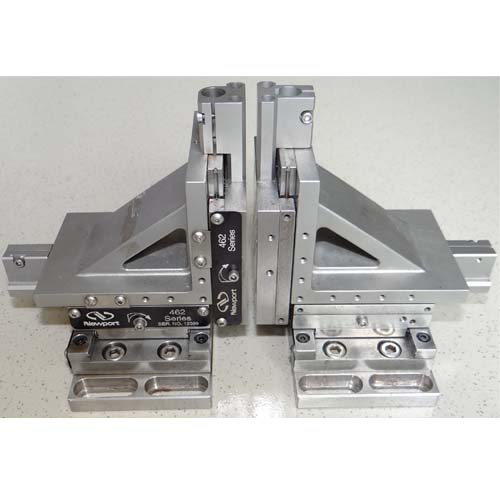

Newport 462-XYZ ULTRAlign™ Integrated Crossed-Roller Bearing Linear Stage
Manufacturer:
  Newport
Model:
  462-XYZ
Condition:
  Used
Availability:
  2 pcs
Price:
  $1,300.00
Qty:
Description:

   Feature

The 462-XYZ-M ULTRAlign™ Precision Integrated Crossed-Roller Bearing Linear Stages feature stainless steel construction for high stability, with thermally matched, hardened steel crossed-roller bearings for unsurpassed performance. The crossed-roller bearings and precision-manufactured bearing reference surfaces provide exceptionally linear 1.0 inch XYZ travel, with angular deviation better than 100 µrad about any axis. Our analysis has shown that optimum stability demands that not only the stage be built of stainless steel, but also the angle brackets, actuator mounts, and even the assembly hardware. ULTRAlign stages overcome the limitations of multi-axis stages derived from traditional tooling industry designs. The actuators are located out-of-the-way of oversized loads. The Z-axis stages does not depend on springs for support, ensuring maximum vertical load capacity. Generous 1/4-20 hole patterns provide easy mounting. The mounting base can be removed for a lower profile. Each axis features a non-influencing locking mechanism for negligible motion of the stage when locking or unlocking. Specially designed actuator mounting blocks allow quick and easy actuator changes, on any axis, at any time. Actuators are not incuded.

Model 462-XYZ-M
Travel Requirements 1.0 in. (25.4 mm)
Axes of Travel X, Y, Z
Travel 1.00 in. (25.4 mm)
Bearings Crossed-Roller Bearings
Material Stainless Steel
Thread Type 1/4-20
Load Capacity, Vertical 15 lb (67 N)
Precision Very High
Base Material Stainless Steel
Angular Deviation <100 µrad
Special Features Guaranteed Travel Straightness
Actuators Required Sold Separately
Type Precision
   Details
