Home Manual Linear Stages >> Newport 460A-XYZ Quick-Mount Linear Stage
Manual Linear Stages

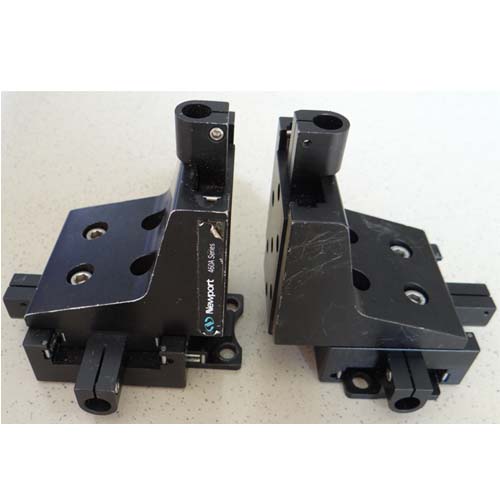

Newport 460A-XYZ Quick-Mount Linear Stage
Manufacturer:
  Newport
Model:
  460A-XYZ
Condition:
  Used
Availability:
  Yes
Price:
  $500.00
Qty:
Description:

   Feature

The 460A-XYZ 0.5 inch (12.7mm) Travel 3 Axis Quick-Mount Linear Stages has an integrated, yet modular, design allowing for increased versatility. The Z Axis Stage/Bracket is user removable allowing conversion of an XYZ Model to an XY Model. The 460A-XYZ features all aluminum construction with hardened ball bearings running along opposing pairs of polished and hardened stainless steel rods. This offers exceptional straightness of travel, but a lower load capacity than our crossed-roller bearing stages. The stages are spring loaded against the drive actuator for backlash free motion. Vertical-drive assemblies carry the load through the actuator spindle rather than the springs for positive load support. Three actuators are required and are ordered separately.

Model 460A-XYZ
Travel Requirements 0.5 in. (12.7 mm)
Axes of Travel X, Y, Z
Travel 0.50 in. (12.7 mm)
Load Capacity 15 lb (67 N)
Bearings Ball Bearings
Material Aluminum
Thread Type 1/4-20
Load Capacity, Vertical 5 lb (22 N)
Precision High
Base Material Aluminum
Angular Deviation <150 µrad
Special Features Low Profile
Actuators Required Sold Separately
Type Standard Performance
   Details
