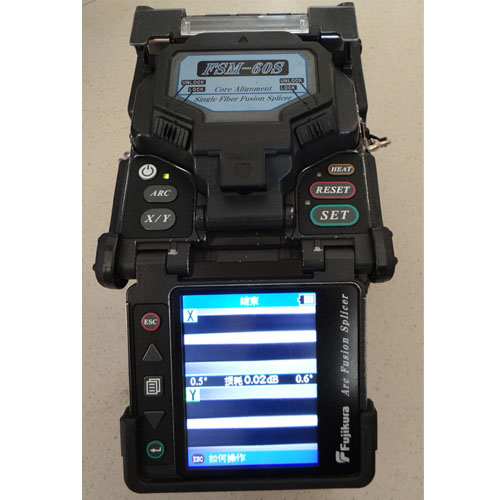

Applicable fibres |
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) and other SMF including ITU-T G.657 fibres |
|
Fibre Count |
Single |
|
Cladding diameter |
80 to 150μm |
|
Coating diameter |
100 to 1000μm |
|
Fibre cleaved length |
8mm to 16mm using Sheath Clamp A, B or C/ 10mm using FH-60-250, FH-60-900 |
|
Actual average splice loss |
0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.
Measured by cut-back method relevant to ITU-T standards. |
|
Splice time |
Typical 9sec. with standard SM fibre. |
|
Return loss |
60dB or greater |
|
Splicing modes |
Total number available equals 100; for pre-set modes and user programmable modes |
|
Splice loss estimate |
Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate. |
|
Attenuation splice function |
Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an inline fixed attenuator |
|
Storage of splice result |
The last 2000 results to be stored in the internal memory. |
|
Fibre display |
X/Y, or both X and Y simultaneously |
|
Magnification |
300x for single X or Y view, or 187x for X and Y view. |
|
Viewing method |
Two CMOS cameras for fibre viewing and 4.1inches TFT colour LCD monitor |
|
Image change over |
The fibre image is turned upside down automatically according to the monitor position. |
|
Tension test |
1.96 to 2.25N |
|
Operating condition |
0-5000m above sea level, 0-95% RH and -10 to 50°C respectively. |
|
Tube heater |
Built-in auto-start tube heater with 10 heating modes and up to 20 for reference |
|
Tube heat time |
Typical 30sec.with FP-03 protection sleeve. |
|
Applicable protection
sleeve length |
60mm, 40mm and a series of micro sleeves. |
|
No. of splice/heating
with battery |
160 cycles with BTR-08. |
|
Power supply |
Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-13. 13.2Vd.c. with BTR-08 |
|
Terminals |
USB1.1 (USB-Mini B) for data and video signal transfer to PC. |
|
Wind protection |
Max. wind velocity of 15m/s. |
|
Dimensions |
136(W) x 161(D) x 143(H) mm |
|
Weight |
2.3kg, with ADC-13 AC Adaptor, 2.7kg, with BTR-08 Battery |
|
Electrode life |
2500 arc-discharges |
