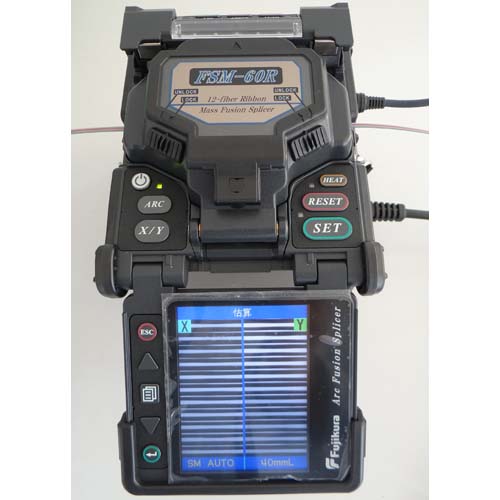

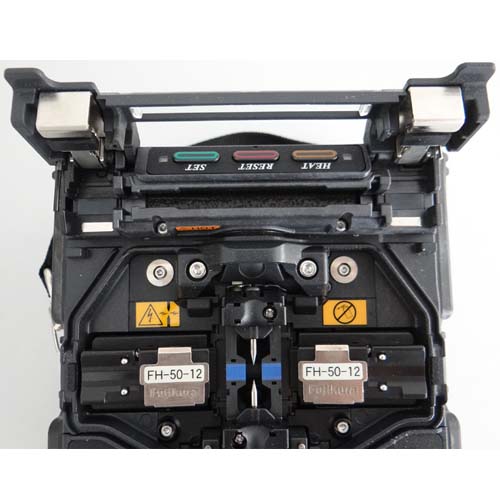

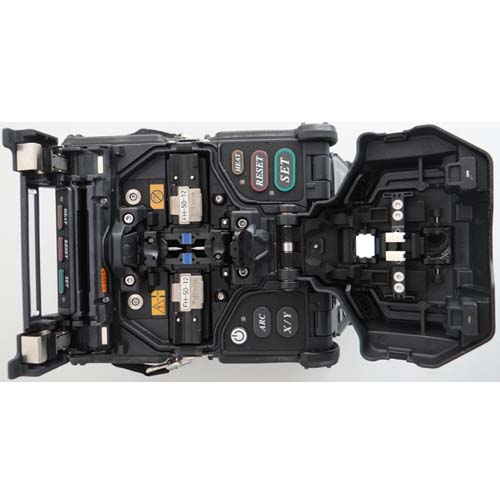

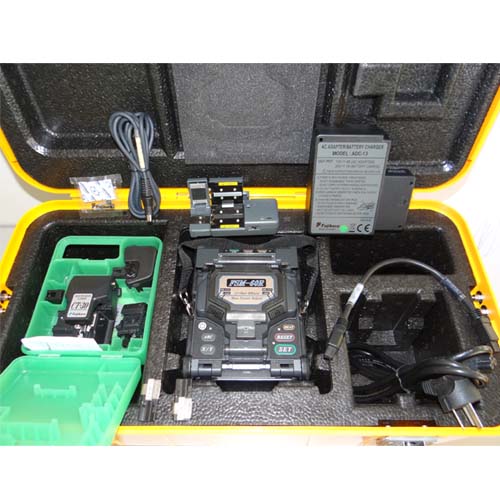

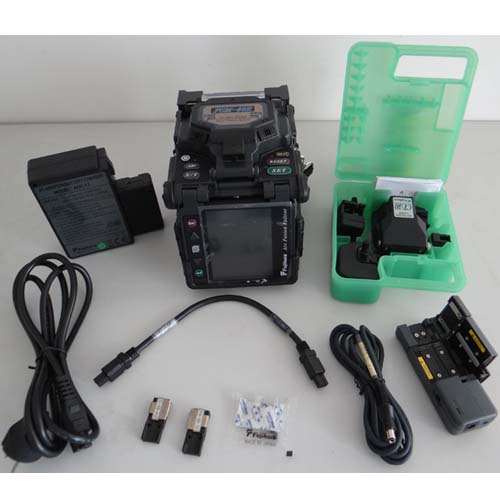

Applicable type of fibres |
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
|
Fibre Count |
Single,2,4,6,8,10 and 12 |
|
Applicable fibres dimensions |
Ribbon: Cladding diameter 125um,Ribbon fiber thickness 0.25 to 0.4mm
Single: Cladding diameter 125um,Cladding diameter 250um to 900um |
|
Fibre cleaved length |
10mm |
|
Splicing modes |
Total 100 modes |
|

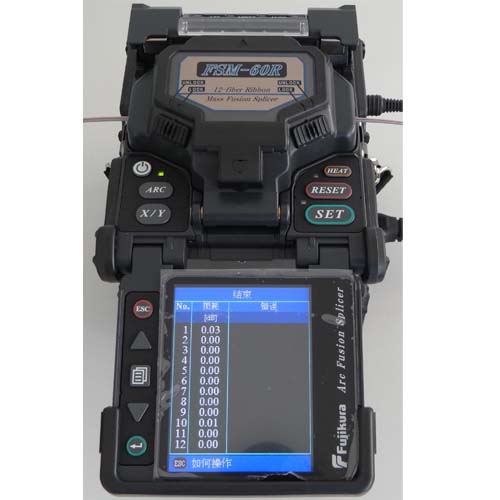

Typical splice loss |
0.05dB with SM, 0.02dB with MM, 0.08dB with DS, 0.08dB with NZDS.
Measured by cut-back method relevant to ITU-T standards. |
|
Return loss |
＞＞60dB |
|
Splice time |
Typical 20sec. with standard SM (ITU-T G.652) |
|
Splice loss estimate |
Available |
|
Tube heater/heating time |
Built-in tube heater with 30 heating modes. Typical 40sec with FP-04T and 50sec
with FP-05 |
|
Applicable protection
sleeve length |
60mm, 40mm and a series of micro sleeves. |
|
Storage of splice result |
The last 2000 results to be stored in the internal memory. |
|
Tension test |
1.96 to 2.25N |
|
Operating condition |
0 to 3660m above sea level, 0 to 95% RH and -10 to 50°C degC and up to 15m/s wind velocity, respectively |
|
Storage condition |
0 to 95% RH and -40 to 80°C degC respectively.
Battery: -20 to 30 degC for long term |
|
Dimensions |
136(W) x 161(D) x 143(H) mm excluding rubber foot. |
|
Weight |
2.1kg, with ADC-13 AC Adaptor, 2.5kg, with BTR-08 Battery |
|
Viewing method and display |
Two CMOS cameras and 4.1inches TFT colour LCD monitor |
|
Fibre displayview and magnification |
X/Y (35X magnification), or both X and Y simultaneously (35X magnification).
Changeable 35X to 90X |
|
No. of splice cycles
with battery |
Typical 90 cycles (splice / tube heat) with BTR-08. |
|
Power supply |
Applicable voltage from 100 to 240V AC or 10 to 15V DC. with ADC-13. 13.2V DC
with BTR-08 |
|
Electrode life |
1000 arc-discharges |
|
Terminals |
USB1.1 ( Mini-B type) connector for PC communication.
6-pin Mini-DIN connector for HJS-02,HJS-03 or SH-8C power supply |
