Home Fusion Splicer & Accessories >> Fiber Holder & Sheath Clamp >> Fujikura FH-100-900 Fiber Holder
Fusion Splicer & Accessories

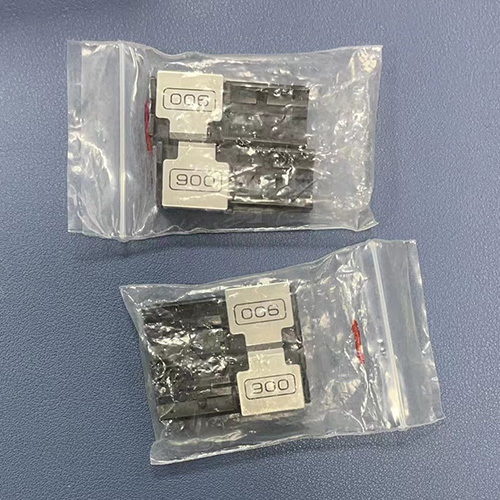

Fujikura FH-100-900 Fiber Holder
Manufacturer:
  Fujikura
Model:
  FH-100-900
Condition:
  Used
Availability:
  Contact us for availability
Price:
  $350.00
Qty:
Description:
FH-100-900 fiber holder for 55μm to 1000μm

   Feature
Fiber holder FH-100 series are for Fujikura Fusion Splicer FSM-100 series and FSM-45F/PM series. The FH-100 series has various models depending on coating diameter from 55mm to 1000mm, and custom one from over 1000mm may be available.


Specification
Applicable coating diameter
55μm to 1000μm
Type variation
In accordance with coating diameter
See VARIATION table on the right
Fiber holding
Magnetic clamping
Fiber Holder placing onto splicer
Guide-pin system with two pins per one side of Fiber Holder
Dimensions
42L x 16W x 7H (mm)
Weigth
20g for 1 pair
Material
Base plate: Heat-hardening plastic
Lid: Iron-Nickel alloy
Use for
Fusion Splicers
FSM-40F,FSM-40PM,FSM-45F,FSM-45PM,FSM-45LDF,FSM-45PM-LDF,FSM-100M,FSM-100P,FSM-100M+,FSM-100P+
Fiber Cleavers
CT-32 for 125mm cladding fibers
CT-38 for 80mm cladding fibers
CT-100 for 80 to 250mm cladding fibers
Jacket Strippers
HJS-02 for 250μm to 400μm fiber
JS-02-900 for 900μm fiber

HTS-12 94μm to 1000μm fiber
   Details
