Home Fiber Inspection Scope >> EXFO FIP-400-USB2 with FIP-400P-SINGLE Video Inspection Probe Kit
Fiber Inspection Scope

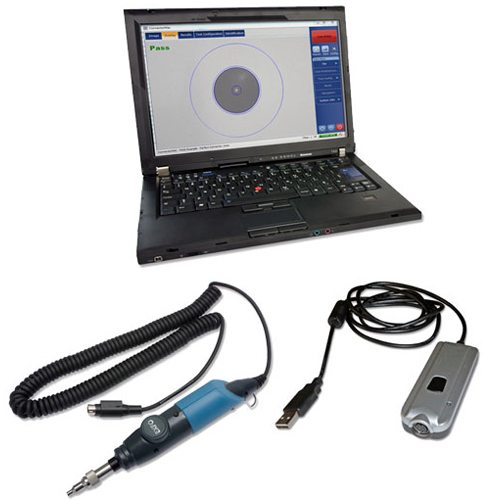

EXFO FIP-400-USB2 with FIP-400P-SINGLE Video Inspection Probe Kit
Manufacturer:
  EXFO
Model:
  FIP-400-USB2+FIP-400-P-SINGLE
Condition:
  New
Availability:
  8 Units
Price:
  $1,500.00
Qty:
Description:
EXFO FIP-400 400X Magnification Video Inspection Probe, and USB2 Converter,ConnectorMAX Analysis Software.

   Feature
The versatile EXFO FIP-400P-SINGLE Fiber Optic Inspection Scope Probe is designed to be used with a PC, the AXS-110, AXS-200, FTB-200 or FIP-400 fiber test sets & monitors. Video Inspection Scope Probe allows for patch cord, patch panel bulkhead, single-fiber connector and multi-fiber connector inspection at 400x magnification. See SPECIFICATIONS tab for more info.

The EXFO FIP-400P-SINGLE Fiber Inspection Probe includes FC-SC bulkhead tip, U25M universal patch cord tip for 2.5mm ferrule and a plastic case with compartments.


The EXFO FIP-400-USB2 Converter Module is designed to be used with the FIP-400 Optical Network Probe. This converter module allows the FIP-400 Optical network probe to connect to a PC via a USB 2.0 port. Includes software and instruction manual on CD.

USB Converter
USB 2.0 Model
Size (H x W x D)
19 mm x 36 mm x 95 mm
Connectors
EXFO probe port type (8 pin mini-DIN)/USB
Capture button
Yes
   Details
This kit includes the following items:
● FPSA-PC: ConnectorMax software for single fiber connectors (includes viewer software for single fiber connector Pass/Fail analysis, single fiber reporting tool for report generation and documentation)
● FIP-400-USB2: USB 2.0 converter module
● FIP-400-P-SINGLE: 400X magnification video inspection probe
● 1x FIPT-400-FC-SC: FC-SC bulkhead adapter tip
● 1x FIPT-400-U25M: Universal 2.5mm ferrule connector patchcord inspection tip
● 1x FIPT-400-U12M: Universal patchcord tip 1.25mm ferrules(Free)
● Compartmented plastic case for tips
