Home UV Curing System >> UV Light Sources >> Mikropack DH-2000-FHS-DUV Deuterium-Halogen Light Source
UV Curing System

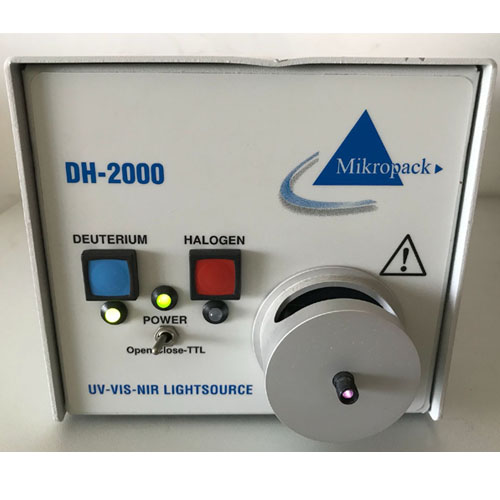

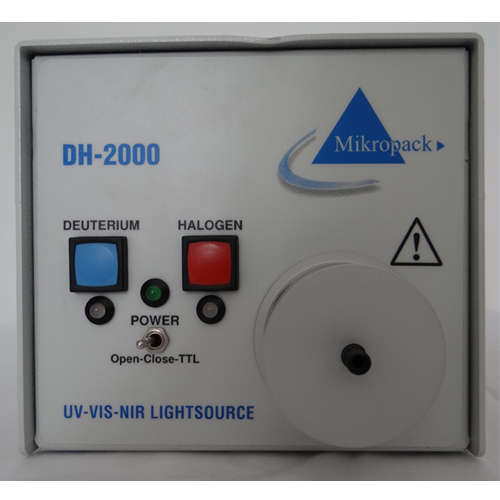

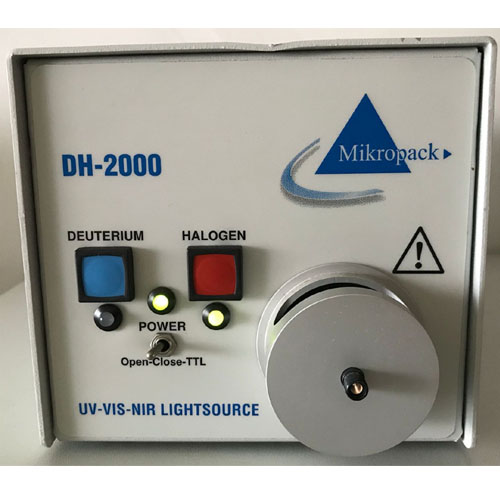

Mikropack DH-2000-FHS-DUV Deuterium-Halogen Light Source
Manufacturer:
  Mikropack
Model:
  DH2000-FHS-DUV
Condition:
  Used
Availability:
  Contact us for availability
Price:
  $2,000.00
Qty:
Description:

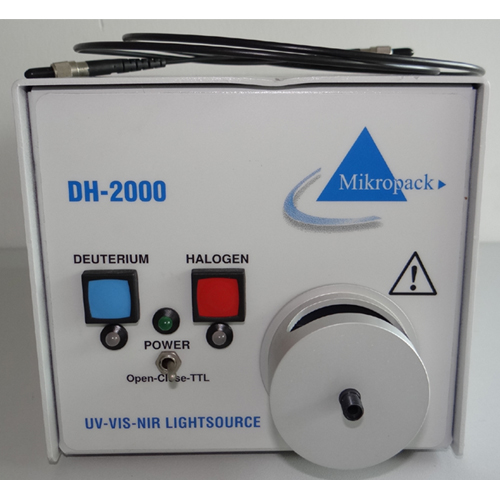

Mikropack DH2000-FHS-DUV Deuterium-Halogen Light Source with 2pcs used lamp and 1pc SMA905 Connector cable.

   Feature

The DH-2000 Deuterium Tungsten Halogen Light Source combines the continuous spectrum of deuterium and tungsten halogen light sources in a single optical path.

The combined-spectrum light source produces a powerful, stable output from 215-2500 nm. In addition, deep-UV versions of the light source are available, providing a 190-2500 nm wavelength range.

Options and Accessories

Integrated shutters are also available with the DH-2000 and can be driven either by a switch or by a TTL signal. Another option is to include a filter holder with the system, which accepts filters up to 4 mm in thickness and as large as 25-mm square or 20-mm round in diameter. All versions of the DH-2000 have an SMA 905 Connector for easy coupling to our spectrometers and accessories via optical fiber, and a safety shutter for blocking the light when the fiber is not attached.

Adjustable Power

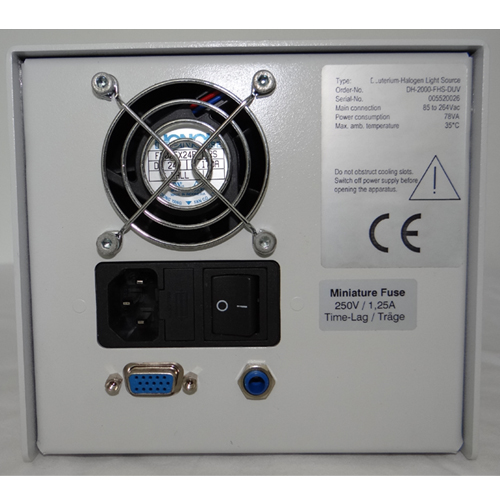

All versions of the DH-2000 have a potentiometer on the back of the light source to balance the light level between the deuterium and tungsten halogen light sources. This potentiometer allows you to adjust the optical power of the tungsten halogen light from 10-100%.

Optical Fibers

We recommend using our solarization-resistant optical fibers with all versions of the DH-2000.

   Details

DH-2000 Deuterium Light Source Specifications

Dimensions: 150 mm x 135 mm x 319 mm
Weight:  3.5 kg
Power consumption:  25 W (deuterium); 20 W (tungsten halogen)
Wavelength range:  190-2500 nm (deep-UV deuterium and tungsten halogen bulbs)
215-2500 nm (standard deuterium and tungsten halogen bulbs)
Humidity:  5-95% without condensation at 40 °C
Lamp current:  Operating 85 V/0.3A
Lamp lifetime:  1,000 hours
Lamp voltage:  Ignition 580 V @20°C
Current voltage drift:
<0.01% per hour
Current voltage stability:  <5 x 10-6 peak-to-peak (0.1-10.0 Hz)
Operating temperature:  5 °C - 35 °C
Power requirements:  85-264 V 50/60 Hz
Radiation characteristic:  Aperture 0.5 mm, numerical aperture 26° (13°); focused
Total power: 100 W
Power consumption:  Approximately 78VA
Warm-up time:
40 minutes (deuterium);
20 minutes (tungsten halogen)
Markings:  CE; VDI/VDE 0160; EN 61010



DH2000-FHS-DUV

Identical to the DH-2000-FHS, but uses a deep-UV deuterium bulb, which provides a 190-2500 nm wavelength range, and comes with a filter holder for filters up to 25-mm square or 25-mm round in diameter and 4 mm in thickness
