Home Communications Signal Analyzers >> Agilent 86100D Infiniium DCA-X Wide-Bandwidth Oscilloscope
Communications Signal Analyzers

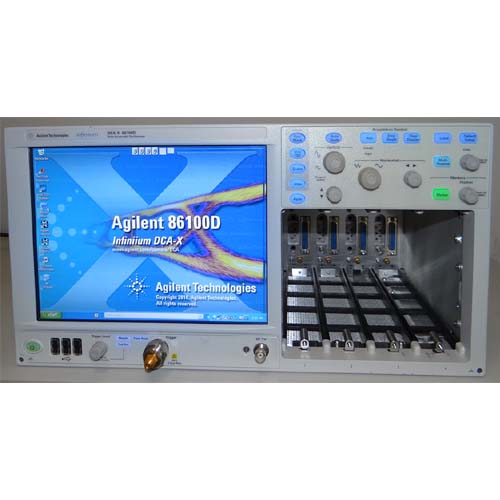

Agilent 86100D Infiniium DCA-X Wide-Bandwidth Oscilloscope
Manufacturer:
  Agilent
Model:
  86100D
Condition:
  Used
Availability:
  Contact us for availability
Price:
  $.00
Qty:
Description:

   Feature


Key Features & Specifications

The flexible, modular platform can be configured to cover a wide range of applications such as:

  • Transceiver Design and Manufacturing
  • ASIC / FPGA / IC Design and Characterization
  • Signal Integrity measurements on Serial Bus Designs, Cables, Printed Circuit Boards (PCB)

Precision measurements on high-speed signals at the touch of one button!

  • Scope Mode yields the most accurate waveform measurements
  • Eye/Mask Mode provides fast and accurate compliance testing of transceivers
  • TDR/TDT Mode for precision impedance measurements with S-Parameter capability
  • Jitter and amplitude mode for comprehensive analysis of signal characteristics, and an optional integrated precision timebase allows < 100 fs jitter and high channel counts

Powerful analysis features provide greater insight

  • Integrated de-embedding, embedding, and equalization capability
  • Jitter Spectrum and Phase Locked Loop (PLL) Analysis
  • Jitter analysis on long patterns such as PRBS31
  • Custom measurements and analysis using The MathWorks MATLAB software
  • Comprehensive, fast and accurate compliance and debug applications for use on DCA-X or PC

Lowest Cost of Test

  • Explore major cost of test reduction ideas using the Eye Mask Hit Ratio Technique and Auto Mask Margin
  • Testing optical transceivers in parallel can dramatically reduce the amount of equipment required for your production line
  • Modular – buy only what you need today knowing you can upgrade later
  • Protect your investment - the 86100D is 100% compatible with all DCA modules

Description

86100D DCA-X Wide-bandwidth Oscilloscope

Keysight product manager Robert Sleigh describes the 86100D DCA-X Wide-bandwidth Oscilloscope

   Details
