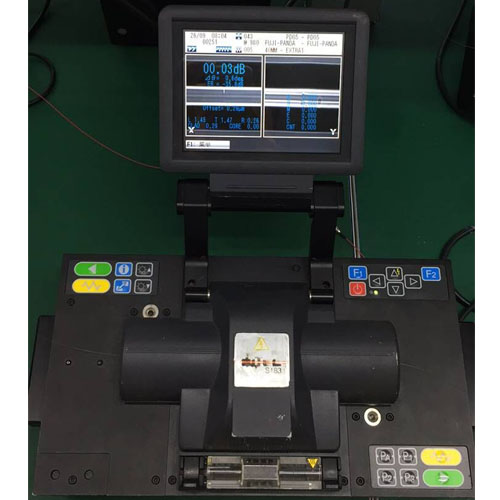

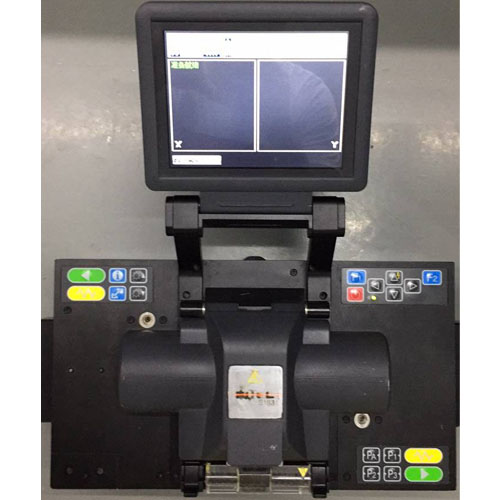

Fitel S183PMII Advanced Fusion Splicer
Manufacturer:
  Furukawa
Model:
  S183PMII
Condition:
  Used
Availability:
  Contact us for availability
Price:
  $.00
Description:

   Feature
The S183 Advanced Fusion Splicer series was designed specifically for the demanding production and research applications of the optical components industry. There are two versions of the S183: the S183K offers programs for specialty and exotic fiber combi­nations as well as high-strength splicing applications. The S183PM can also splice polarization maintaining fiber faster than any other unit in the world. The S183 Advanced Fusion Splicer series is setting a new standard in the field of high-end fusion splicing applications.

FEATURES & APPLICATIONS
● SAFE PM FIBER ROTATION
The new rotation mechanism on the S183PM allows PM fiber to rotate while keeping straight and stable. This minimizes fiber twist, which can be detrimental to sensitive splicing applications.

 ● QUICK LOADING & AUTOMATIC MACHINE ADJUSTMENT
The S183 automatically adjusts for different fiber coating and cladding sizes. There is no need to exchange electrodes, v-grooves, or fiber clamps. In addition, the S183 has been designed so that the user simply loads the fiber and closes the lid to begin the fusion process. There is no need to lower or set fiber clamps before beginning your splice.

 ● BI-DIRECTIONAL OPERATION
By changing the vertical screen display orientation, you can use the S183 with the LCD in the front or rear.

 ● ADVANCED “SMARTFUSE” FUNCTIONALITY
The S183 includes a sophisticated software platform that enhances your splicing performance in the lab and factory. This software allows the user to document all splic­ing results, perform “live” splicing with real-time feedback from test equipment, and study splicing char­acteristics, to name just a few of the advanced features.

 ● ADVANCED FUSION CONTROL
Arc curving, arc sequencing and arc scanning functions on the S183 allow it to perform a wide variety of advanced fusion control techniques to minimize the insertion loss and maximize the tensile strength for any specialty fiber combina­tion

 ● FAST SPLICE TIME!!
The splice time is lightning fast at 42 seconds for PANDA and 20 seconds for SM. The S183 is the fastest in the industry for most fiber applications, allowing you to increase efficiency on your production line.

 ● SPECIALTY SPLICING MADE EASY
The advanced features of the S183 allow you to splice today’s and tomorrow’s most exotic fiber types. Whether performing high-strength splices, splicing small cladding fibers (80mm), large cladding fibers (400mm), high MFD splicing combinations, PM fibers, or erbium-doped fiber, the S183 is the splicer for your high-end applications.
   Details
 SPECIFICATIONS
ITEM
SPECIFICATION
 Applicable Fibers
 SMF, MMF, DSF, NZDSF, CSF, DCF, EDF, PMF
 Fiber Cleave Length
 3 to 5mm with coating clamping;  9 to 11mm with bare fiber clamping
 Cladding Diameter
 80μm to 400μm
 Coating Diameter
160μm to 900μm
 Typical Insertion Loss
0.02dB for SM Fibers
 Similar Fiber Splicing
0.01dB for MM Fibers,0.04dB for DS Fibers,0.05dB for PM fibers
 Typical Insertion Loss
0.05dB for Single-Mode Fiber to PANDA fiber
Dissimilar Fiber Splicing
0.10dB for Single-Mode Fiber to TIGER fiber
0.15dB for Single-Mode Fiber to BOW-TIE fiber
0.10dB for PANDA Fiber to TIGER fiber (S183PM type)
Typical Extinction Ratio*
(Cross Talk)
-40dB (0.6 degree) for identical PANDA fibers
-32dB (1.4 degree) for identical TIGER fibers
-32dB (1.4 degree) for identical BOW-TIE fibers
-32dB (1.4 degree) for PANDA Fiber to TIGER fiber
-30dB (1.8 degree) for PANDA Fiber to BOW-TIE fiber
Loss Estimation
Cleave angle, Fiber Offset, Tilt, Micro-bending,
Parameters
Fiber end gap, Bubbling at splice point
Dimensions/ Weight
350W x 197D x 154H[mm], 8.7kg
Splice Time
20s for SM fibers; 42s for PM fibers (cladding clamping);
60s for PM fibers (coating clamping)
Heating Time
90sfor 60mm sleeves,95s for 40mm sleeves,40s for 25mm sleeves
Return Loss
>60dB
Tensile Strength
Typical 300kpsi (25N) with coating clamping
Magnification
133X & 266X
Monitor
5” 8-color LCD monitor
Video Output
PIN
Data Interface
Serial, USB ver. 2.0, and Ethernet
Splice Programs
55 Default/150 Available
Splice Memory
Maximum 2000 splices
Operating Temperature
0 to +40 ºC (without excessive humidity)
Storage Temperature
-40 to +60 ºC (without excessive humidity)
Power Source
AC 100 to 240V (50-60Hz) with AC adapter
