Fujikura FSM-50R8 Mass Fiber Fusion Splicer

Manufacturer:

Fujikura

Model:

FSM-50R8

Condition:

Used

Availability:

Price:

$.00

Description:

Feature

The FSM-50R12 offers numerous improvements to increase productivity and provide additional flexibility. A new “auto load” feature provides for fast and easy placement of the fiber holders into the splicer. The FSM-50R12 also benefits from a greatly improved tube heater which shrinks a 12 fiber splice protection sleeve in approximately 45 seconds.
Other enhancements include larger capacity batteries, dual direction monitor, and real time arc calibration. The FSM-50R12 quickly attaches to our newly redesigned ASW-02 workstation, making field portability a breeze.

Feature:
• FSM-50R12: Splicing up to 12-fiber ribbon
• Cladding alignment with fixed V-grooves
• Dual-directional operating system
• Arc calibration-free system
• Automatic fiber loading system
• Large capacity slot-in battery
• Simple operation steps
• 45 second tube heater
• Dual direction monitor position
• Long life batteries (up to 140 splices/shrinks per charge)

Details

Model	FSM-50R12: Mass fusion splicer up to 12-fiber FSM-50R8: Mass fusion splicer up to 8-fiber
Applicable fibers	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU –T G.653), NZDS (ITU-T G.655)
Fiber Count	FSM-50R12: Single, 2, 4, 5, 6, 8, 10 and 12 FSM-50R8: Single, 2, 4, 5, 6 and 8
Fiber cleaved length	10mm
Actual average splice loss	0.05dB with SM, 0.02dB with MM, 0.08dB with DS, and 0.08dB with NZDS. Measured by cut-back method relevant to ITU-T and IEC standards.
Splicing time	Typical 20seconds
Return loss	>>60dB
Splicing modes	40 user programmable modes and up to 60 modes for reference (factory predetermined setting).
Splice loss estimate	Available
Storage of splice result	FSM50R12: The last 400 results to be stored in the internal memory. FSM50R8: The last 500 results to be stored in the internal memory.
Fiber display	X / Y, or both X and Y simultaneously.
Magnification	FSM-50R12: 35x FSM-50R8: 49x
Viewing method	Two CMOS cameras and 5.6inch color LCD monitor.
Operating condition	0 to 3,660m above sea level, 0 to 95%RH and -10 to 50 ℃ respectively.
Mechanical proof test	2N
Tube heater	Built-in tube heater with 10 heating modes and up to 20 modes for reference.
Tube heating time	Typical 40seconds with FP-04(T), 45seconds with FP-05 protection sleeves.
Applicable protection sleeve length	60mm and 40mm
No.of splice/heating with battery	Typical 70 cycles with BTR-06(S) / Typical 140 cycles with BTR-06(L)
Power supply	Auto voltage selection from 100 to 240V AC or 10 to 15V DC with ADC-11, 13.2V DC with BTR-06(S)/(L).
Terminals	USB 1.1 (USB-B type) for PC communication. Video terminal RCA video jack / NTSC.
Wind protection	Max. wind velocity of 15m/s.
Dimensions	150W x 150D x 150H (mm)
Weight	2.2 kg (2.7kg including AC adapter ADC-11)
Operation languages	15 type of languages

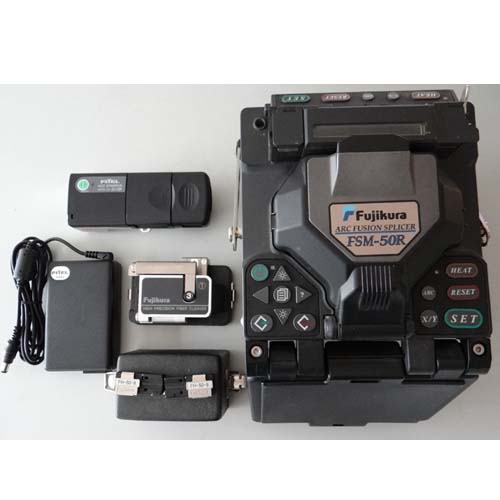

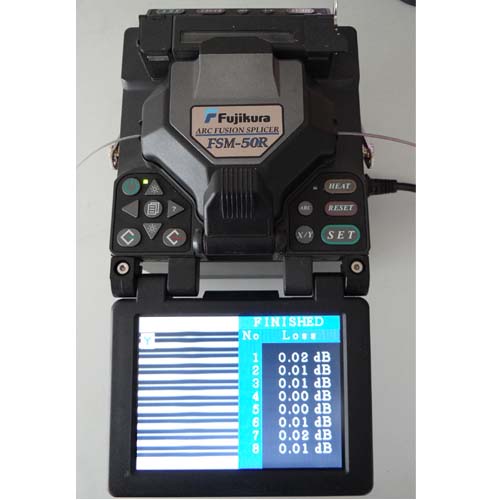

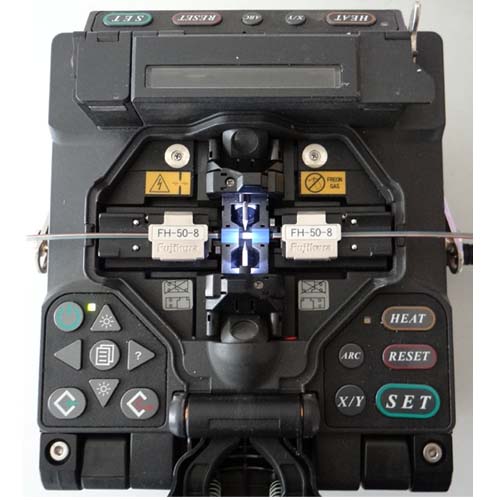

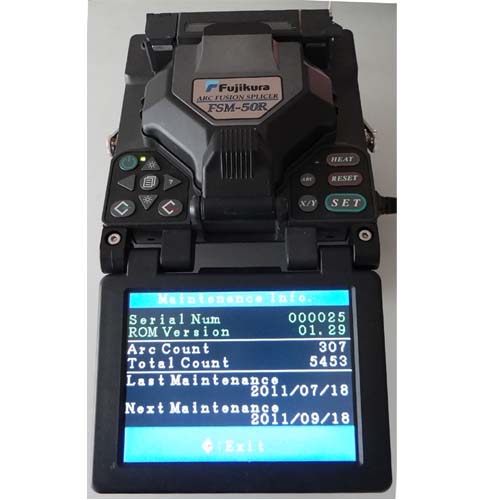

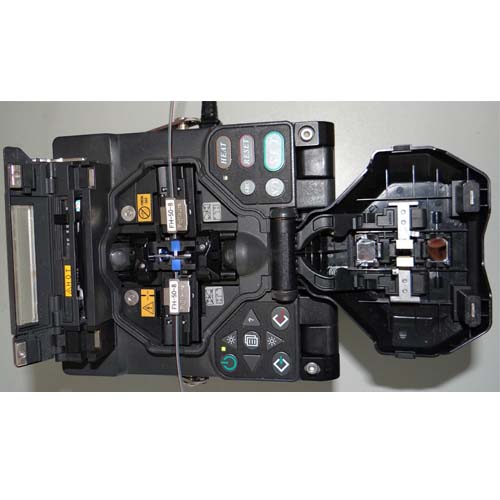

Used Fujikura FSM-50R8 ribbon fiber fusion splicer kit,Including:
a) Arc Fusion Splicer Model: FSM-50R8 -1pc
b) AC adapter / Battery charger Model: ADC-11 -1pc
c) Fiber holders Model: FH-50-8 - 1 pair
d) AC power cord Model: ACC-XX 1pc
e) Spare electrodes Model: ELCT2-20A - 1pair
f) Battery pack Model:BTR-06S 1pc
g) High precision fiber cleaver Model: CT-30- 1 pc
h) V-Groove Cleaning brush , 1pc
i) Thermal jacket stripper Model: Fitel S218R/S952/S944 - 1set
