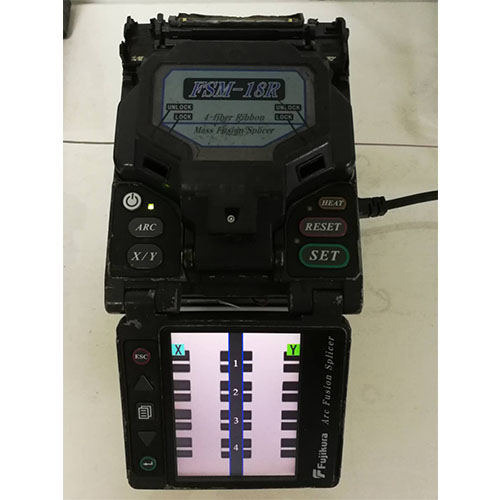

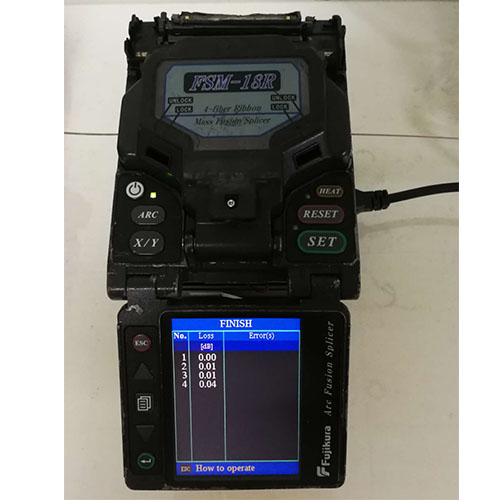

Fujikura FSM-18R Rribbon Fusion Splicer
Manufacturer:
  Fujikura
Model:
  FSM-18R
Condition:
  Used
Availability:
  Yes
Price:
  $.00
Qty:
Description:

   Feature
The Fujikura Fusion Splicer – FSM-18R is a 4-fiber ribbon splicer with similar versatility and robust nature of the Fujikura 12-fiber ribbon splicer. Well-suited for FTTx or LAN applications, the FSM-18R fusion splicer can splice up to 4 fibers, as well as, single fibers. The enhanced robust features provide resistance to shock, dust, and rain to minimize downtime and improve operational performance and withstands a 30” drop test.

Automated features such as auto-start splicing, auto-start tube heater operation, automatic ribbon fiber identification, and auto-arc calibration reduce operational steps and improve splicing performance. Additional improvements include automatic image orientation when switching the dual position monitor, a large capacity battery option and the ability to charge the battery during splicer operation.

New software included with each splicer provides the ability to download splice data to a PC for splice data reporting, download splicer operating software via the internet to maintain peak performance, and download video images from the splicer to enhance technical support.


Features:

  • Highly durable – designed for tough environments
  • Suitable for splicing up to 4-fibre ribbon
  • Cladding alignment with fixed V-groove
  • Auto-start tube heater
  • Splice image capture facility
  • Software upgrade via Internet
  • Includes multi-function worktable
   Details

Specifications:

Applicable fibres SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fibre Count Single, 2 and 4
Cladding diameter 125µm
Coating diameter Ribbon fibre thickness 250 and 400µm. Single fibre 250 and 900µm
Fibre cleaved length 10mm using FH-50-xx fibre holders, FH-60-250 and FH-60-900
Actual average splice loss 0.05dB with SM, 0.02dB with MM, 0.08dB with DS, 0.08dB with NZDS.
Measured by cut-back method relevant to ITU-T standards.
Splice time Typical 20sec. with standard SM fibre
Return loss 60dB or greater
Splicing modes Total number available equals 100; for pre-set modes and user programmable modes
Splice loss estimate Cladding axis offset are taken into account for accurate loss estimate
Storage of splice result The last 2000 results to be stored in the internal memory
Fibre display X/Y, or both X and Y simultaneously
Magnification 35x for single X or Y view, or 35x for X and Y view changeable to 90x
Viewing method By two CMOS cameras for fibre viewing and 4.1inches TFT colour LCD monitor
Image change over The fibre image is turned upside down automatically according to the monitor position
Operating condition 0-3660m above sea level, 0-95% RH and -10 to 50°C respectively.
Mechanical proof test 2N (standard)
Tube heater Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
Tube heat time Typical 40sec.with FP-03 protection sleeve.
Applicable protection sleeve length 60mm, 40mm and a series of micro sleeves.
No. of splice/heating with battery 90 cycles with BTR-08.
Power supply Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-13. 13.2Vd.c. with BTR-08
Terminals USB1.1 (USB-Mini B) for data and video signal transfer to PC
Wind protection Max. wind velocity of 15m/s
Dimensions 136(W) x 161(D) x 143(H) mm
Weight 2.1kg, with ADC-13 AC Adaptor, 2.5kg, with BTR-08 Battery
