Home Optical Power Meter >> Power Sensor & Optical Head >> Newport 2936-R Dual-Channel Optical Power Meters Mianframe
Optical Power Meter

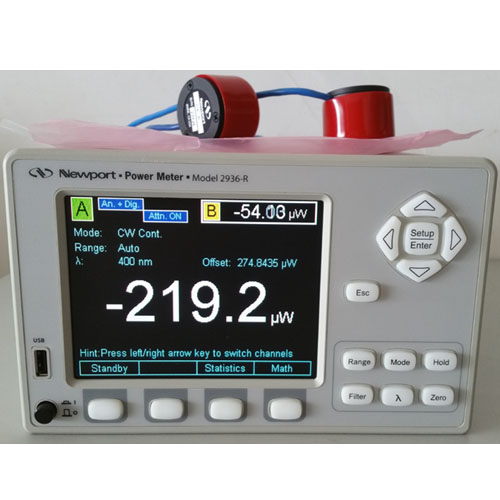

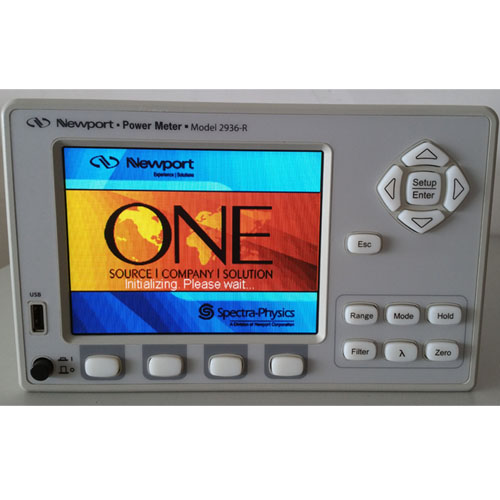

Newport 2936-R Dual-Channel Optical Power Meters Mianframe
Manufacturer:
  Newport
Model:
  2936-R
Condition:
  Used
Availability:
  2 pcs
Price:
  $2,600.00
Qty:
Description:
Newport 2936-R Dual-Channel Optical Power Meters Mianframe.

   Feature
The RoHS compliant 1936-R and 2936-R optical power and energy meters, replacing 1936-C and 2936-C, are one of the most sophisticated optical power meters available in the market.
  • Most advanced optical power and energy meters in the market
  • Patented self-centering zoom bar graph and Auto-Scaling Strip Chart
  • Windows 7, 8 and XP, 32 and 64 bit compatible software
  • Superb sensitivity, accuracy, and speed
  • Measurement repition rates up to 10 kHz
Specifications:

Number of Channels
2
Computer Interfaces
USB and RS-232
Sampling Rate
250 kHz
Compatible Detectors

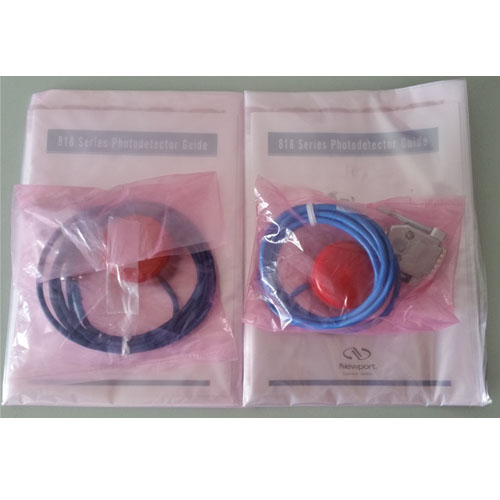

818-xx/DB, 918D (photodiode), 818P, 919P (thermopile), 818E (pyroelectric)
Data Storage
250,000 Point Internal Storage, External Storage Defined by User Supplied USB Drive
Analog Output
0-1 V, 0-2 V, 0-5 V or 0-10 V (user selectable output impedance)
Bandwidth
Up to 500 kHz (Photodiode), Up to 1 MHz (Thermopile or Pyroelectric), depending on Range
Accuracy
±0.2 % for CW, ±1 % for Peak to Peak, Pulse to Pulse, and Integration Mode
Detector Input
Up to 25 mA for photodiode, 130 V for thermopile and pyroelectric detectors
Display Mode
20 mm Numeric, Bar Chart, Min/Max Bar, Statistics, Analog Needle
Display Type
5.7 in. Graphical TFT LCD, ¼ VGA
Display Refresh Rate
20 Hz
Photodiode Measurement
Average Power, Peak-to-Peak Power, Frequency
Thermopile Measurement
Average Power, Single Shot Energy
Pyroelectric Measurement
Pulse Energy (Single or Continuous)
Frequency Measurement Range
1 Hz - 250 kHz
Measurement Rate
Up to 10 kHz pulses for pyroelectric, Up to 20 kHz for photodiode (peak to peak measurement)
Gain Ranges
8 ranges, 7 decades
Resolution
0.0004% of Range Full Scale
Power Requirements
90-240 VAC
Dimensions
308 x 216 x 133 mm
Weight
5.6 kg
Operating Temperature
5 to 40°C, <70% RH
Storage Temperature
-20°C to 60°C, <90% RH
CE
Compliant
RoHS
Compliant
