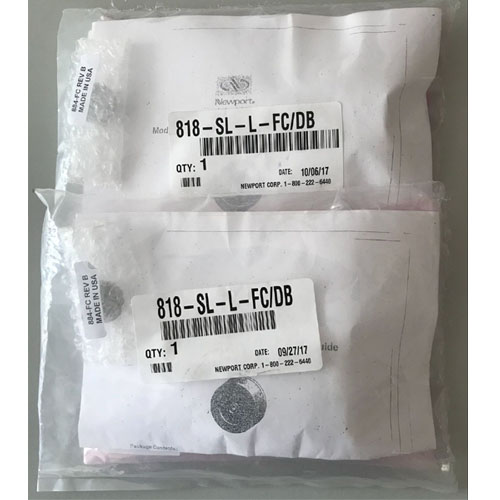

Newport 818-SL-L-FC/DB Fiber Optic Detector

Manufacturer:

Newport

Model:

818-SL-L-FC/DB

Condition:

New

Availability:

2 pcs

Price:

$580.00

Qty:

Description:

Feature

Description

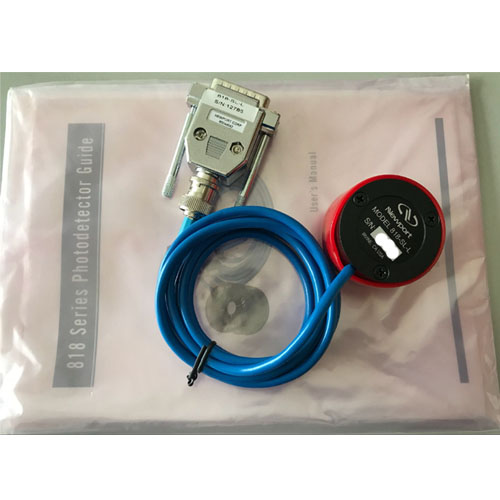

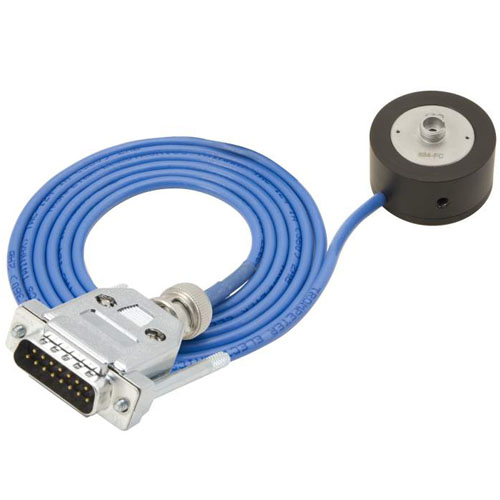

The 818-SL-L-FC/DB is a flexible fiber optic detector that can easily be converted to a free space detector simply by removing the 884-FC fiber optic adapter installed on it. It is compatible with all the current Newport optical power meter models that have a DB15 interface. Please note that models 818-SL-L and 818-SL-L/DB are no longer available for purchase. Purchase 818-SL-L-FC/DB and remove the connector and/or the fiber adapter.

Technical Specs

Detector Type	Fiber Optic
Material	Silicon
Sensor Size	Ø11.3 mm
Spectral Range	400 - 1100 nm
Rise Time	≤2 µs
Maximum Measurable Power	4 mW with 1830-R and 1936-R, 2.5 mW with 843-R, 1919-R, and 841-PE-USB
Minimum Detectable Power	20 pW with 1936-R/2936-R, 100 pW with 1830-R, 5 nW with 1918-R, 100 pW with 843-R
Connector Type	DB15
Calibration Uncertainty without Attenuator	1% @ 400-920nm 4% @ 921-1100 nm
Linearity	±0.5 %
Uniformity	±2 %
Cable Length	1.5 m
RoHS	Not compliant
