Home Fusion Splicer & Accessories >> Fusion Splicer >> Sumitomo Type-45M Ribbon Fusion Splicer
Fusion Splicer & Accessories

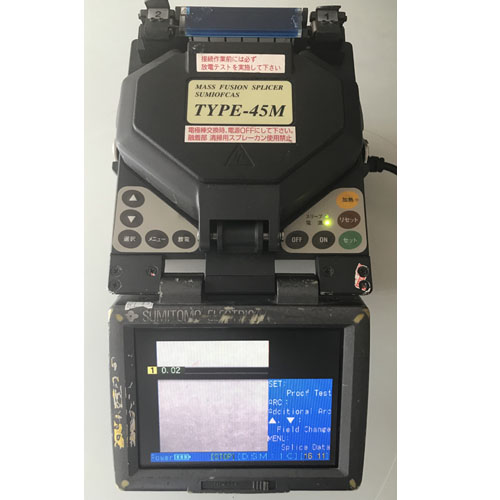

Sumitomo Type-45M Ribbon Fusion Splicer
Manufacturer:
  Sumitomo
Model:
  Type-45M
Condition:
  Used
Availability:
  Yes
Price:
  $2,500.00
Qty:
Description:

   Feature
Features:
● Compact/light weight and suitable for aerial splicing
● Both power sources, AC adapter and battery, are available.
● The portable capability of the T-45M has been improved using the slot-in AC adapter/battery.
● Newly developed FFES optical system provides high speed splicing and clear fiber image, which allows visual check. (FFES-Full fiber in Focus in Equal Size)
● Newly developed heater is capable of high speed heating operation.
● 40 consecutive splicing/heating operation with one fully charge battery.
● The mounting of a large wind protector enables splicing operation in 15m/s strong wind.
● 5.6 inch large TFT color monitor provides clear fiber image even in direct sunlight.
● Protection glass attached to mirror gives you much easier cleaning and maintenance.
● White LED illumination enables identification of a ribbon color and fiber loading even at dark places.
● Automatic arc test insures an optimum arc is achieved for various environmental conditions, as well as splicing different manufactures fiber.
   Details
Applicable fiber
Material
Silica glass
Fiber type
Single mode (SMF), Multi-mode (MMF),Dispersion shifted (DSF),Non-zero dispersion shifted (NZ-DSF)
Fiber diameter
125um
Cleave length
10mm
Number of fibers
Single fiber (0.25mm, 0.9mm), 2~4 fiber ribbon
Standard performance (Typical)
Splice loss (Identical fibers)
SMF:0.05dB ,MMF: 0.03dB,DSF : 0.07dB,NZ-DSF: 0.05dB
Splice cycle time
25 sec (4-fiber ribbon)
Heater cycle time
75 sec (4-fiber ribbon)
Splice cycle per full charge of battery
20 cycles (4-fiber ribbon, including heater, using JR-5)
Splice programs
48 (max.)
Heating Programs
10 (max.)
Functions
- Splice loss estimation
- Splice data storage (250 splicing)
- Fiber condition data storage
- Screening of spliced portion (Tension 1.96N(200gf))
- Built-in high speed heater for thermal protection (Applicable for 40, 60mm sleeve)
- Arc test (With environmental effect compensation function)
- V-groove guide
Dimensions
Size
150(W) x 150(D) x 150(H) mm
Weight
Approx. 3kg
Monitor display
5.6-inch large TFT color monitor
Power supply
AC 100-240V, (50/60Hz)
DC 12V
