Home Fusion Splicer & Accessories >> Fusion Splicer >> Sumitomo Type-66M8 Dual Heater Mass Fusion Splicer
Fusion Splicer & Accessories

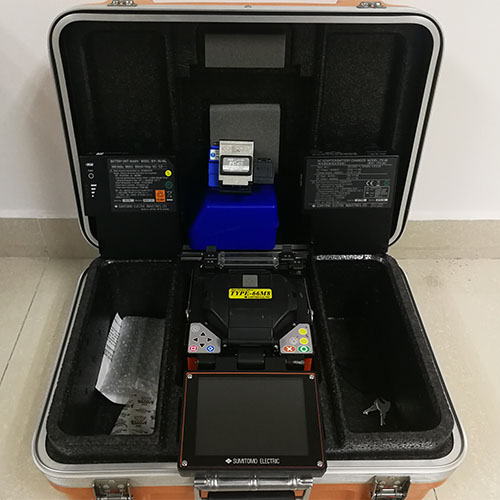

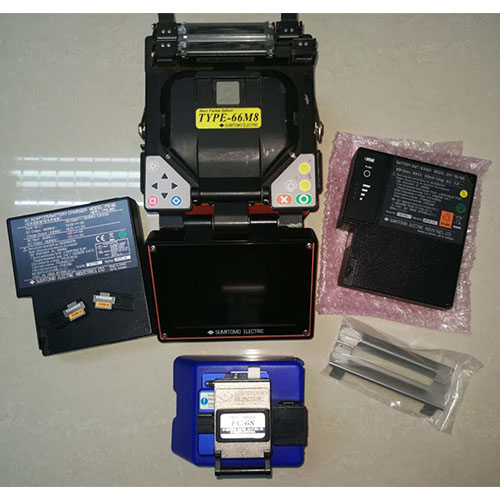

Sumitomo Type-66M8 Dual Heater Mass Fusion Splicer
Manufacturer:
  Sumitomo
Model:
  Type-66M8
Condition:
  Used
Availability:
  2 pcs
Price:
  $.00
Qty:
Description:

   Feature
 The Type-66 TuffCat mass fusion splicer features the industry’s first Dual-Automatic- Splice Protection Sleeve Heater System — Sumitomo’s exclusive patent-pending innovation. The dual heater system’s simultaneous operation helps to eliminate squandered time waiting for a single heater system to complete its cycle. Instead, the streamlined splicing process reduces the bottle neck of “heater wait time” by 88%, improving mass splicing efficiency and productivity in the field by 70%.
The TuffCat features an effortless fiber holder system to increase splice repeatability while making the unit easy to use regardless of the operator’s experience level. Utilizing precision v-groove alignment, the TuffCat can be used for all types of ribbon and single splicing with an optimum arrangement for ease of use in trunk, aerial, or taut-sheath applications.

The TuffCat mass fusion splicer embodies Sumitomo’s mission of customer focused engineering by reducing the customer’s overall cost of ownership. The unit features electrodes common with both the Type-39 FastCat and Type-25e TomCat splicers to reduce the customer’s inventory cost, as well as simplifying the ordering process. The Type-66 fiber holders are compatible with the Type-25e TomCat handheld splicers, as well as existing Sumitomo Type-61, 62, 63 and 65 fusion splicers.

Features:
● Dual Independent Splice Protection Sleeve Heaters
● RoHS Compliant
● Splice-On-Connector Compatible
● 5.6” Switchable Color Monitor for Front to Back or Back to Front Operation
● Automatic Splice Start
● Automatic Heater Start
● Fiber Alignment Vibration Clamps
● Extended Life Battery: 140 Splices & Heater Cycles per Charge
● User-Friendly Menu Selection System with On-Screen Assistance
● Spanish Language Option Standard
● 24-Hour Technical Support via 888-SPLICER
   Details
Specifications

Alignment Method
 Fixed V-groove
RoHS
Compliant (engineered to be more environmentally friendly)
Fiber Requirement
Silica Glass
Number of Fibers
1-12
Fiber Placement
Fiber Holder System (Unified Holders for Type-25e/Type-66/Type-65)
Cladding Diameter
125μm
Coating Diameter
Ribbon 250μm ,Single: 250 and 900μm
Typical Splice Time
20 seconds

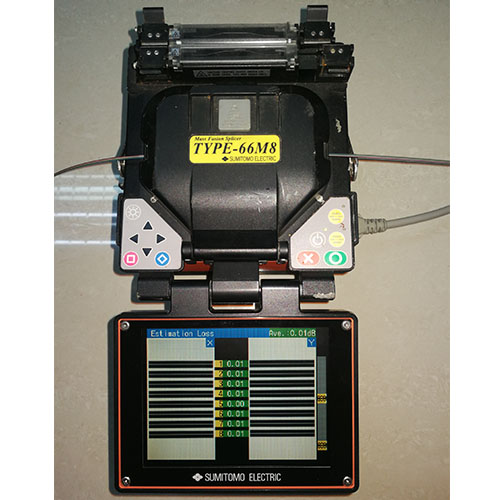

Typical Splice Loss
SMF: 0.04dB, MMF:0.03dB, NZ-DSF: 0.07
Built-In Dual Splice Protection Sleeve Heaters
Dual Independent Splice Protection Sleeve Heater
Heater Cycle Time
Heater 1 40 seconds, Heater 2 40 seconds
Arc Test Compensation
Automatic
DC (Battery Operation)
Standard: 70 Splices & Heater Cycles
Extended Life: 140 Splices & Heater Cycles
Arc Test
Automatically Compensates for Environmental Conditions
Interface
USB for PC Interface
RCA Jack for External Monitor
12 Volt DC Output for Accessories
Display Type
5.6 Inch Color TFT Low Glare High Resolution Color Monitor
Display Positions
Multiple Positional for Front to Back/ Back to Front Work Flow
Lynx—CustomFit™ Splice-On Connector
Compatible
Splice Data Storage
2000 Splice Points


Physical Characteristics
Size
 150W x 150D x 150H mm (5.9W x 5.9D x 5.9H)
Weight
2.7 kg (5.95 lbs)
Power Requirement
Input: 100 to 240V AC; 5-/60Hz, 12V DC
Display
5.6 Inch TFT Low Glare High Resolution Color Monitor
Wind Protection
30 mph (15 m/s)
Battery Operation
Standard 70 Splices & Heater Cycles
Extended Life 140 Splices & Heater Cycles
