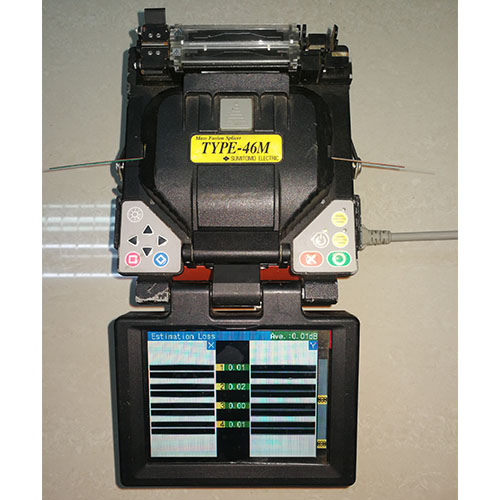

Sumitomo Type-46M4 Dual Heater Mass Fusion Splicer

Manufacturer:

Sumitomo

Model:

Type-46M4

Condition:

Used

Availability:

1 pc

Price:

$2,800.00

Qty:

Description:

Feature

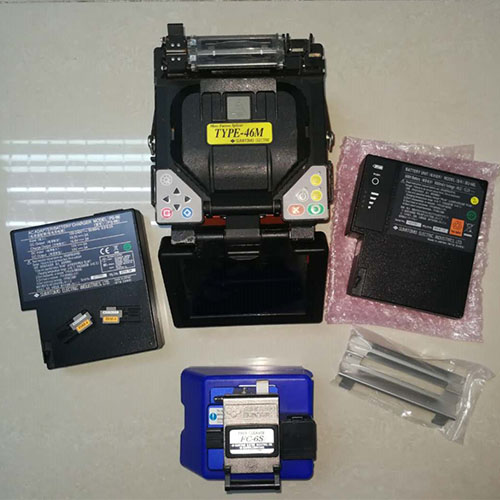

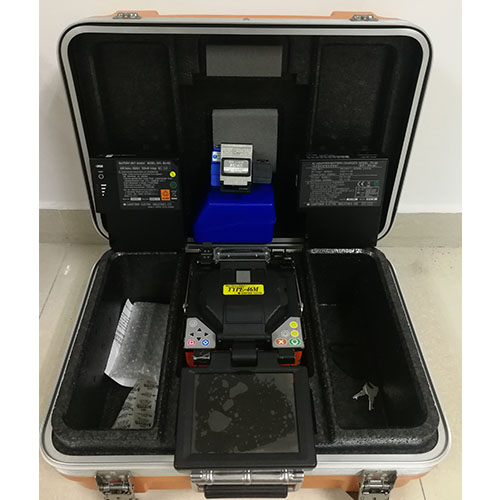

Including:Type-46M mainframe, FC-6S cleaver,BU-66L battery,PS-66 AC adapter, FHM-4 fiber holder,carry case, ER-10 electrodes,battery charge cord, power cord, S218R stripper......

Features:
● Dual Independent Splice Protection Sleeve Heaters

● RoHS Compliant

● Splice-On-Connector Compatible

● 5.6” Switchable Color Monitor for Front to Back or Back to Front Operation

● Automatic Splice Start

● Automatic Heater Start

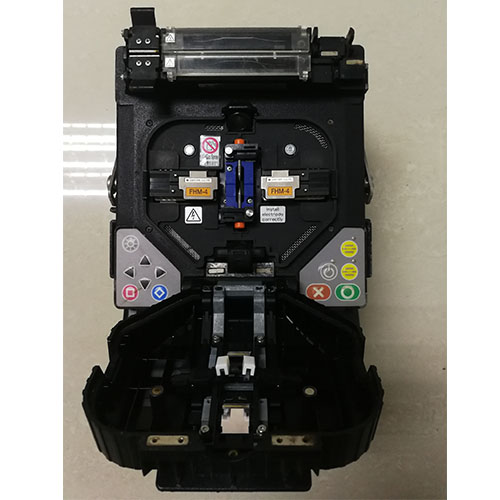

● Fiber Alignment Vibration Clamps

● Extended Life Battery: 140 Splices & Heater Cycles per Charge

● User-Friendly Menu Selection System with On-Screen Assistance

● Spanish Language Option Standard

● 24-Hour Technical Support via 888-SPLICER

Details

Specifications

Alignment Method	Fixed V-groove
RoHS	Compliant (engineered to be more environmentally friendly)
Fiber Requirement	Silica Glass
Number of Fibers	1-4
Fiber Placement	Fiber Holder System (Unified Holders for Type-25e/Type-66/Type-65)
Cladding Diameter	125μm
Coating Diameter	Ribbon 250μm ,Single: 250 and 900μm
Typical Splice Time	20 seconds
Typical Splice Loss	SMF: 0.04dB, MMF:0.03dB, NZ-DSF: 0.07
Built-In Dual Splice Protection Sleeve Heaters	Dual Independent Splice Protection Sleeve Heater
Heater Cycle Time	Heater 1 40 seconds, Heater 2 40 seconds
Arc Test Compensation	Automatic
DC (Battery Operation)	Standard: 70 Splices & Heater Cycles Extended Life: 140 Splices & Heater Cycles
Arc Test	Automatically Compensates for Environmental Conditions
Interface	USB for PC Interface RCA Jack for External Monitor 12 Volt DC Output for Accessories
Display Type	5.6 Inch Color TFT Low Glare High Resolution Color Monitor
Display Positions	Multiple Positional for Front to Back/ Back to Front Work Flow
Lynx—CustomFit™ Splice-On Connector	Compatible
Splice Data Storage	2000 Splice Points

Physical Characteristics

Size	150W x 150D x 150H mm (5.9W x 5.9D x 5.9H)
Weight	2.7 kg (5.95 lbs)
Power Requirement	Input: 100 to 240V AC; 5-/60Hz, 12V DC
Display	5.6 Inch TFT Low Glare High Resolution Color Monitor
Wind Protection	30 mph (15 m/s)
Battery Operation	Standard 70 Splices & Heater Cycles Extended Life 140 Splices & Heater Cycles
