--Fiber Stripper--Fujikura RS03 Thermal Jacket Stripper

Fujikura RS03 Thermal Jacket Stripper

Manufacturer:

Fujikura

Model:

RS03

Condition:

New

Availability:

1 pc

Price:

$.00

Qty:

Description:

Feature

● 20％ less gripping force compared to previous model

● Quicker Heating Time

● Bluetooth capability for wireless connection with Smartphones

● High capacity battery approx. 600times (RS03)

● Coating diameter available from 200μm to 400μm

SPECIFICATIONS

	RS02	RS03		RS03-80
Applicable optical fiber	Glass optical fibers
Fiber count	1 to 12			Single
Cladding diameter	125μm			80μm
Coating diameter	200 to 400 μm			150 to 250 μm
Stripping length	Up to 35mm
Typical heating time	3sec. 5sec. at Eco mode
Heating temperature	100℃ (Standard)
Fiber holder	FH-50series, FH-60series, FH-100series Except for FH-50-250
Wireless connectivity	Bluetooth®4.1※1 OS：Android 5.0 or above , iOS 8.0 or above（iPhone6 or above）
Dimensions	156(W)×49(D)×37(H)mm			156(W)×49(D)×33(H)mm
Weight	185g			265g(with Battery)
Power supply	100 to 240V AC with optional AC adapter, ADC-09A DC10～17V with external DC power supply : DC7.4V with Battery pack , BTR-12(Rechargeable Lithium-ion battery )
Battery capacity			1620mAh： Typical 3.5h , 600 times at Eco mode
Operating conditions	Temperature: -10 to 50°C, Humidity: 0 to 95% RH (Non-condensing)
Storage conditions	Temperature: -20 to 60°C, Humidity: 0 to 95% RH (Non-condensing)
Resistance feature	Shock resistance : 76cm (30inch) all surface drop(Telcordia GR -955-CORE) Rain resistance : H=10mm/hr for 10min(JIS C 0 034)

Details

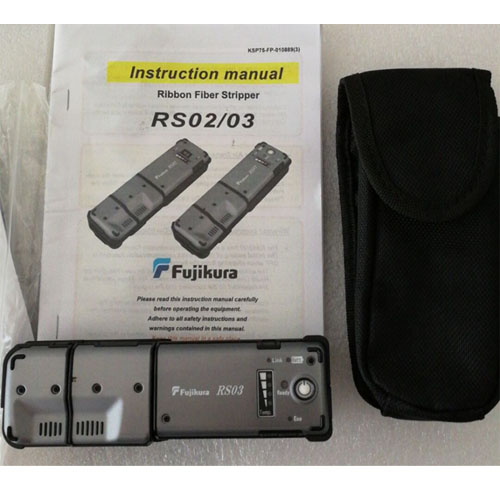

STANDARD PACKAGE

Description	Model	RS02	RS03	RS03-80
Main body	RS02	1pc	-	-
	RS03	-	1pc	-
	RS03-80	-	-	1pc
Battery pack	BTR-12	-	1pc
DC power cord	DCC-11	1pc	Option
AC adaptor	ADC-09A	Option	1pc
AC power cord	ACC-xx	Option	1pc, selectable ACC •08: Japan type •09: USA type •10: UK type •11: EU type •12: Australia type
Instruction manual	M-RS02/03-E	1pc
Hexagon wrench	HEX-01	1pc
Brush	BRS-02	1pc
