Home Power Meter & Heads >> EXFO FPM-602-FOA-22 High-Power Optical Power Meter,FC
Power Meter & Heads

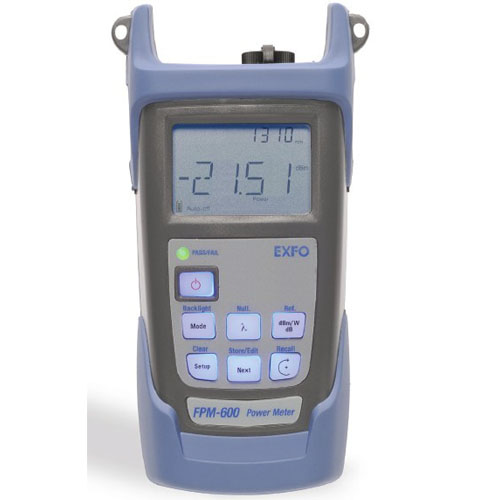

EXFO FPM-602-FOA-22 High-Power Optical Power Meter,FC
Manufacturer:
  EXFO
Model:
  FPM-602
Condition:
  New
Availability:
  Yes
Price:
  $750.00
Qty:
Description:

   Feature
The highly versatile FPM-600 Power Meter is the ideal tool for link and system qualification. Thanks to its memory capacity of 1000 data items and converter software, it facilitates data management and enables data transfer to a PC via USB connection. The FPM-600 features a green/red LED indicator that gives you a pass or fail test verdict according to the thresholds you have defined.

Features:
● High accuracy, wide dynamic range and high power measurement capability (up to 26 dBm)
● Memory capacity of 1000 data items; enables data transfer to a PC via USB connection
● User-configurable pass/fail thresholds with LED indicator
● Over 40 calibrated wavelengths, and Hold Min/Max Power function
● Rechargeable batteries
●Error-free, time-saving test features: automatic wavelength switching,no offset nulling
● Low cost of ownership: three-year warranty and recommended calibration interval
   Details
SPECIFICATIONS
Model
FPM-602
FPM-602X
Detector
Ge
GeX
Power range (dBm)
10 to –70
26 to –55
Wavelength range (nm)
800 to 1650
800 to 1650
Calibrated wavelengths
 (nm)
800, 820, 830, 840, 850, 860, 870, 880, 910, 980, 1270, 1280, 1290, 1300, 1310, 1320, 1330, 1340, 1350, 1370, 1390, 1410, 1430, 1450, 1460, 1470, 1480, 1490, 1500, 1510,1520, 1530, 1540, 1550, 1560, 1570, 1580,1590, 1600, 1610, 1620, 1630, 1640, 1650 (FPM-602X plus 1060)
Power uncertainty
±5 % ± 0.1 nW
±5 % ± 3 nW
Resolution (dB)
±0.01 (10 dBm to –60 dBm)
±0.01 (26 dBm to –45 dBm)
Automatic offset nulling
Yes
Yes
Display units
dB, dBm, W
dB, dBm, W
Tone detection
270 Hz, 1 kHz and 2 kHz
270 Hz, 1 kHz and 2 kHz
Auto-switching
Yes
Yes
Warm-up period (min)
0
0
Data storage (items)
more than 1000
more than 1000
Battery life (hours) (typical)
72
72
Warranty and recommended
recalibration interval (years)
3
3

GENERAL SPECIFICATIONS
Size (H x W x D)
190 mm x 100 mm x 62 mm
Weight
0.48 kg (1.1 lb)
Operating Temperature
–10 °C to 50 °C
Storage Temperature
–40 °C to 70 °C
Relative humidity
0 % to 95 % non-condensing

STANDARD ACCESSORIES:
User guide, Certificate of Calibration, instrument stickers in six languages, AC adapter/charger, lithium ion battery, shoulder strap, hard carrying case, USB cable.
