Home Optical Laser Source >> EXFO FLS-600-12D-23BL Multimode & Single Mode Light Source, FC
Optical Laser Source

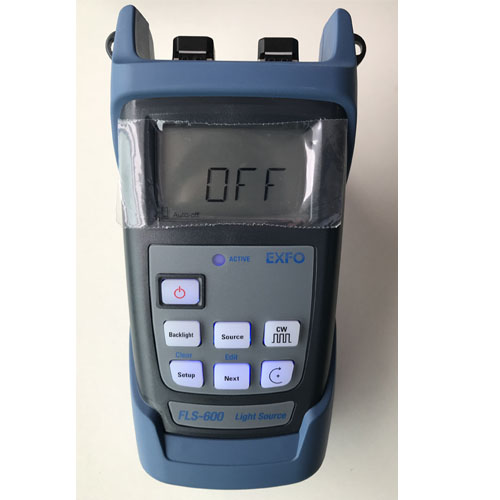

EXFO FLS-600-12D-23BL Multimode & Single Mode Light Source, FC
Manufacturer:
  EXFO
Model:
  FLS-600-12D-23BL
Condition:
  New
Availability:
  Yes
Price:
  $.00
Qty:
Description:

   Feature
Features:
●Up to three singlemode wavelengths (1310, 1550, and 1490 or 1625 nm)
on a single port, or four wavelengths (850/1300 nm and 1310/1550 nm)
on two ports
●Three-year warranty for low cost of ownership
●Error-free, time-saving test features
●Controlled multimode launching output

Part of EXFO’s 600 handheld series, the FLS-600 Light Source is designed
for first-class versatility. Choose among laser, LED models, as well as various
wavelength options. What’s more, you can save time by building a list of your
“favorite” wavelengths and only sweeping through these wavelengths when
testing.
Automatic Wavelength Switching
Using the FLS-600 in Auto-Switching mode allows to automatically toggle
between available wavelengths. When using this source with a compatible
power meter (FPM/FOT-600), the latter recognizes the wavelength in use
and switches to the proper calibration parameter.
Distant Referencing
Signal encrypting can also give the receiving-end information on the power
to be used as reference, helping ensure efficient referencing, even when the
two units are far apart.
FTTx-Ready
EXFO’s FLS-600 allows for the testing of passive optical networks (PONs)
at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended
by the ITU-T (G.983.3) for PONs.
Rugged and Versatile
Like all EXFO portable instruments, the FLS-600 is built for ruggedness,
perfect for the harshest test conditions. It also features a keypad/LCD
backlight, for easy operation in darker environments.
   Details
SPECIFICATIONS
Model
12D
23BL
234BL
235BL
Central wavelength (nm)
850 ± 25
1300 +50/–10
1310 ± 20
1550 ± 20
1310 ± 20
1550 ± 20
1625 ± 15
1310 ± 20
1490 ± 10
1550 ± 20
Spectral width (nm)
50/135
≤ 5
≤ 5
≤ 5
Output power (dBm)
≥ –20/≥ –20 (62.5/125 μm)
≥ 1/≥ 1
≥ 1/≥ –3/≥ –5
≥ 1/≥ –4.5/≥ –3
Power stability (dB) 15 min
                   8 min
±0.05
±0.1
±0.03
±0.1
±0.03
±0.1
±0.03
±0.1
Auto-switching
Yes
Tone generation
270 Hz, 1 kHz, 2 kHz
Battery life (hours)
(typical in Auto mode) 50
Warranty(years)
3


GENERAL SPECIFICATIONS
Size (H x W x D)
190 mm x 100 mm x 62 mm
Weight
0.48 kg
Operating Temperature
–10 °C to 50 °C
Storage temperature
–40 °C to 70 °C
Relative humidity
0 % to 95 % non-condensing
