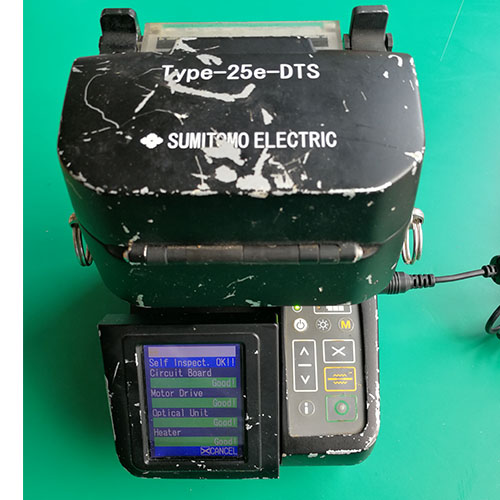

Sumitomo Type-25e-DTS Fusion Splicer

Manufacturer:

Sumitomo

Model:

Type-25e-DTS

Condition:

Used

Availability:

1 pc

Price:

$900.00

Qty:

Description:

Feature

Sumitomo Type-25e-DTS Packing list:
1. Fusion  Splicer  Model: Type-25e-DTS  -1pc
2. AC adapter,  Model:  ADC-1240 -  1pc
3. AC  power  cord  Model:  ACC-XX  -1 pcs
4. Hard Carrying  case, 1pc
5. Fiber  cleaver  Model:  S324-  1  pc
6. Fiber holders, Model: FHS-025- 1pair
7. Fiber stripper Model: FO103S- 1pc

Sumitomo Type-25e TomCat Handheld Fusion Splicer incorporates all the features, functions, and proven reliability of the Type-25 family—the industry’s most popular handheld splicers for FTTx, premise, and restoration applications—but with numerous enhancements. The new TomCats feature improved optical technology utilizing your choice of an economical one camera system or an industry standard dual camera splice loss estimation system. The improved optical technology, combined with a quicker splice protection sleeve heater, allows the unit to deliver a typical splice time in less than 11 seconds for SMF or MMF.

Features

Dual Camera Splice Loss Estimation
Economically Priced Single Camera Unit
60 Splice & Heat Shrinks per Battery Charge
Multiple Language Options Including Spanish
User-Friendly Menu Selection System
Built-in Battery Charger
Unified Electrodes for Type-25e/Type-66/Type-39/TypeQ101
AC Adapter Incorporated within Unit
Lynx2 CustomFit® Splice-On Connector Compatible
Automatic Arc Test Function

Specifications

	Type 25eU	Type 25eS	Type 25eM
ROHS	Compliant (engineered to be more environmentally friendly)
Alignment Method	Fixed V-Groove
Applicable Fiber Types	SM, MM, DSF, NZ-DSF
Fiber Count	1ct.	1ct.	Up to 4ct Ribbon
Fiber Placement	Fiber Holder System Unified Fiber Holders for Type-25e/Type-66/ Type-65/Type-39/Type-Q101
Cladding Diameter	125µ
Typical Splice Loss	Identical Fibers
SMF/ MMF	0.10 / 0.04dB	0.05 / 0.03dB	0.05 / 0.03dB
Typical Heaters Cycle	40 Seconds
Typical Splice Time	11 Seconds
Battery Operation	60 Splice & Heat Shrink Cycles per Charge
Arc Test	Automatically Compensates for Environmental Conditions
External Interface	12 Volt DC Output for Accessories USB Port for Quick PC Transfers
Internal Splice Data Storage	1500
Lynx2 CustomFit® Splice-On Connector	Compatible
Powering Options	Internal Battery Charger Internal AC Adapter
