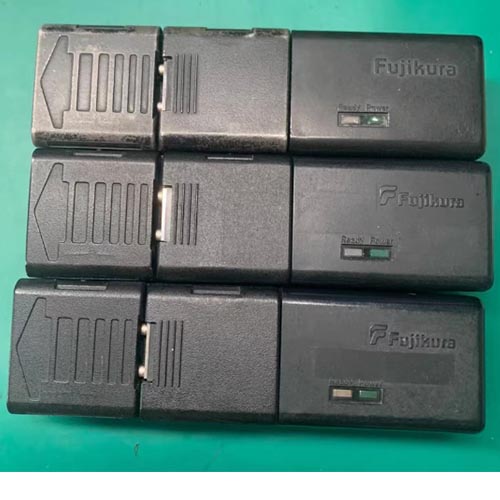

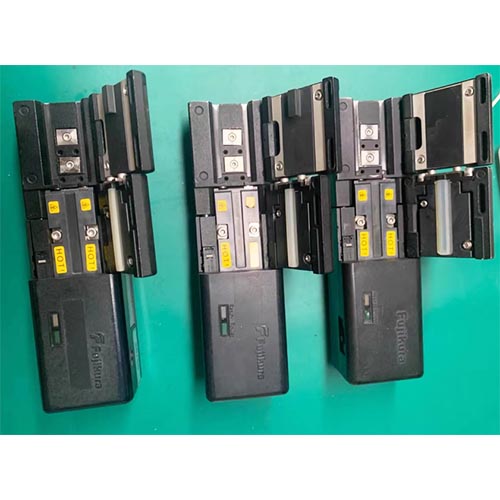

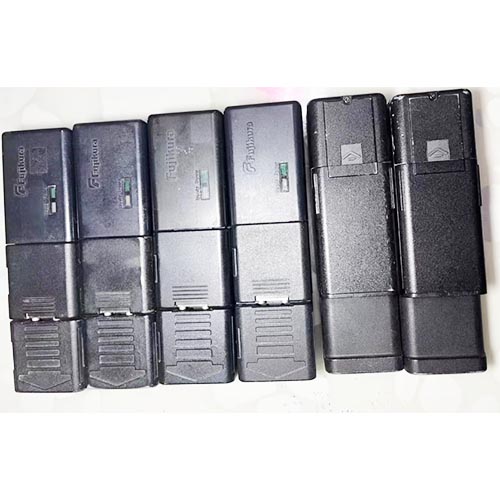

Fujikura HJS-03 Hot Jacket Strippers
The HJS-02, HJS-03 and HJS-03-24 hot jacket strippers provide superior ribbon
andfield-ribbonized stripping performance. They conserve energy with a Power
Save feature when the splicer is operated by battery power. A temperature selection switch provides easy field optimization for different fibers or operating conditions.
An optional single-fiber adapter may be used to provide easy single-fiber capability
for difficult-to-strip fibers. These strippers accept all Fujikura field and factory splicer designed fiber holders. The HJS-03 is a battery powered hot jacket stripper specifically designed for use withthe SpliceMate fusion splicer but it can be used in other applications. The HJS-03-24 hot jacket stripper is designed for smooth and
controlled stripping of 24-fiber ribbon.
Specifications
|
MODEL
|
HJS-02,HJS-03
|
HJS-03-24
|
|
Applicable Fiber Count
|
1 to 12 Fiber Ribbon
|
1 to 24 Fiber Ribbon
|
|
Ribbon Thickness
|
250 μm to 400 μm
|
250 μm to 400 μm
|
|
Stripping Length
|
35 mm maximum
|
35 mm maximum
|
|
Typical Heating Time
|
3 second Normal Mode
8 second Power Save Mode
|
3 second Normal Mode
30 second Power Save Mode
|
|
Standard Heating Temperature
|
100℃
|
100℃
|
|
Dimensions (W x D x H)
|
107 mm x 40 mm x 29 mm
|
149 mm x 58 mm x 36 mm
|
|
Weight
|
195 g (0.43lb)
|
300 g (0.66 lb)
|
|
Power Supply
|
12V DC
|
12V DC
|
|
Operating Conditions
|
-10℃ to 50℃
|
-10℃ to 50℃
|
|
Storage Conditions
|
-40℃ to 80℃
|
-40℃ to 80℃
|
