Description:

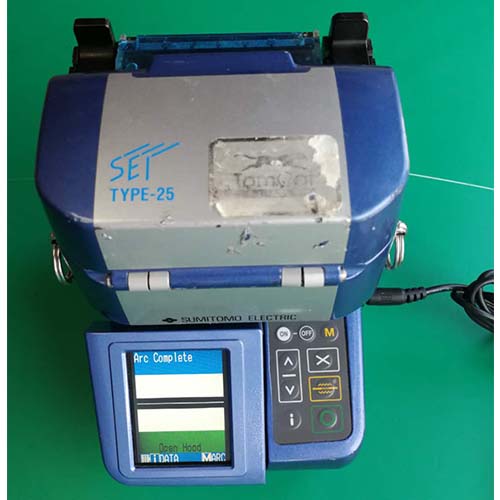

Sumitomo’s TomCat splicers are the industry’s first “full-featured” hand-held fiber splicers offering both the agility and the robustness required for FTTx, premise, and optical component assembly applications. Easy-to-use, easy-to-learn, these portable battery-operated splicers reduce training time for efficient deployments—making fusion splicing the choice for both optimum reliability and affordability.
Included in the “full-featured” distinction of the TomCat splicers are adjustable position monitors that allow the user to observe the fiber during the splicing process. Their front-to-back workflow makes the splicers ideal when limited fiber slack is available, in aerial taut-sheath applications, and for component testing. Sumitomo’s fiber holder system facilitates quick and easy fiber preparation and placement.
The splicers’ small footprints maximize workspace and enable precision splicing at a close proximity to the splice point for optimal flexibility. All TomCat units are optimized for both single-mode and multimode fibers and are manufactured with the same Sumitomo commitment to quality and reliability.
Features:
- Single Camera Splice Loss Estimation
- Compact, Lightweight (3.3lb) Design Simplifies Splicing in Confined Areas.
- 30 Splices on a Single Battery
- Automatic Arc Test Function
- Mounting Holes for Securing the Splicer to a Workstation for Aerial, Pole, & Pedestal Applications
- Fiber Holders Allow for Quick and Easy Fiber Placement
- Automatic Splice in Less than 13 Seconds for SMF or MMF
Specifications:
|
Alignment Method |
Fixed V-Groove |
|
Fiber Requirement |
Silica Glass |
|
Fiber Type |
SMF and MMF |
|
Coating Diameter |
250 & 900µm |
|
Typical Splice Time |
<13 Seconds |
|
Heater Time |
<40 Seconds |
|
Cleave Length |
10mm |
|
Battery Operation |
30 splices (fully charged) |
|
Number of Fiber Programs |
15 |
|
Arc Power Compensation |
Automatic Arc Test |
|
Altitude |
0-3660m(12,000feet) |
|
Operating Temperature |
-10 to 50°C (14 to 122°F) |
|
Storage Temperature |
-40 to 70°C (-40 to 58°F) |
