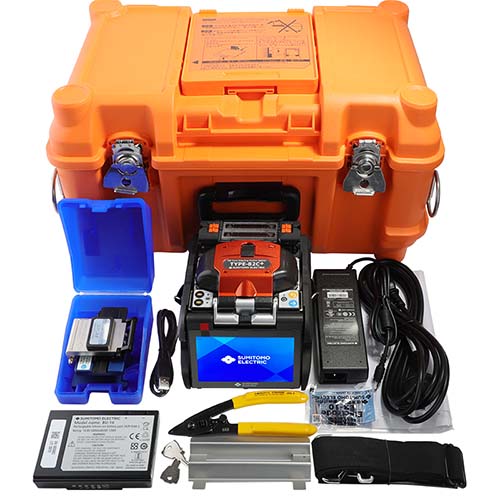

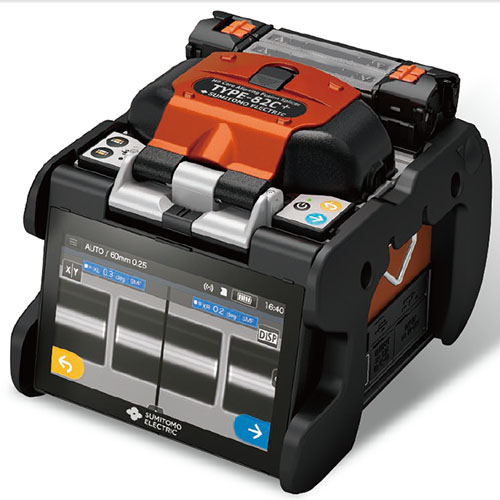

Items |
|
|
Optic fiber requirements |
Material |
Silica glass |
|
Fiber count / Profile types |
Single SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657), CSF(G.654), EDF |
|
Fiber diameter |
Cladding diameter: 80 ~ 150μm, Coating : 100 ~ 1,000μm |
|
Cleave length |
5 ~ 16mm with coating clamp |
|
Standard performance |
Splice loss (typical) |
SMF: 0.01dB, MMF: 0.01dB, DSF: 0.03dB, NZDSF: 0.03dB |
|
Return loss (typical) |
60dB or greater |
|
Splice time (typical) |
5sec(SM G652 Quick Mode), 7sec(SM G652 Std. Mode), 7sec(Auto Mode) |
|
Heating time(typical) |
9sec |
|
Splice & Heat cycles per battery full charge |
Approx. 300 |
|
Fiber view & magnification |
2 CMOS cameras observation,
380X (zoom: 760X) for X or Y single axis view, 270X for both X&Y dual axis view |
|
Proof test |
1.96/2.09N |
|
Applicable protectioin sleeve |
60mm, 40mm, & Sumitomo Nano sleeves |
|
Programs |
Splice programs |
Max. 300, 74 are pre-optimsed, 226 editable by user |
|
Heating programs |
Max. 100, 27 are pre-optimsed, 73 editable by user |
|
Functions |
Splice image capture / Splice data storage |
200 images/10,000 splice data (internal memory only), 50,200/20,000 (with 8 GBSD card) |
|
Attenuation splicing |
0.1dB to 15dB in 0.1dB increments |
|
Universal clamps |
Provided, 250μm, 900μm tight & loose buffer fiber |
|
Reversible coating clamps |
Provided |
|
Dual automatic independent ovens |
Provided |
|
User-selectable oven clamp operation |
Provided |
|
Onboard user training video |
Provided |
|
Automatic fiber identification |
SMF / MMF / DSF / NZDSF / BIF / Other |
|
Automatic arc calibration |
Automatically compensates for enviromental condition changes |
|
Display of remaning Splice & Heat cycles |
Provided (Battery mode) |
|
Wireless LAN connectivity (Option) |
Provided |
|
Size / Weight |
Size |
128(W) x 154(D) x 130(H) mm (withou anti-shock rubber) |
|
Weight |
1.9kg (withou battery) / 2.2kg (with battery) |
|
Monitor |
5.0” touch screen color LCD display |
|
Terminals |
DC output |
DC 12V |
|
USB Port |
USB 2.0 |
|
Storage media |
SD / SDHC memory car MAX 32GB |
|
Power supply |
AC input |
AC 100 - 240V, 50/60HZ |
|
DC input |
DC 10 - 15V |
|
Battery pack |
Li-ion 10.8V, 6400mAh |
|
Operationg condition |
Altitude: 0 - 6000m, Temperature: -10 - +50ºC, Humidity: 0 -95% (non-condensing), Wind velocity: up to 15m/sec |
|
Storage condition |
Temperature: -40 - +80ºC, Humidity: 0 -95% (non-condensing), Battery: -20 - +30ºC (long term) |
|
Electrode life |
6000 arc discharges |
|
Software updates |
Internet |
|
Data management |
Can be stored, edited and analyzed by dedicated PC software |
