Home OTDRs >> OTDR >> JDSU MTS-4000 OTDR
OTDRs
JDSU MTS-4000 OTDR
Manufacturer:
  JDSU
Model:
  MTS-4000
Condition:
  New
Availability:
  Yes
Price:
  $3,400.00
Qty:
Description:
.

   Feature
An all-in-one FTTx test solution for rapid installation and maintenance of fiber networks.

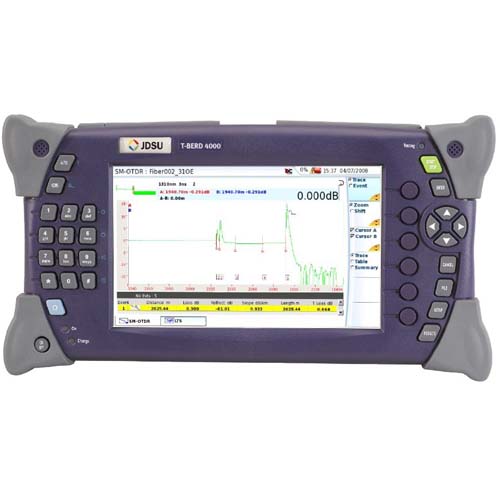

In today’s telecommunications market, optical time domain reflectometer (OTDR) test solutions must be cost-effective, easy-to-operate, and flexible for optimum use in all testing conditions. The JDSU Last Mile (LM) OTDR Module for the T-BERD/MTS-4000Multiple Services Test Platformmeets these challenges for both now and the future.

The LM OTDR Module provides the needed performance with maximum efficiency for any access/FTTx network test application.

As part of the T-BERD/MTS-4000 platform, the LM OTDR Module is ideal for conducting optical access/FTTX network testing. The small form factor of the T-BERD/MTS-4000 platform and lightweight design make it easy to carry in the field. Also, its large screen and comprehensive interface make results easy to interpret and understand even for novice technicians.

Key Features:
• Optimized for access/FTTx networks
• Tests up to three wavelengths in one module
• 32/30 dB Dynamic Range at 1310/1550 nm
• High resolution and short dead zone for distribution fiber qualification
• Automatic traffic detection
• Source and power meter through OTDR port (optional)
• In-service testing dedicated wavelengths (1625 or 1650 nm)
• Automatic macro-bend detection
• Field-replaceable without tools
• Can be combined with PON Power Meter Module in the same T-BERD/MTS-4000 unit
• Up to 128,000 acquisition points with sampling resolution down to 4 cm
• Comprehensive suite of PC software tools for post-processing of test results, including FiberTrace (OFS-100) and FiberCable (OFS-200)

   Details
General Technical Specifications (Typical at 25°C)
Display
TFT color, 7”, LCD 800 x 480, high visibility for outdoor
Touchscreen, TFT color, 7”, LCD 800 x 480, high visibility for outdoor
Weight
0.35 kg (0.77 lb)
Dimensions(W x H x D)
128 x 134 x 40 mm (5.04 x 5.28 x 1.58 in)
Storage
Bellcore/Telcordia-compatible (Version 1.1 and Version 2.0)
Optical interfaces
Applicable fiber
SMF 9/125 μm
Interchangeable optical connectors
FC, SC, DIN, LC (PC or APC) and ST (PC)
Technical characteristics
Laser safety class (21 CFR)
Class 1
Distance units
Kilometers, feet, and miles
Group index range
1.30000 to 1.70000 in 0.00001 steps
Number of data points
Up to 128,000 data points
Distance measurement
Automatic or dual cursor
Display range
1 km to 160 km
Cursor resolution
1 cm
Sampling resolution
4 cm
Accuracy
±1 m ±sampling resolution ±1.10-5 x distance
(Excluding group index uncertainties)
Attenuation measurement
Automatic,manual, 2-point, 5-point, and LSA
Display range
1.25 to 55 dB
Display resolution
0.001 dB
Cursor resolution
0.001 dB
Linearity
±0.05 dB/dB
Threshold
0.01 to 5.99 dB in 0.01 dB steps
Reflectance/ORL measurements
Reflectance accuracy
±2 dB
Display resolution
0.01 dB
Threshold
–11 to –99 dB in 1 dB steps
Power meter (optional)
Power level
–2 to –50 dBm
Measurement wavelengths
1310, 1490, 1550, 1625, and 1650 nm
Calibrated wavelengths
1310, 1550, 1625, and 1650 nm
Measurement accuracy
±0.5 dB


OTDR Module Technical Specifications (Typical at 25°C)
Module
Central wavelength
Pulse width
RMS dynamic range
Event
dead zone
Attenuation dead zone
E4126LM
1310/1550±20 nm
3 ns to 10 μs
32/30dB
1 m
4 m
E4136LM
1310/1550±20 nm
1625±10nm
3 ns to 10 μs
32/30/30dB
1 m
4 m
E4138LM65
1310/1550/1650±20nm
3 ns to 10 μs
32/30/28dB
1 m
4 m
E4136RLM
1310/1550±20 nm
1625±10nm (with Filtered)
3 ns to 10 μs
32/30/30dB
1 m
4 m
E4117LM
1625±10 nm
3 ns to 10 μs
30dB
1 m
4 m
E4118LM65
1650±20 nm
3 ns to 10 μs
28dB
1 m
4 m
E4118RLM65
1650±20nm (with Filtered)
3 ns to 10 μs
28dB
1 m
4 m
E4126MA
1310/1550±20 nm
3 ns to 20 μs
37/35dB
       <1 m
4.2 m
E4136MA
1310/1550±20 nm
1625±10nm
3 ns to 20 μs
37/35/35dB
      <1 m
4.2 m
E4136RMA
1310/1550±20 nm
1625±10nm (with Filtered)
3 ns to 20 μs
37/35/35dB
     <1 m
4.2 m
E4118RMA65
1650±20nm (with Filtered)
3 ns to 20 μs
33dB
     <1 m
4.2 m
