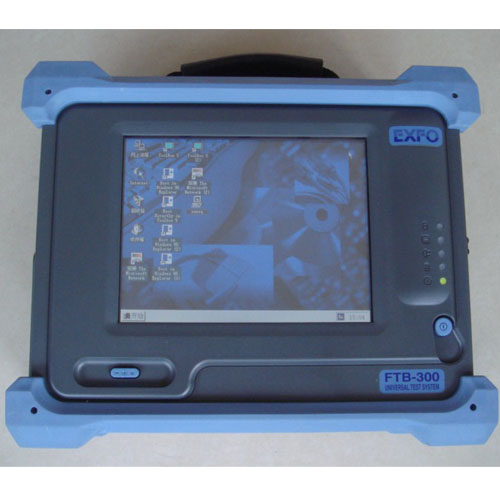

EXFO FTB-300+FTB-7323B-B+FTB-3920 SM OTDR
Manufacturer:
  EXFO
Model:
  FTB-300
Condition:
  Used
Availability:
  Contact us for availability
Price:
  $.00
Description:

   Feature
EXFO FTB-300 UTS Universal Test System

The All-in-One Solution
With the rapid evolution of communication technologies, testing requirements have
become more complex and diversified. Fully adapted to this new reality, The FTB-300 Universal Test System (UTS) provides a simple, yet efficient,way to perform multiple advanced test operations in outside plant installation,maintenance, and troubleshooting.

The unique FTB-300 UTS combines a series of high-performance test modules in a powerful platform. The test set simultaneously houses up to three field-interchangeable modules. Its PC architecture runs the Windows 95 operating system as well as a complete test application software to provide maximum processing capability right where you need it the most: in the field.

The power of a UTS lies in its capability to evolve with technology and your needs;
therefore, the FTB-300 UTS provides you with the widest selection of test modules available.From power readings and OTDR testing to optical switching and optical spectrum analysis, the FTB-300 UTS does it all. And the family of plug-and-play modules continues to grow with the continuous introduction of new test modules.

Modularity Means Flexibility

Customized to your needs
The main advantage of the FTB-300 UTS is that the end user can customize it
to suit the work environment. Field-interchangeable modules allow the operator to modify the test tool capabilities in a matter of seconds, and as many times as required in a days work.

A sound long-term investment
The open architecture of the FTB-300 UTS provides obvious cost advantages since a single test system is shared between many applications.Without changing the platform, the test set can also be modified with new modules or software upgrades to provide the latest technologies at a fraction of the cost. The FTB-300 UTS really reduces the strain on the test tool budget.

A rugged, portable field unit
The FTB-300 UTS is designed to resist the rigors of the worst field conditions as well as stand the test of time. The unit offers shock-proof casing to withstand drops and vibrations. The large, sturdy touchscreen
is resistant to shock,water, dust, and common chemicals. The outershell is waterproof with sealed joints, and door panels protect connectors, ports, and the floppy disk drive. The FTB-300 UTS also complies to all industry standards.


   Details
SPECIFICATIONS
Display
touchscreen, monochrome, 640 x 480 full dot LCD 9.4”
touchscreen, active matrix color, 640 x 480 full dot LCD 8.4” (optional)
Interfaces
serial RS-232 parallel printer
external VGA monitor external keyboard (PS/2)
PCMCIA type II (optional for memory card and fax modem card)
Storage capacity
internal 2.1 GB hard disk drive (over 100,000 OTDR test files)
internal 3.5”, 1.44 MB floppy drive (optional)
Batteries
rechargeable NiMH battery pack (2 batteries)
>4 hours of continuous operation as per Bellcore TR-NWT-001138
Power supply
AC input: 90 V to 250 V, 50/60 Hz
GENERAL SPECIFICATIONS
Temperature
operating -5° to 50°C, 23° to 122°F
storage -20° to 60°C, -4° to 140°F
Relative humidity
0 to 95% max. non-condensing
Size (H x W x D)
22.9 x 30.5 x 10.1 cm, 9 x 12 x 4 in
Weight
4 6.52 kg, 14.35 lb


FTB-7323B-B SM OTDR Module Specification:
Wavelength (nm): 1310/1550± 20
Dynamic range (dB) at 10 μs: 37.5/35.5
Dynamic range(dB) at 20 μs:38.5/37.5
Event dead zone (m): 3/3
Attenuation dead zone (m):10/15
Distance range (km): 1.25, 2.5, 5, 10, 20, 40, 80, 160, 260
Pulse width (ns): 10, 30, 100, 275, 1000, 2500,10000, 20000
Linearity (dB/dB) : ± 0.05
Loss threshold (dB): 0.01
Loss resolution (dB) : 0.001
Sampling resolution (m): 0.08 to 5
Sampling points : Up to 52000
Distance uncertainty: ± (1 m + 0.0025 % x distance)
Measurement time: User-defined (60 min maximum)
Real-time refresh: < 1 s
Stable source output power (dBm) : –5
Visual fault locator (optional): Laser, 650 nm ± 10 nm
