Anristu MT9090A Series OTDR Battery
Manufacturer:
  Anristu
Model:
  MT9090A
Condition:
  New
Availability:
  5 pcs
Price:
  $100.00
Qty:
Description:

   Feature

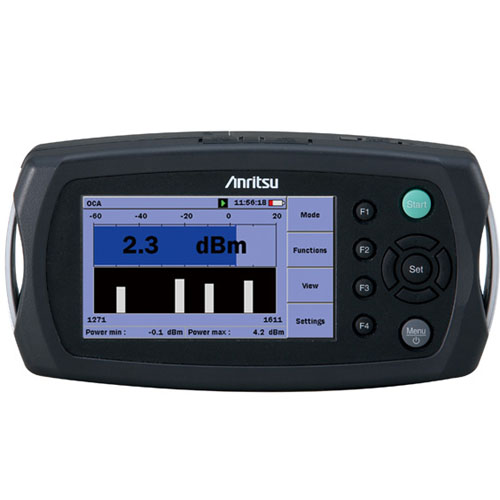

MT9090A Network Master Series

MU909014A/A1/B/B1/C/C6
MU909015A6/B/B1/C/C6
μOTDR ModuleTM
1310 nm/1550 nm for Installation,
1625 nm & 1650 nm for Maintenance,
1310 nm/1550 nm plus 1625 nm or 1650 nm

Field Optical Testing Redefined!
MT9090A with MU909014x/15x Overview
There are many handheld OTDRs on the market that appear to be a good value until they are put into action and the user quickly finds out that they lack the performance needed to install and maintain today’s networks.
The new MU909014x/15x μOTDR Module series for the MT9090A Network Master platform from Anritsu finally addresses this need by providing all of the features and performance required for installation and maintenance of optical fibers in a compact, modular test set. The MT9090A represents an unmatched level of value and ease of use, while not compromising performance. Data sampling of 2
centimeters, dead zones of 0.8-meter and dynamic range up to 38 dB ensure accurate and complete fiber evaluation of any network type – premise to access, metro to core…including PON-based FTTx networks featuring up to a 1 × 64 split.
The MT9090A with MU909014x/15x module represents a new era in optical fiber testing!
Key Features
• Tri-wavelength OTDR for both installation and maintenance
  (1310 nm/1550 nm plus filtered 1650 nm or 1625 nm)
• Built-in PON Power Meter, Loss Test Set and Light Source functions
• High-end OTDR performance in a pocket-size package with unique battery
   operation
• Full AUTO mode simplies operation, no OTDR knowledge needed
• Complete PON testing through splitters up to 1 × 64

A Truly Revolutionary OTDR!
Introducing the first handheld OTDR that does not compromise performance – the new μOTDR from Anritsu. With performance that rivals traditional OTDRs that are four times the size and more than double the price, the Network Master MT9090A μOTDR has created a new class of test instruments. It features 2 cm resolution for accurate mapping of events, dead zones of 0.8-meter (2.6-feet) and a dynamic
range of up to 38 dB – enough to test over 150 km (90+ miles). The MT9090A μOTDR also takes portability to a new level by being the first handheld OTDR that truly fits in the palm of your hand.

Complete Testing Tool - Premise to Core
With a dynamic range of up to 38 dB, the μOTDR evolves far beyond the premise/access applications that other handheld OTDRs service. Metro links can be tested with lower pulsewidths which provides greater detail and better resolution while long haul fibers up to 175 km (108 miles) can also be completely evaluated.
FTTx and PON Ready
With splitter-based fiber-to-the-x (FTTx) deployments becoming more popular, the need for test equipment to thoroughly test and maintain them has risen. The μOTDR series features the ability to test up to a 1 × 64 split completely from end-to-end and with high resolution.
Full Auto Operation
To ensure easy operation and accurate results for all levels of users,the MT9090A μOTDR can be configured to automatically select all test parameters. The user simply presses the “Start” button and within a few seconds has a complete, easy to read summary of the fiber under test.
0.8-m Dead Zone for Short Fiber Analysis
With 0.8-meter dead zones, the MT9090A is perfect for evaluating central office, FTTx and intra building cables.
Fast Real Time Sweeping
The MT9090A μOTDR features real-time updates as quickly as 0.25 seconds. This is useful for connector and splice optimizations as well as verifications of parameter selection.
Portable
The MT9090A μOTDR takes portability to a whole new level. With dimensions of just 19 cm × 9.6 cm × 4.8 cm (7.5” × 3.8” × 1.9”) and a weight of only 700 g (1.54 lbs.), the μOTDR is the smallest and lightest OTDR on the market. With its lightweight design and user friendly dimensions, the MT9090A is perfect for the outside plant environment and can easily be managed with one hand. The standard soft case with shoulder strap further increases portability when traveling from the truck to the testing site.
Rugged
With no fans or vents to allow dust and moisture to enter the unit, the MT9090A was designed for the challenging outside plant environment.
Modular Design
The MT9090A features a modular design allowing modules to be easily changed in the field. Users can interchange different OTDR modules or perform other optical network testing such as optical channel analysis with the available CWDM channel analyzer module or 10/100/1000 MB Ethernet testing on optical or electrical links.
Operation is quite similar between modules so the user is immediately familiar with operation.
4.3-inch Wide Screen Display for Easy Viewing
The high resolution, full color, 4.3-inch wide screen display is the perfect format for viewing OTDR results. It also provides excellent readability both indoors and outdoors.
Integrated Launch Fiber
To further simplify testing, the MU909014x/15x series is the only handheld OTDR that features an integrated launch cable. A ten meter (30 feet) fiber is built-in so initial fiber connections can be verified without the need for additional patchcords or launch fibers.


   Details
MT9090A Mainframe
Dimensions and Mass
190 (W) × 96 (H) × 48 (D) mm (7.5” × 3.8” × 1.9”) (including Mainframe and Module)
<700 g (1.54 lbs.) (including Mainframe, Module and Standard battery)
Display
4.3-inch TFT Color LCD (480 × 272 pixels, Transmissive)
Interface
USB 1.1, Type A × 1 (memory), Type B × 1 (USB mass storage)

μOTDR Module Common (MU909014A/A1/B/B1 and MU909015B/B1)
Fiber Type
10 μm/125 μm SMF (ITU-T G.652)
Optical Connector
FC/SC/DIN adapter are changeable
Distance Range
0.5, 1, 2.5, 5, 10, 25, 50, 75, 125, 250 km (IOR=1.500000)
Pulse Width
5, 10, 20, 50, 100, 200, 500 ns, 1, 2, 5, 10, 20 μs
Linearity
Which ever is greater ±0.05 dB/dB or ±0.1 dB
Return Loss Measurement Accuracy
±2 dB
Distance Measurement Accuracy
±1 m ±3 × Measurement distance × 10–5 ±Marker resolution (excluding IOR uncertainty)
Data Storage
Internal memory: 40 MB (<1,000 traces)
External (USB Memory): 1GB (<30,000 traces)
IOR Setting
1.3000 to 1.7000 (0.0001 steps)
Units
km, m, kft, ft, mi
Other Functions
Integrated launch fiber: 10 m (30ft)
Connection check: Automatic check of OTDR to FUT connection quality
Live fiber detect: Verifies presence of communication light in fiber
Real time sweep: <1 sec (typ.)
Language
User selectable (English, Simplified Chinese, Traditional Chinese, Korean, Japanese, French, German, Italian, Spanish, Polish, Portuguese, Finnish, Danish, Swedish, Spanish (Latin America) and Russian)
Power Supply
9 V (dc), 100 V (ac) to 240 V (ac), Allowable Input voltage range: 90 V (ac) to 264 V (ac), 50 Hz/60 Hz
Fiber Event Analysis
Automatic, Displayed in table format based on user defined PASS/FAIL thresholds
Loss Measurement Modes
2-point loss, Splice loss, dB/km Loss LSA, ORL, Event
OTDR Trace Format
Telcordia universal (.SOR) issue 2 (SR-4731)
Battery
NiMH (Standard battery), NiMH (AA Type), Alkaline Dry Battery (AA Type)∗2
Operating time (Standard battery): 8 hours (typ.)∗3, Telcordia GR-196-CORE Issue2, September 2010
Recharging time: <4 hours (typ.)


MU909014A/A1/B/B1 and MU909015B/B1 μOTDR Module

Model name
MU909815B/B1-056
MU909814B/B1-056
MU909014A/A1-053
MU909014A/A1-054
Center Wavelength
1310/1550±20 nm
1310/1550±20 nm
1625±15 nm
Dynamic Range∗
PW = 20 μs
37 dB/36 dB
32.5 dB/31 dB
32.5 dB
PW = 500 ns
28 dB/26 dB
24.5 dB/23 dB
24.5 dB
24 dB∗5
Dead Zone
(IOR=1.500000)
Fresnel: ≤1 m
Backscatter: ≤5 m
Number of Sampling Points
<125,001 pts (Course: <6,251 pts, Medium: <25,001 pts, Fine: <125,001 pts)
Sampling Resolution
5 cm (min.)
Testing Modes
OTDR (Full automatic, Manual, Real time), Power Meter, [Visible Fault Locator (Option)], [Video Inspection Prove (Option)]
Power Meter (only for MU909014B/B1/15B/15B1)
Please refer to the spec “Power Meter”
Not applicable
Visible Fault Locator (only for MU909014A1/B1/15B1)
Connector: 2.5 mm universal
Wavelength: 650±15 nm (CW, +25°C)
Output power: 0±3 dBm (CW, +25°C)
Modulation: CW, 1 Hz
Environment
Operating temperature and humidity: –5 to +40°C, <80 % (no condensation)
Storage temperature and humidity: –20 to +60°C, <80 % (no condensation)
Vibration: MIL-T-28800E Class 3, Dust and Drip proof: IP51
Laser Safety∗
IEC Pub 60825-1: 2007 Class 1, IEC Pub 60825-1: 2007 Class 1M, IEC Pub 60825-1: 2007 Class 3R (VLD Option),21CFR1040.10
