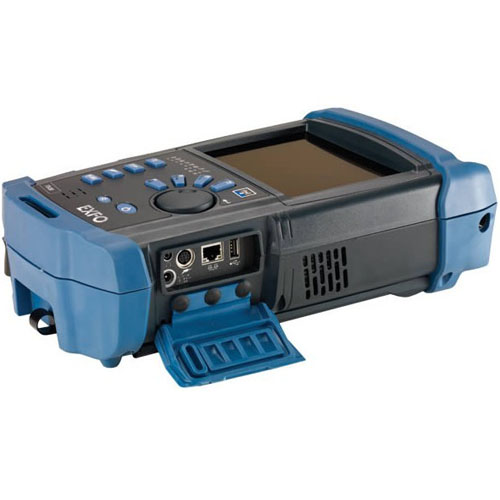

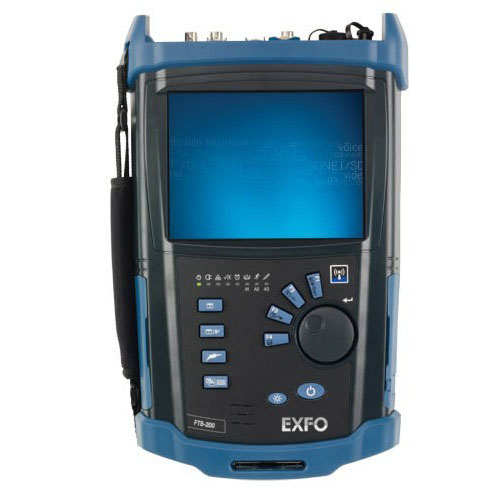

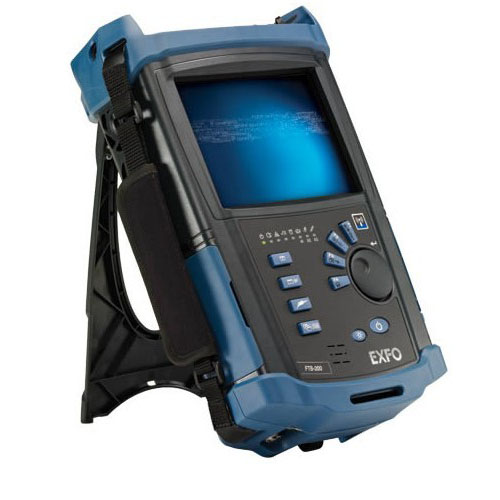

The FTB-200 V2 delivers the best performance on the market for optical, Ethernet and SONET/SDH testing.

KEY FEATURES
Intel ATOM processor with Windows Embedded Standard for maximized productivity and unique versatility
Flexible connectivity with USB, mobile, Wi-Fi and Bluetooth capabilities
Compatible with 11 families of modules for multiple field testing applications
› CWDM network characterization at eight wavelengths
› 40G and ROADM commissioning with an optical spectrum analyzer
› Multiservice testing with a next-generation SONET/SDH analyzer
› Fiber characterization and construction with OTDR,loss, dispersion and multitest modules
› Business service activation with OTDR and Ethernet test modules
› Carrier Ethernet testing from 10 Mbit/s to 10 Gbit/s

ONE PLATFORM, OVER 30 MODULES
Optimized for all phases of the network lifecycle, the FTB-200 v2 houses any of EXFO’s FTB one- or two-slot modules to meet your evolving needs. Configure your platform by combining optical, transport and datacom modules to cover a wide range of applications. Offering power, speed and modularity in a compact format, the FTB-200 v2 is the perfect tool for the field.

SPECIFICATIONS
Display	Touchscreen, color, 640 x 480 TFT 163 mm (6.5 in)
Interfaces	Three USB 2.0 ports
	RJ-45 LAN 10/100/1000 Mbit/s
	Fiber inspection probe connector port (video)
	Built-in Bluetooth and Wi-Fi (optional)
Storage	8 GB internal memory (flash)
	16 GB USB stick (optional)
Battery	Rechargeable Li-Ion batteries
	8 hours of operation as per Telcordia (Bellcore) GR-196
Power supply	AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max
	output: 24 VDC, 90 W
Computer	Intel ATOM processor
	Windows Embedded Standard
GENERAL SPECIFICATIONS
Temperature	Operating –5 oC to 50 oC (23 oF to 122 oF)
	Storage –40 oC to 70 oC (–40 oF to 158 oF)
Relative humidity	0 % to 95 % non-condensing
Size (H x W x D)	322 mm x 197 mm x 109 mm
Weight	2.1 kg (4.6 lb)
Vibration	<1.5 g at 10 Hz to 500 Hz (on three main axes)
Mechanical shock	<760 mm on six sides and eight main edges (compliant to GR-196-CORE)

FTB-7600E-0034B = SM OTDR module, 1550/1625 nm (9/125 μm)
