Home OTDRs >> OTDR >> EXFO AXS-110-023B-04B 1310/1550/1625nm SM OTDR
OTDRs

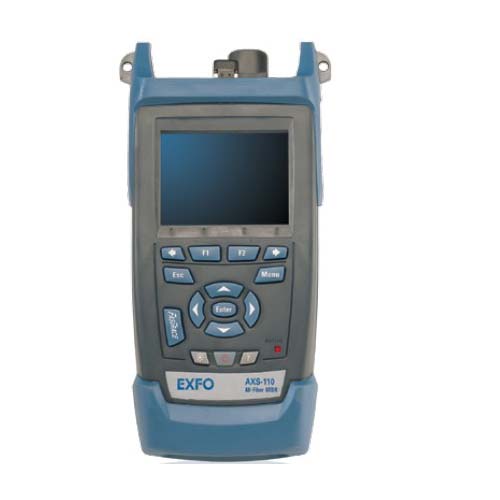

EXFO AXS-110-023B-04B 1310/1550/1625nm SM OTDR
Manufacturer:
  EXFO
Model:
  AXS-110-023B-04B
Condition:
  New
Availability:
  Contact us for availability
Price:
  $.00
Qty:
Description:

   Feature
AXS-110 All-Fiber OTDR
A powerful handheld OTDR unit designed for splitter characterization in FTTx networks; can be configured as a quad unit with both singlemode and multimode wavelengths.

Key features
Event dead zone: 0.8 m
Wavelengths: 850/1300/1310/1490/1550/1625 nm
Dynamic range: up to 37 dB
Battery autonomy: 8 hours

Applications
FTTx/MDU PON network testing
LAN/WAN testing
Private network testing

Technical specifications
Wavelengths (nm)
850/1300/1310/1490/1550/1625
Dynamic range (dB)
24/25/37/33/35/37
Pulse width (ns)
Multimode: 5, 10, 30, 100, 275, 1000
Singlemode: 5, 10, 30, 100, 275, 1000, 2500, 10000
Event dead zone (m)
0.8
Attenuation dead zone (m)
3.5/4.5/4/4.5/4.5/4.5
Linearity (dB/dB)
±0.03
Loss threshold (dB)
0.01
Loss resolution (dB)
0.01
Sampling resolution (m)
Multimode: 0.08 to 2.5; singlemode: 0.08 to 5.0
Sampling points
Up to 64000
Distance uncertainty (m)
±(0.75 + 0.0025 % x distance + sampling resolution)
Distance range (km)
Multimode: 0.1 to 40; singlemode: 0.65 to 260
Typical real-time refresh (Hz)
4
Memory capacity
500 traces
Measurement time
User-defined
Stable source output power  (dBm)
Multimode: –1.5; singlemode: –7.5
Visual fault locator (optional)

Laser, 650 nm ± 10 nm
CW typical Pout of 1.4 mW open beam

General Specifications
Size (H x W x D)
250 mm x 125 mm x 75 mm
Weight
1 kg
Temperature
operating –18 °C to 50 °C, storage –40 °C to 70 °C
Relative humidity
0 % to 95 % non-condensing
Power
Li-ion batteries; 8 hours of continuous operation as per Bellcore, TR-NWT-001138
Warranty (years)
1
